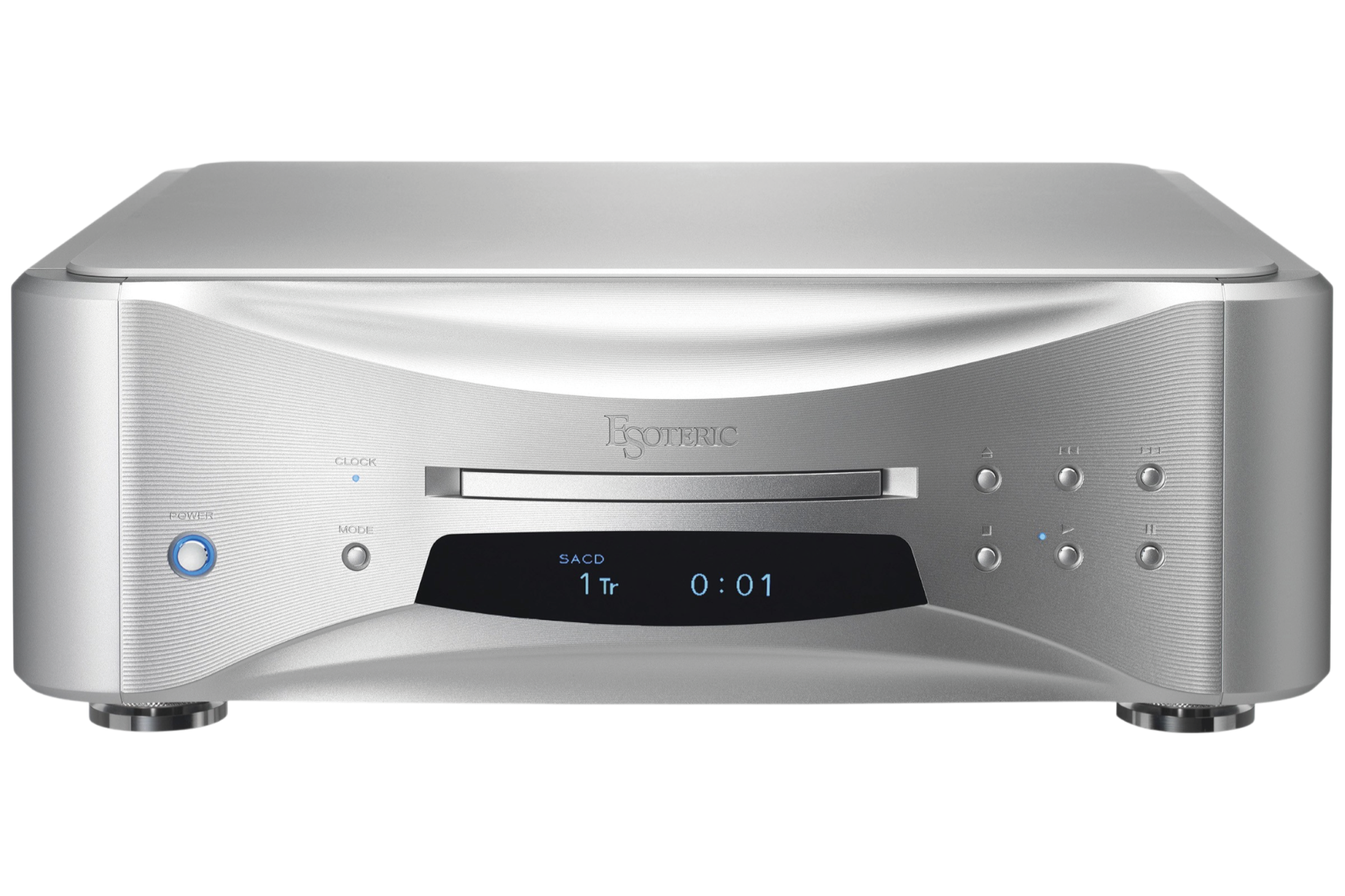

Grandioso K1X SE Super Audio CD Player

Highest Rigidity & Heaviest Construction in the 30+Year History of VRDS

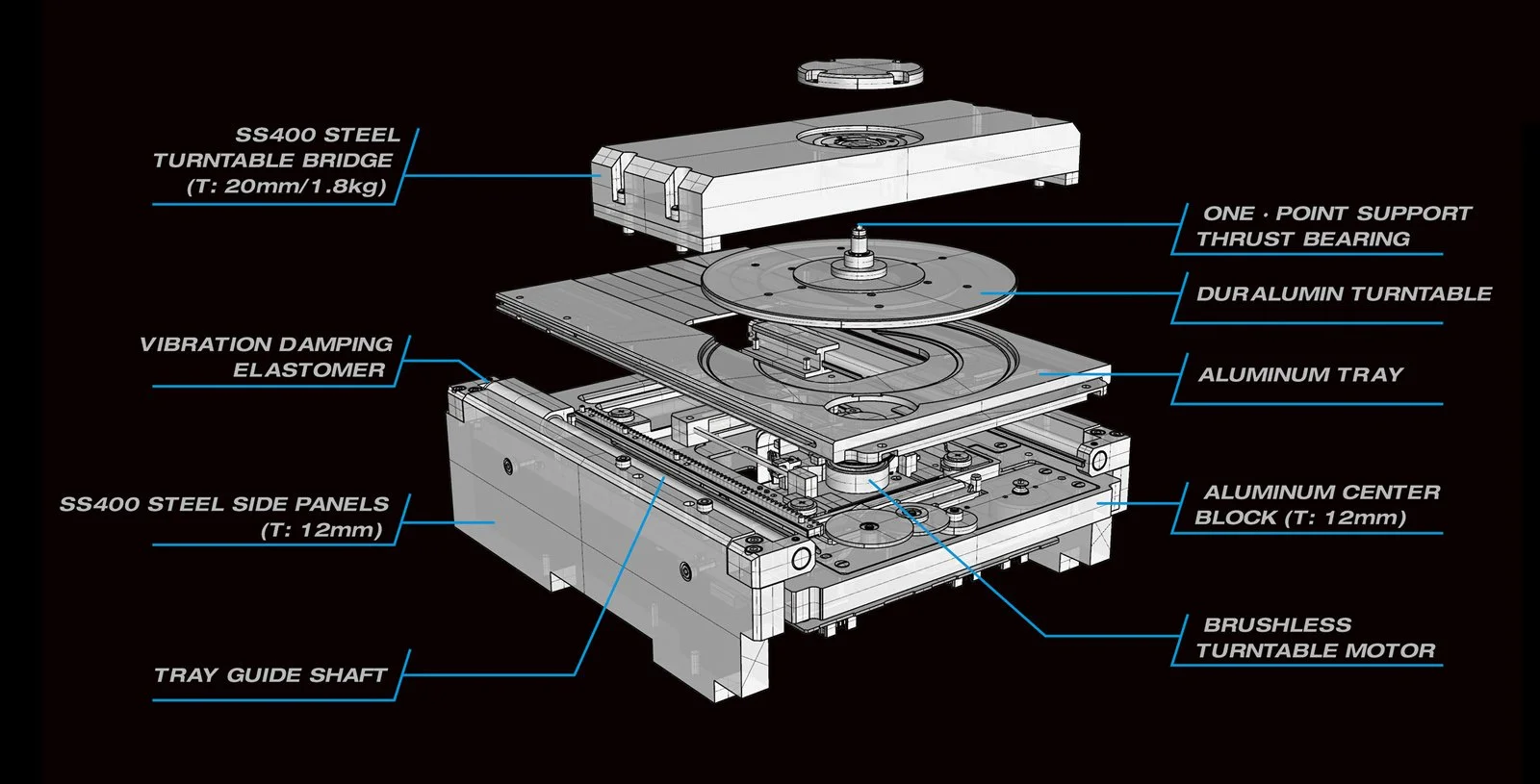

The new VRDS-ATLAS platform boasts unprecedented mechanical perfection and superlative audio quality, with heavyweight construction that is fully 127% heavier than previous iterations (6.6kg for the mechanism alone, and 13.5kg including its base). This highest rigidity and weight in the history of VRDS mechanisms has the effect of greatly reducing any and all vibration that could adversely affect audio quality. The transport's larger new side panels and bridge are all formed of SS400 steel, and its turntable is made from duralumin, which is renowned for its excellent sound quality. Also, its spindle features a newly designed thrust bearing system, for a friction-free one-point spindle support system that ensures smooth, noiseless turntable rotation.

Wide, Low Center-of-Gravity Design

Esoteric’s impressive VRDS-ATLAS is the quietest and most elegant transport in the history of VRDS. The key to achieving this was a resolute focus on mechanical grounding technology that more effectively reduces vibration.
Adopting a wide & low-profile design for the entire mechanism helped achieve a lower center-of-gravity, and relocating the turntable motor to below the turntable from its previous position above the bridge dramatically shortened the route for grounding vibration and reducing mechanical noise. Tray hollowing has also been minimized for increased rigidity, and special stoppers made from vibration-absorbing elastomer cancel out resonance when the tray is stored.

Chassis Construction and Parts Layout

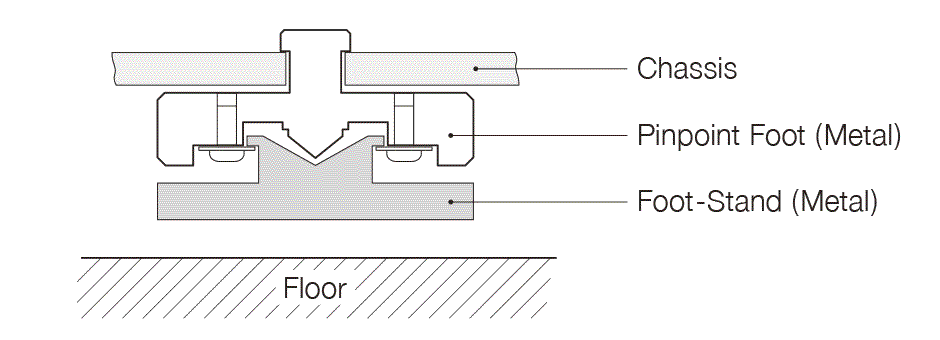

The VRDS-ATLAS transport mechanism is centered and mounted on a 5mm thick steel base chassis. This effectively suppresses vibration from the transport mechanism. The chassis interior has a double-layer structure, with audio boards mainly on the top layer and power circuits and transformers on the bottom layer to prevent magnetic flux leakage and vibration, and to minimize power supply wiring. Esoteric’s original Pinpoint foot*, which integrates a spike and saucer, has been replaced with a new foot that is not bolted to the lower chassis, but is held in place by the weight of the chassis when installed. By avoiding the stress concentration caused by screwing the Pinpoint foot body into the large surface area of the lower chassis, a more open sound is created.
*Patent JP4075477 / JP3778108

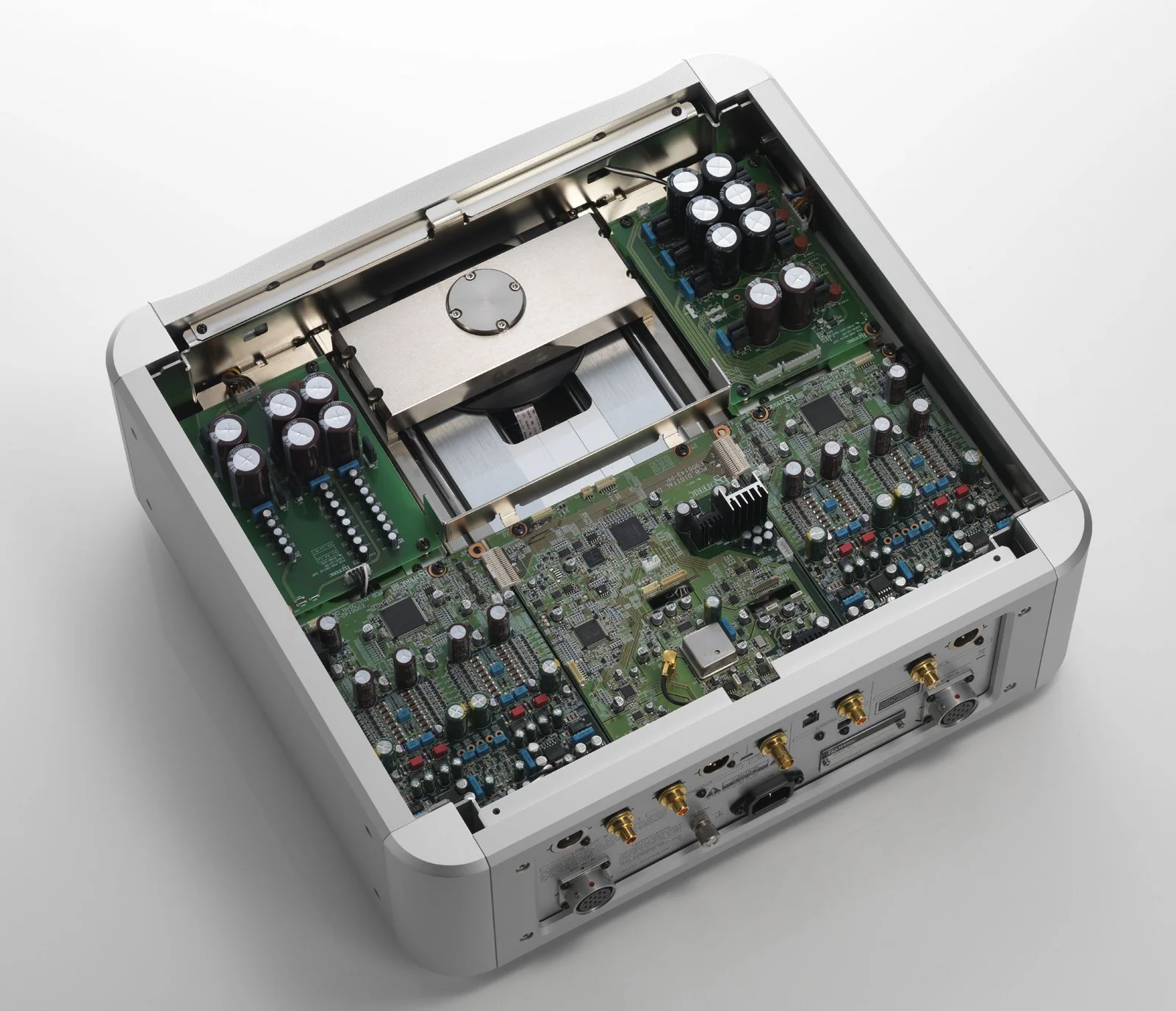

Upper Section of the Grandioso K1X SE

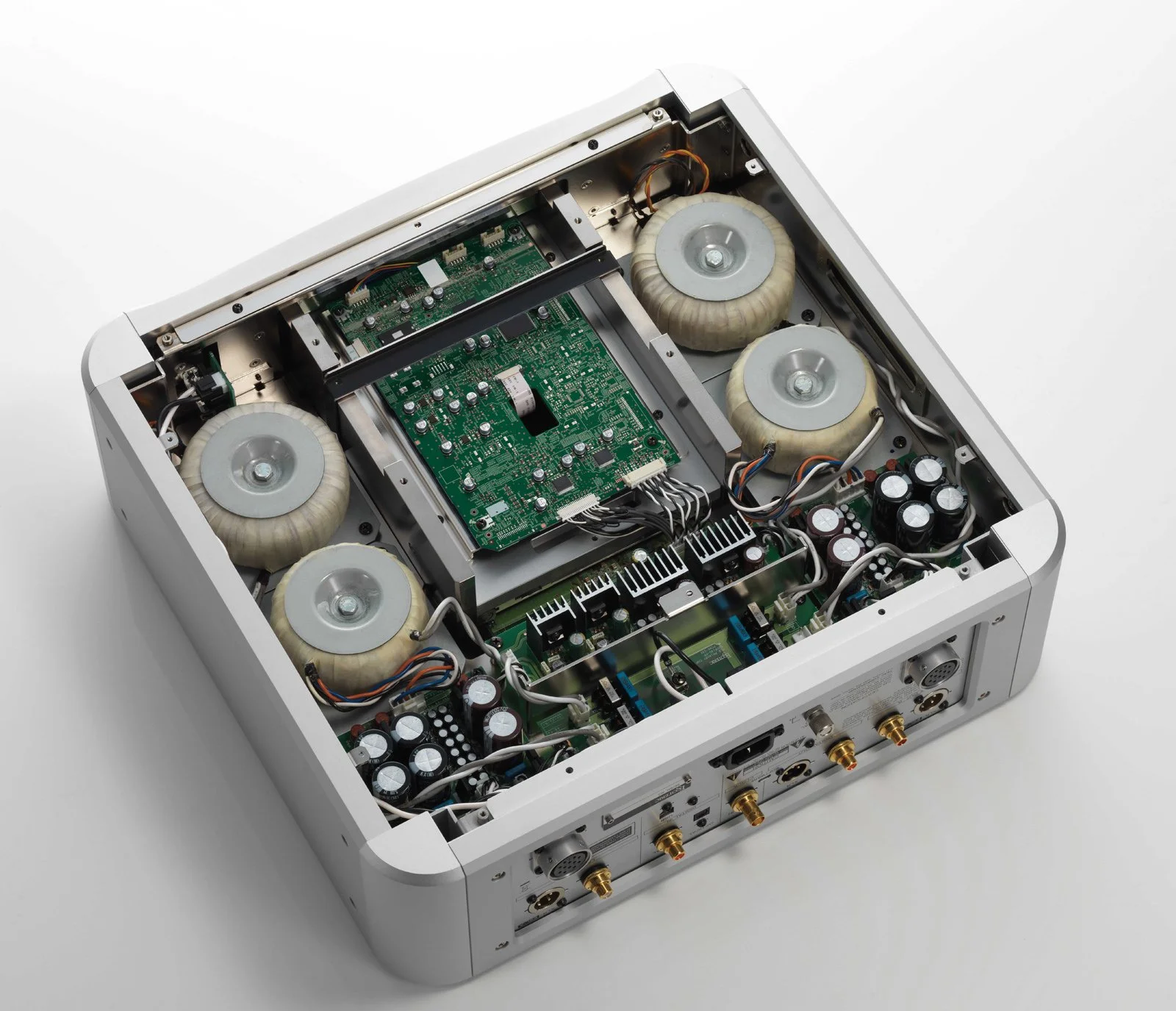

Lower Section of the Grandioso K1X SE

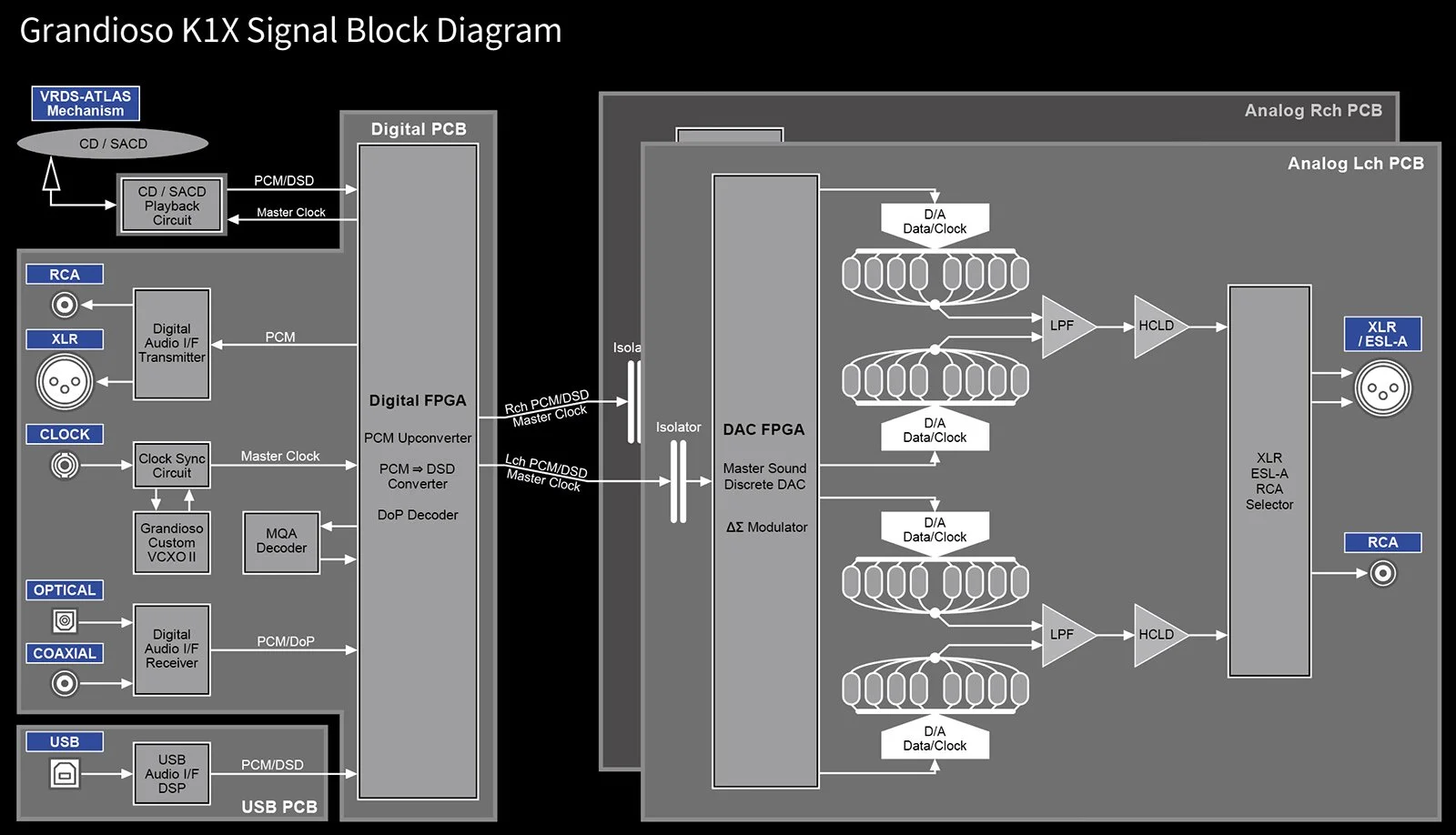

Master Sound Discrete DAC
Bringing Out All the Dynamics and Energy of Music.

Unattainable by integrated chips, our goal was to assemble carefully selected and tested discrete components into a complete circuit that could perfectly reproduce all the dynamics and energy of music. Our top engineering teams put their pride on the line to design and produce a quality of sound that can only be found in the “Master Sound Discrete DAC” discrete D/A converter.

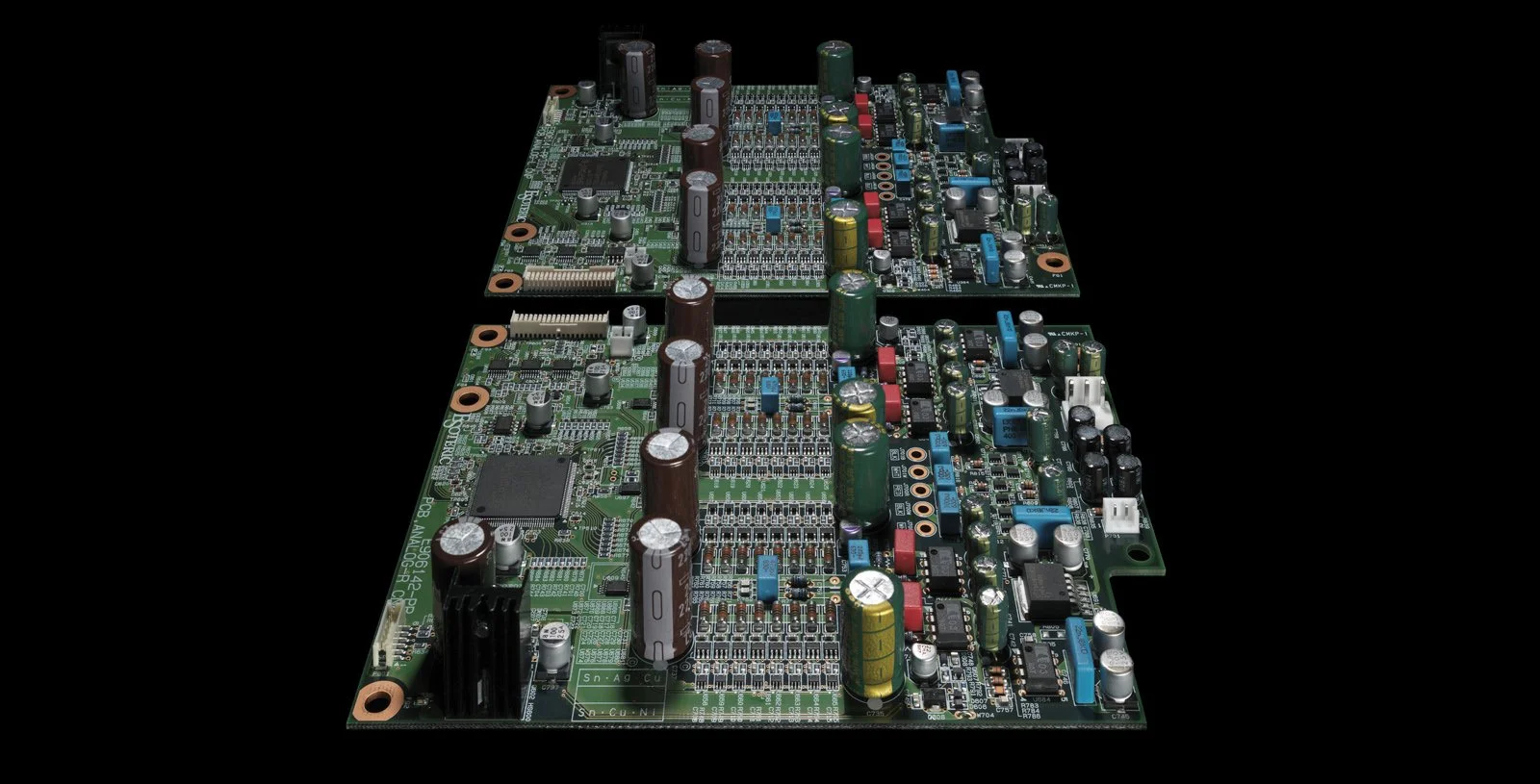

Upgraded with IDM-01 and Other Quality Parts

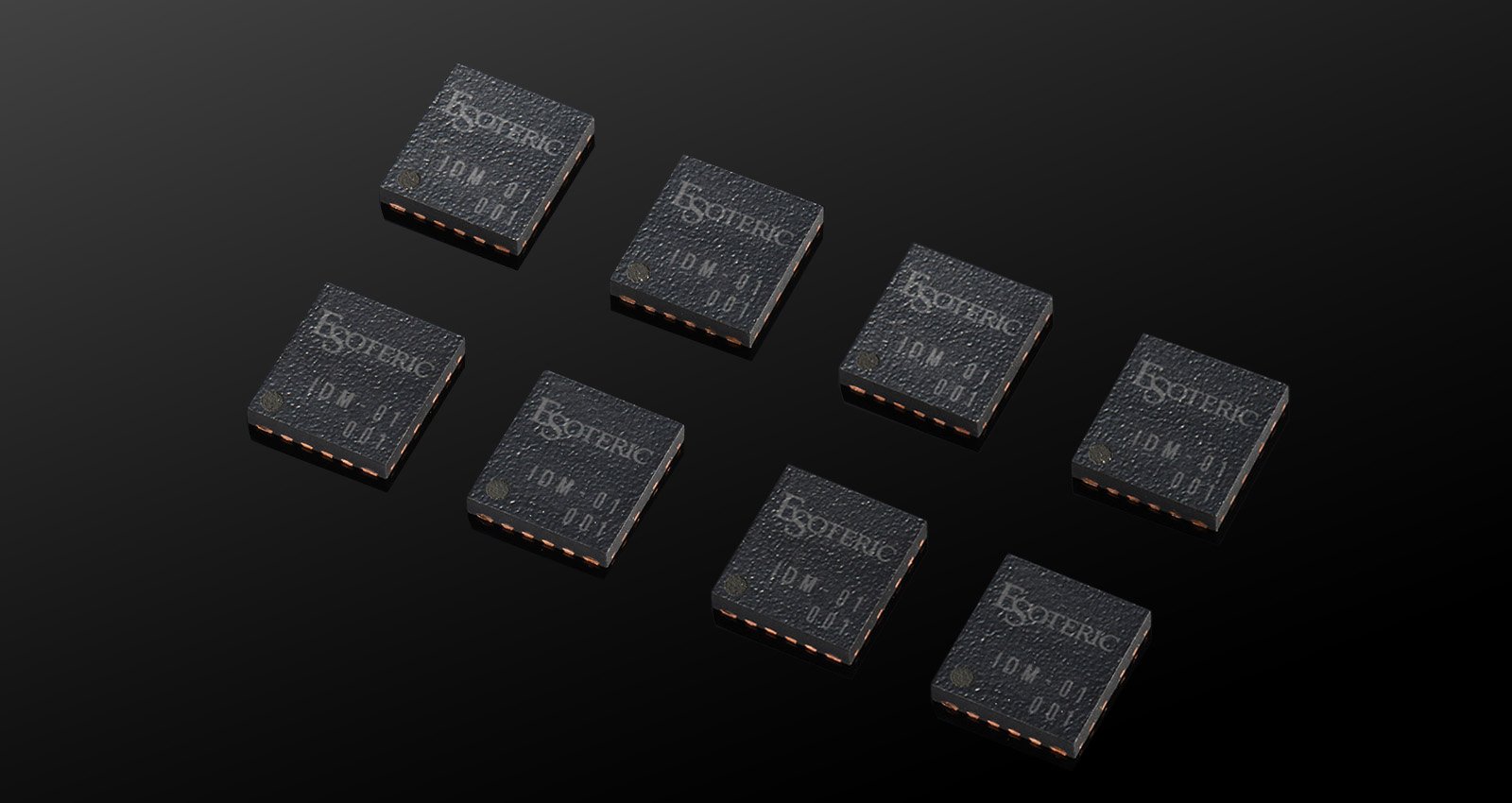

In the new SE model, the discrete parts of the analog circuitry on the DAC board have been refreshed for even better sound quality. The amplifier element is the original "Integrated Discrete-Amplifier Module IDM-01". The materials, circuit patterns, and layout have been carefully studied by Esoteric's engineers as if designing an amplifier with a discrete configuration, and the extremely short signal path that takes advantage of integrated circuits amplifies the vibrancy of music in a dynamic and subtle way. The IDM-01 and other analog parts, such as analog filter resistors and capacitors, have been carefully selected to achieve a more vivid live sound, improved audible dynamics, and a more organic texture.

Unique Esoteric-HCLD* Output Buffer Circuit
with Enhanced Current Transmission

The Esoteric-HCLD output buffer amplifier boasts an amazingly high-speed slew rate (response speed) of 2,000V/µs. Current transmission and speed—the most important factors for an analog output circuit—have been pushed to the limits to reproduce the reality of music with a dynamic range that is truly breathtaking.
*HCLD: High Current Line Driver

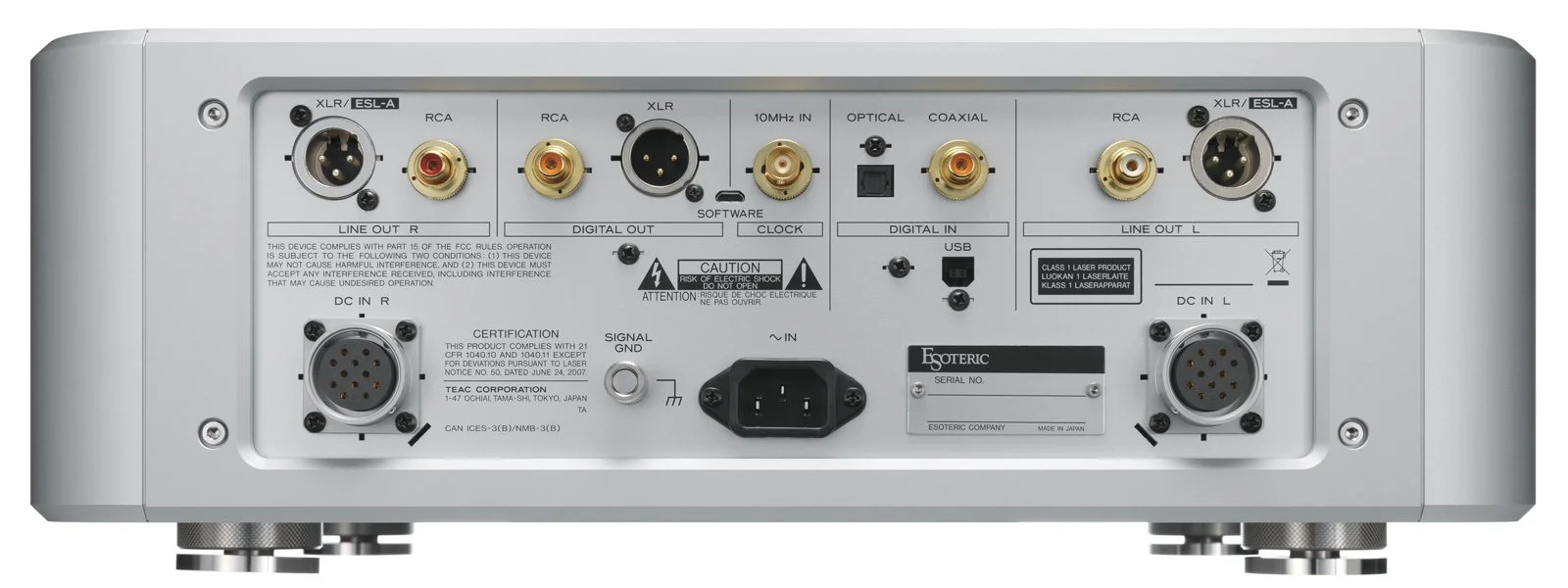

High-Quality ES-Link Analog Current Transmission

In addition to its XLR and RCA amplifier line connections, the K1X SE also features the ES-Link Analog method of current transmission. Taking full advantage of the HCLD buffer circuit's powerful current supply makes the K1X SE less susceptible to the detrimental effects of impedance on the signal route. It also enables a more powerful signal transmission, fully driving connected compatible devices.

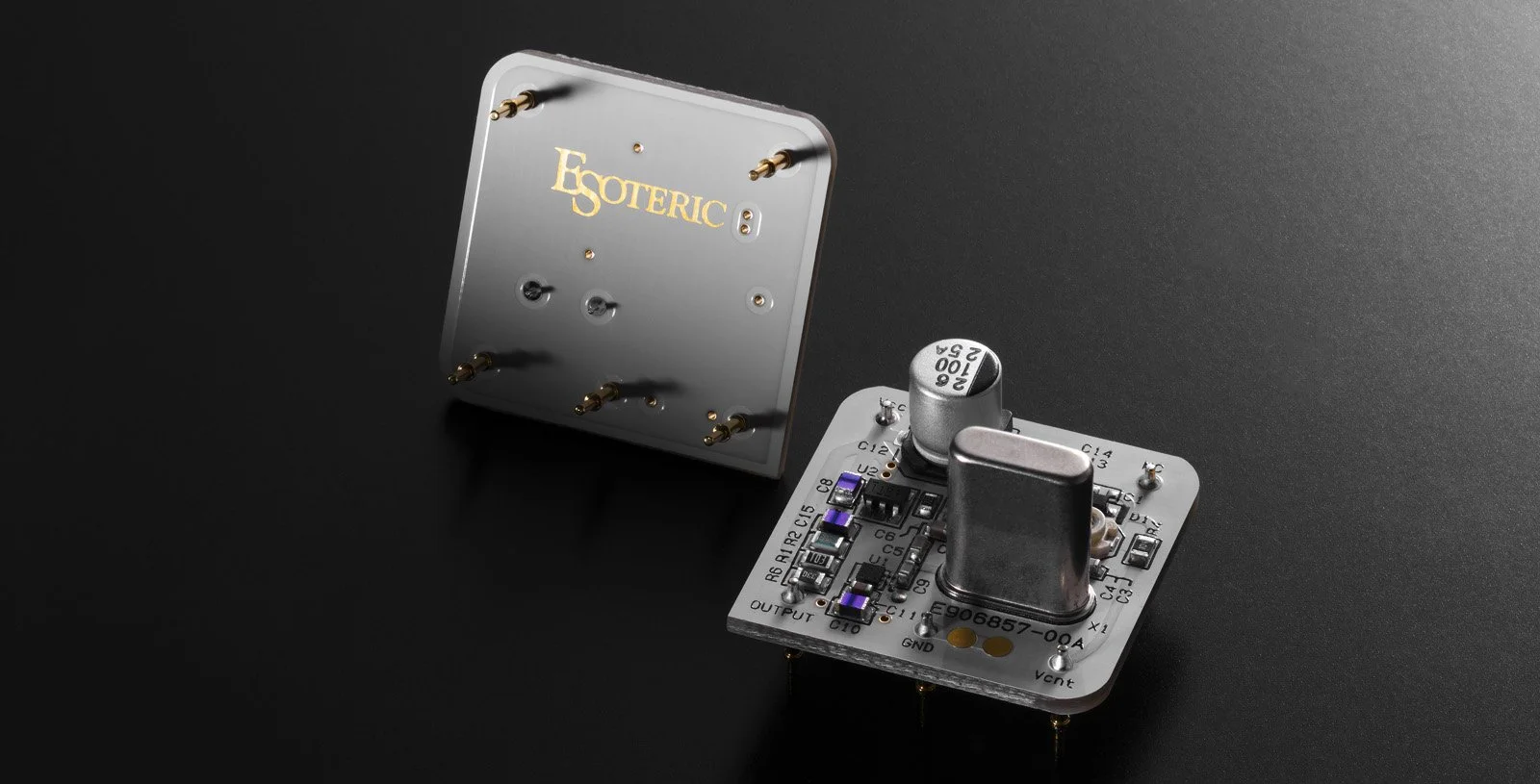

Master Sound Discrete Clock for Digital Player

It is no exaggeration to say that the clock circuitry is the biggest key to high sound quality in digital music reproduction. For its flagship master clock generator Grandioso G1X, Esoteric has perfected its own in-house manufactured OCXO clock module, the Master Sound Discrete Clock. The G1X's unique discrete circuitry has been highly acclaimed for its superior musical expressiveness, creating a buzz in the world of high-end audio that has traditionally been described only in terms of technical specifications.

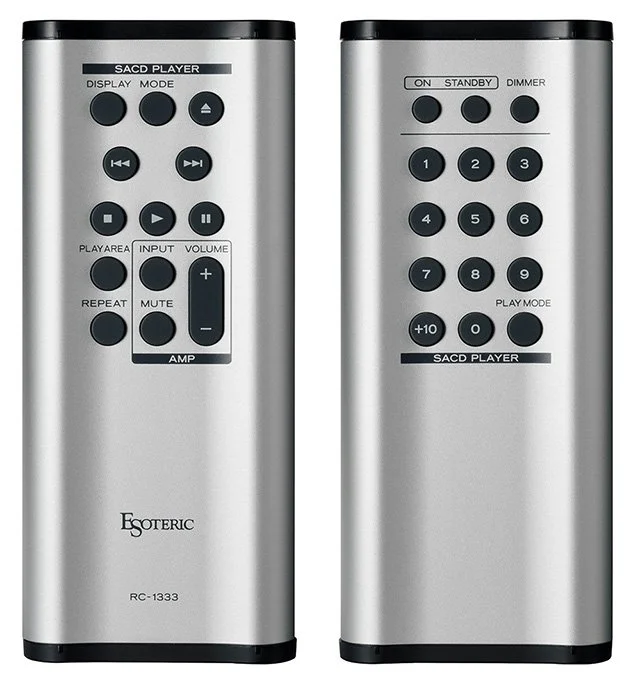

Double-Face Remote Control

A compact and simple remote control is included that can also operate Esoteric amplifiers. The functional design features buttons used for each operation scenario on both sides of the remote control, and the smartphone-sized aluminum body, which fits comfortably in the hand, is achieved through advanced metal processing. Esoteric’s new approach is a design that allows you to experience thoughtful operability and craftsmanship every time you pick it up.
