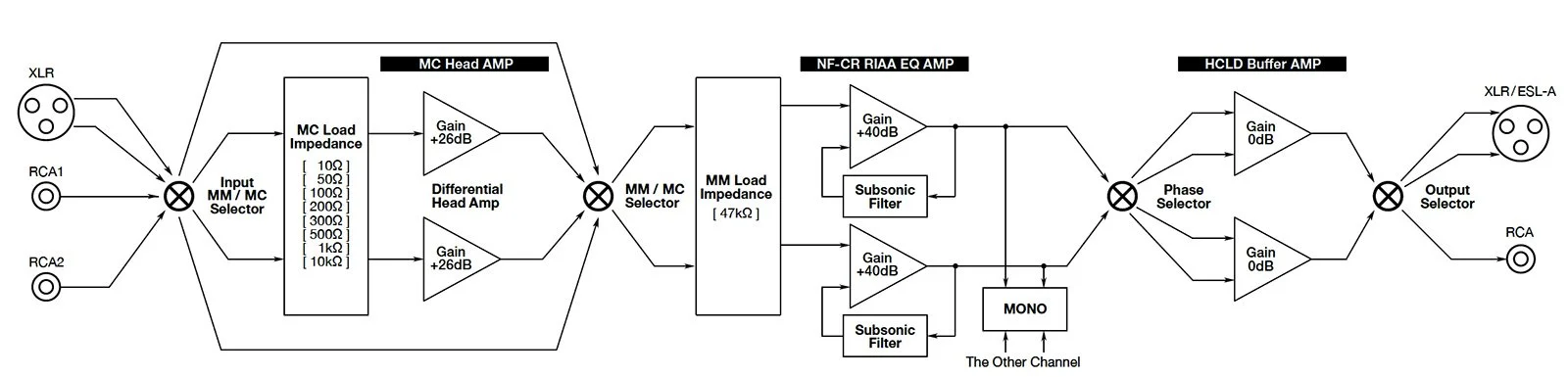

Fully Balanced Circuit Design

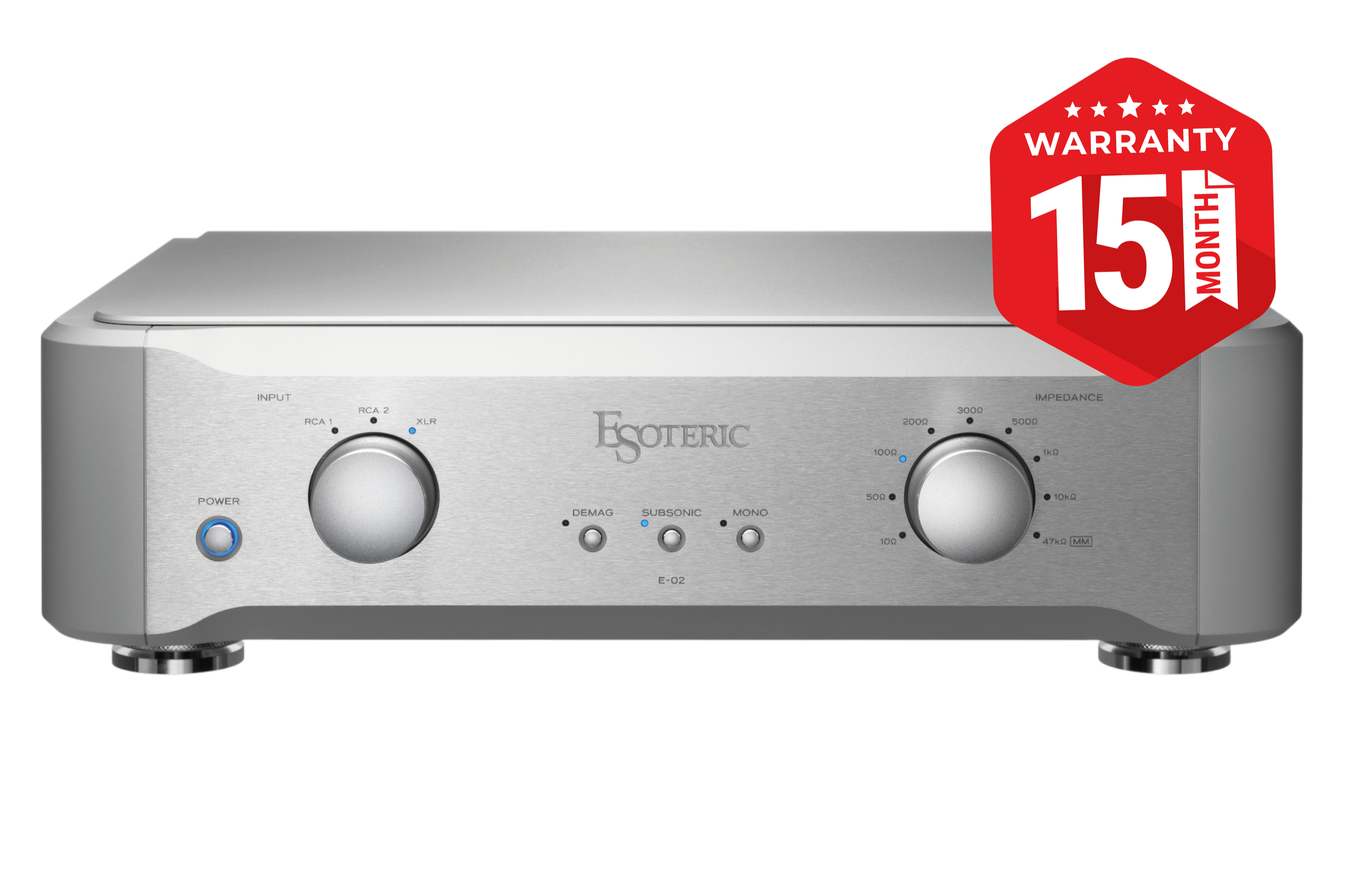

The E-02 is a fully balanced phonostage preamplifier that features fully balanced circuits from the input stage right through to the final output stage. It is perfectly designed for handling the extremely low level signals from a MC cartridge, minimize noise interference and powerfully amplify signals with low impedance to bring the very best sound out of your beloved MC cartridge collection.

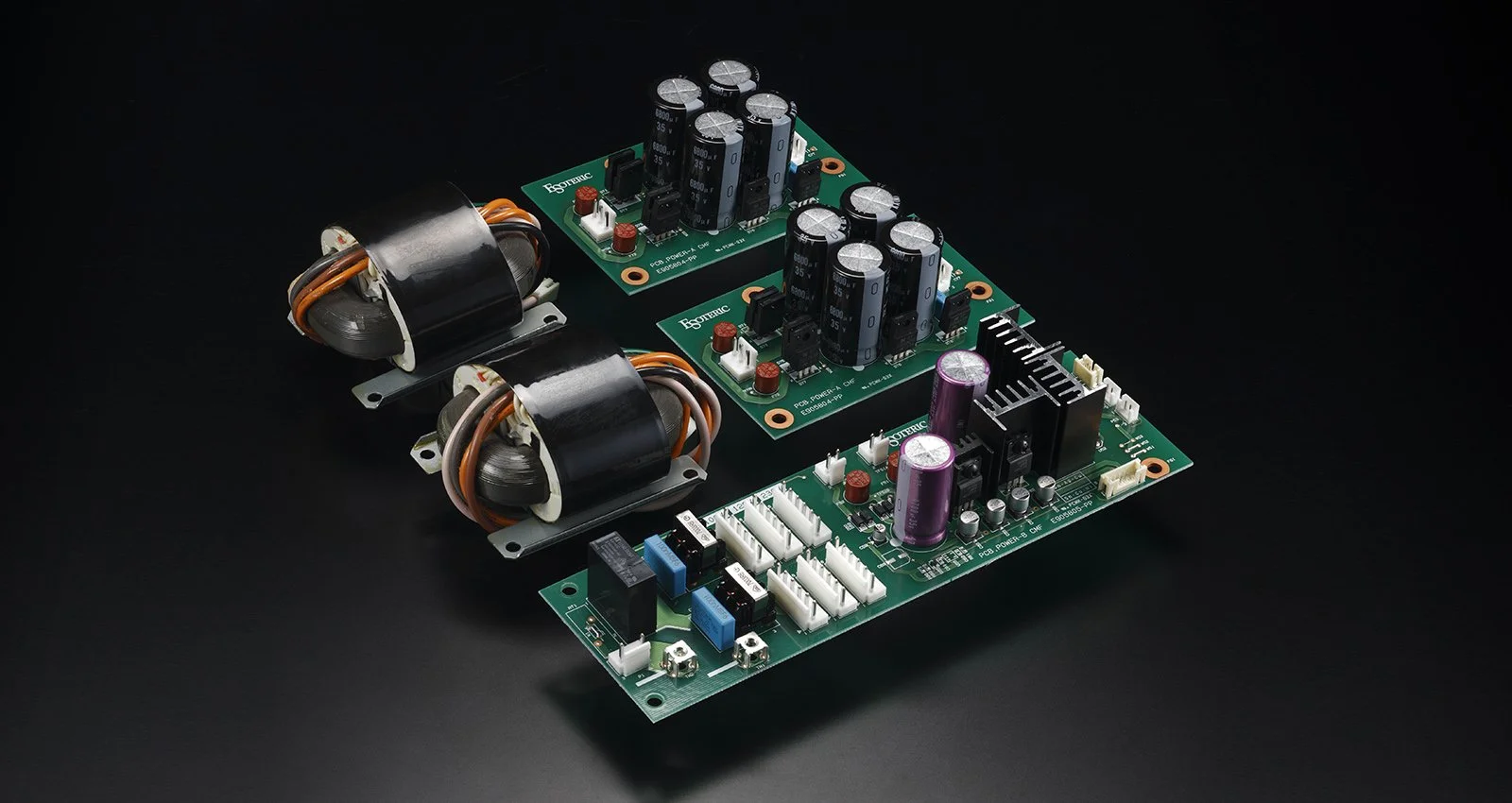

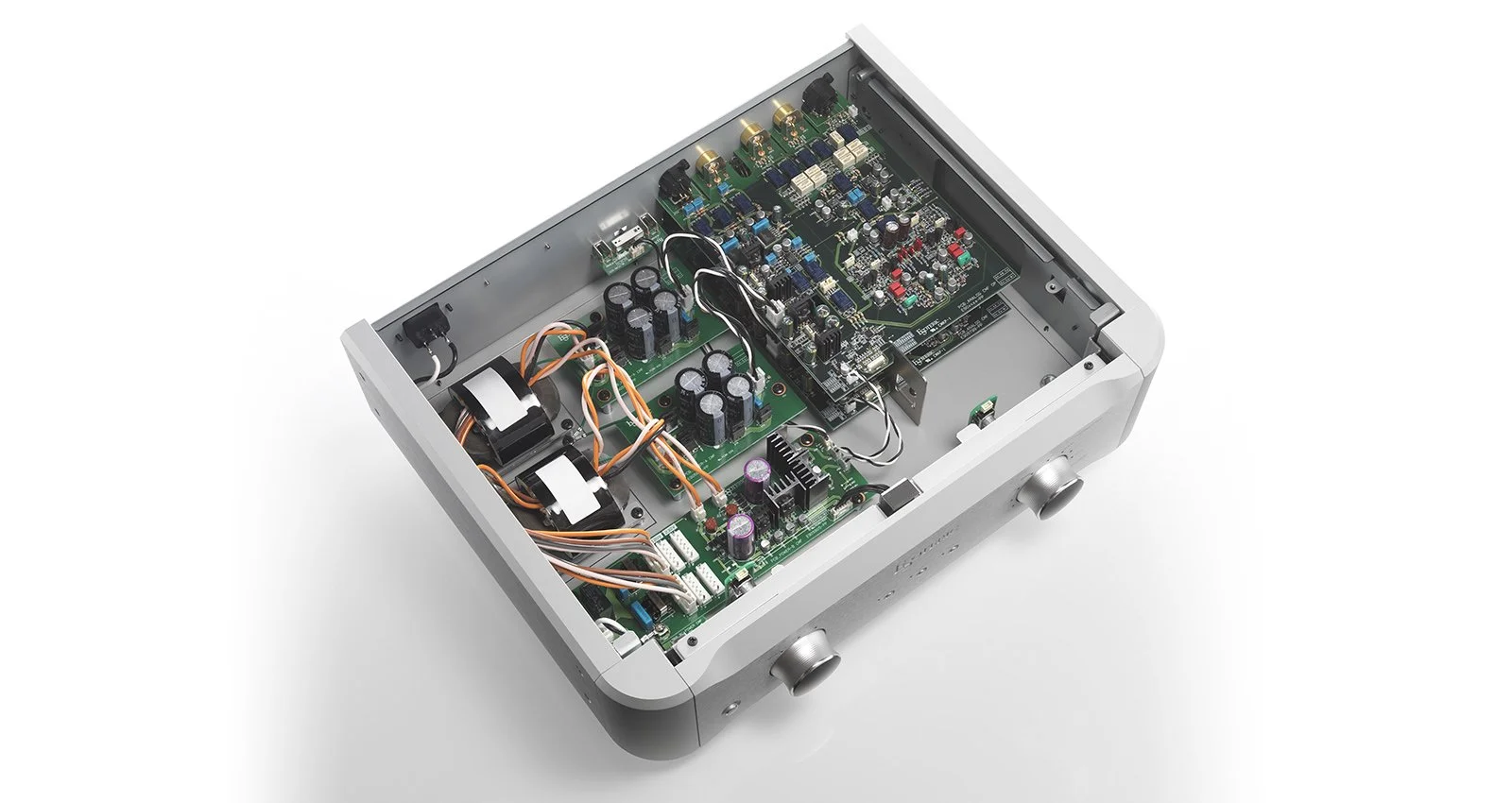

Dual Mono Construction
Identical power supply transformers, power boards and amplifier circuits are mounted independently on each channel. Outstanding channel separation and robust power supply components deliver solid, powerful, and exceptionally high quality audio playback.

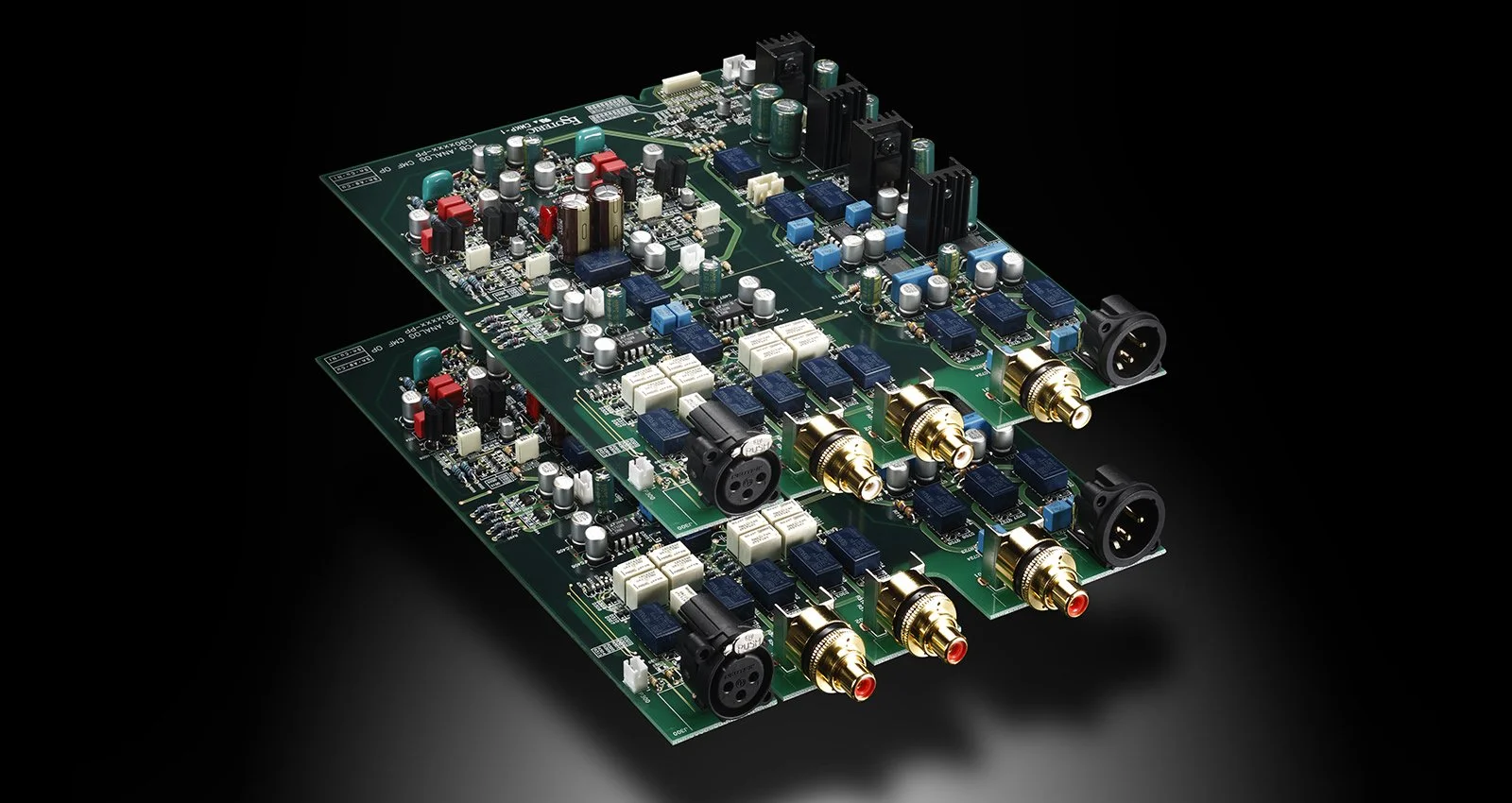

Super High Quality MC Head Amplifier and RIAA Amplifier
The E-02 features a newly designed fully balanced MC head amplifier and RIAA amplifier. The NF-CR type RIAA amplifier achieves outstanding RIAA characteristics of ±0.2dB together with minimum Negative Feedback, and the high voltage power supply delivers an exceptionally wide dynamic headroom.

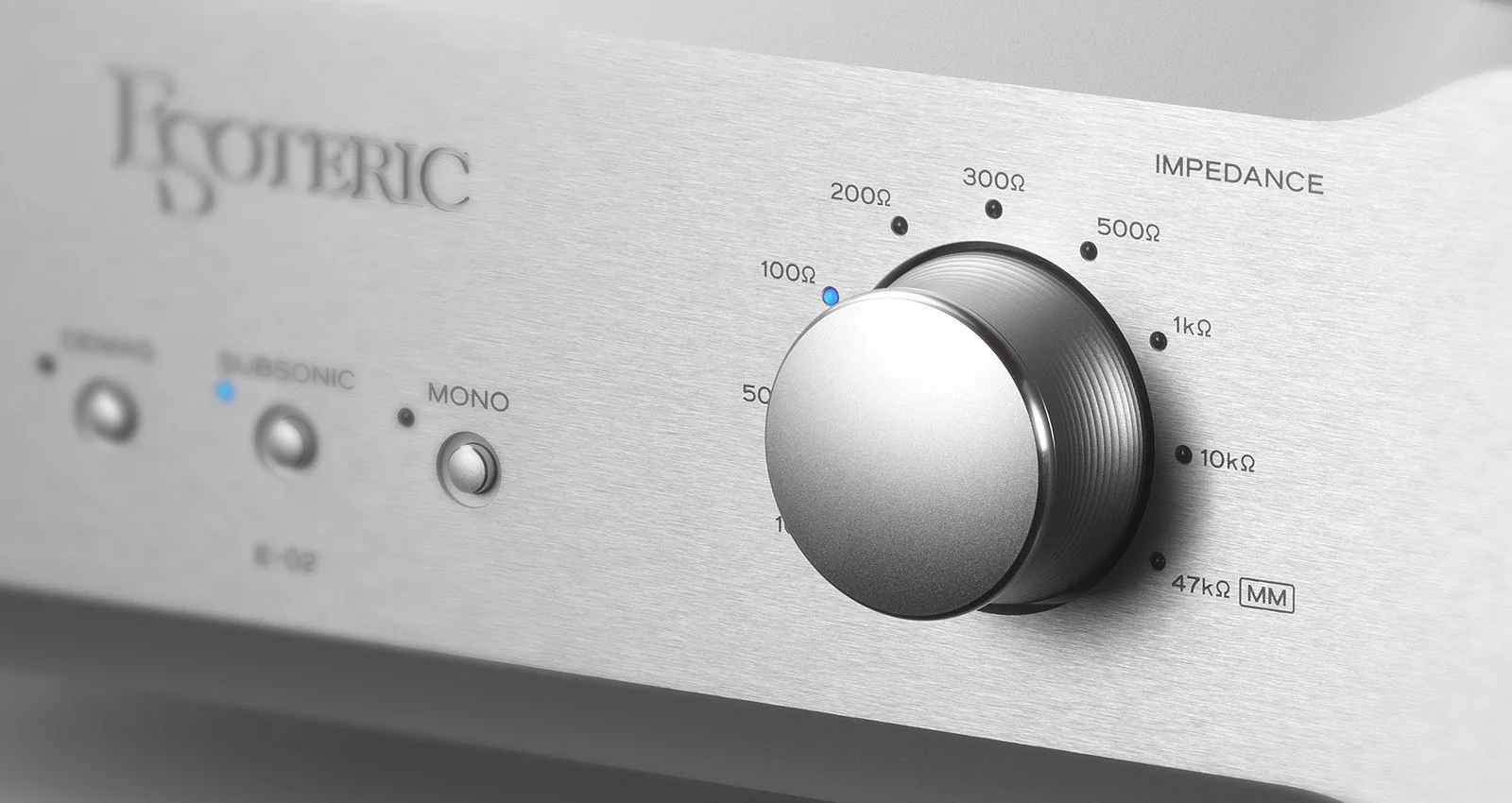

Load impedance switching function that exploits the full potential of the cartridge
The E-02 enables you to select between nine different impedance positions (MC: 10Ω, 50Ω, 100Ω, 200Ω, 300Ω, 500Ω, 1kΩ, 10kΩ, MM: 47kΩ).
Highly Rigid Chassis Construction
Phonostage amplifiers that amplify extremely low signal levels are highly sensitive to vibration, which is why ESOTERIC pays special attention to chassis construction in order to control vibration wherever possible. The arrangement of each component is designed in minute detail, and a slit construction is used in the bottom chassis that supports all of the circuits to minimize interference. The highly rigid thick aluminum enclosure and proprietary pinpoint feet (patent no. JP4075477) are extremely effective in minimizing the effects of vibration from external sources.

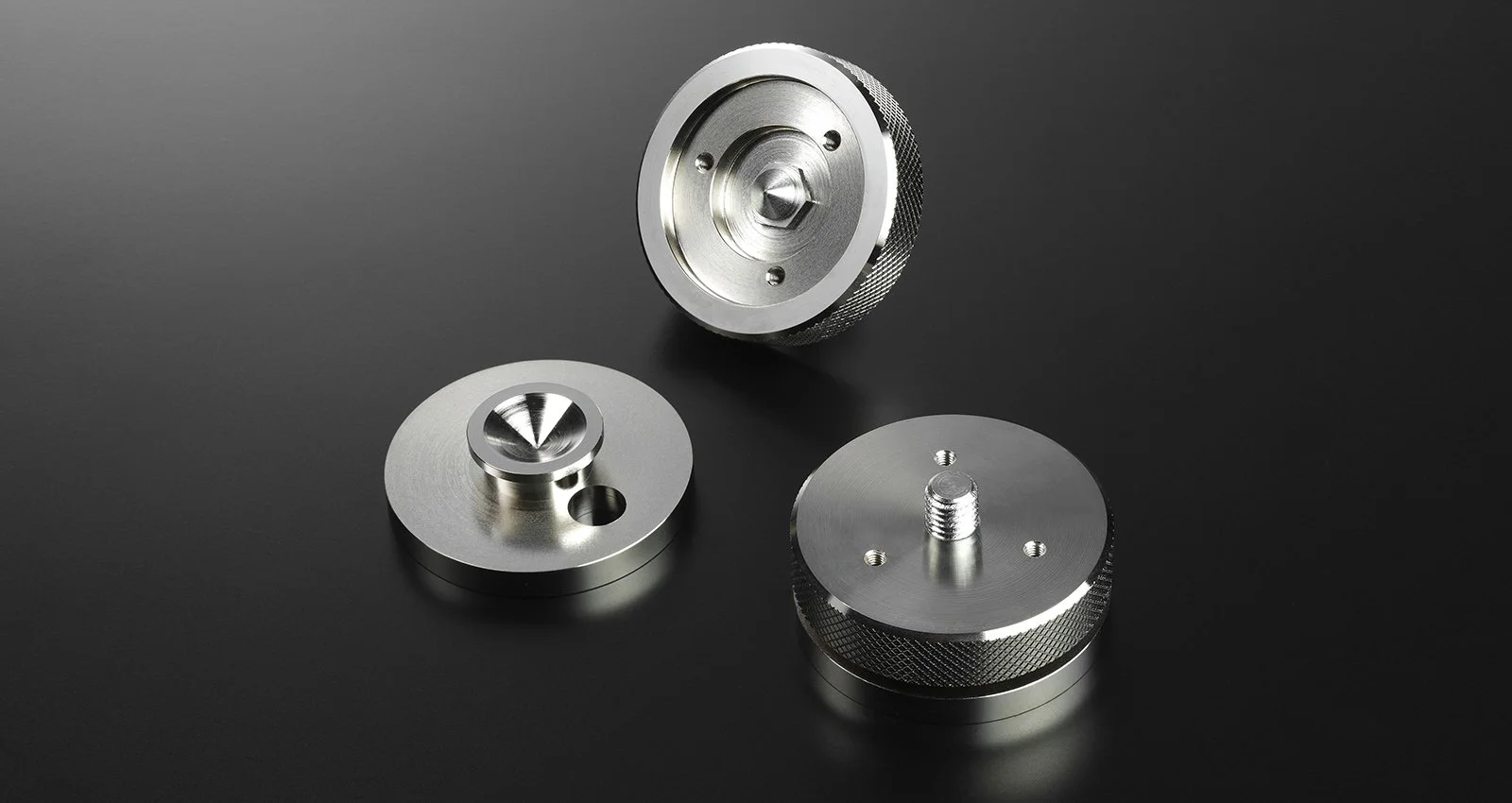

Pinpoint feet (patent no. 4075477)

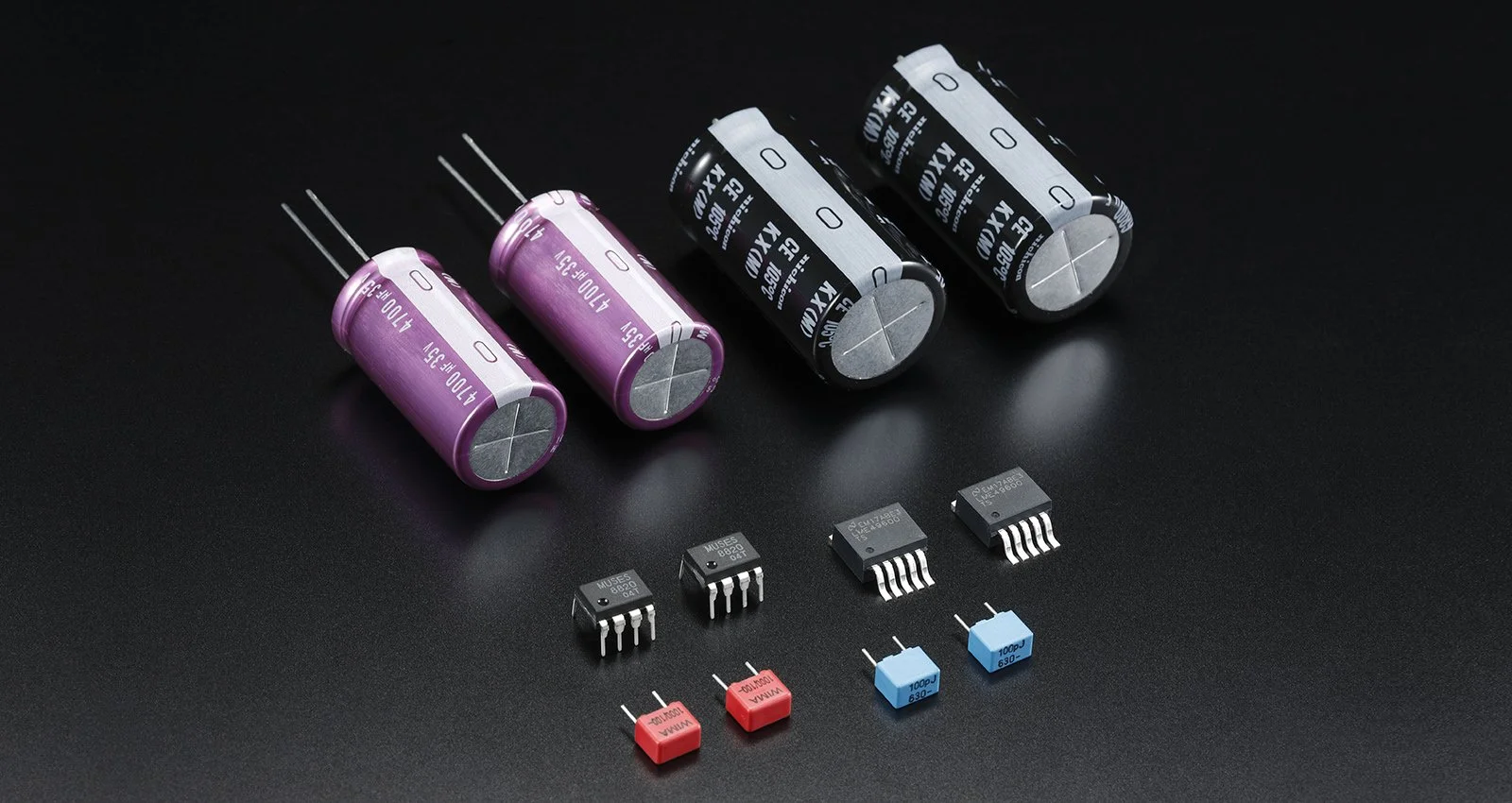

High grade parts

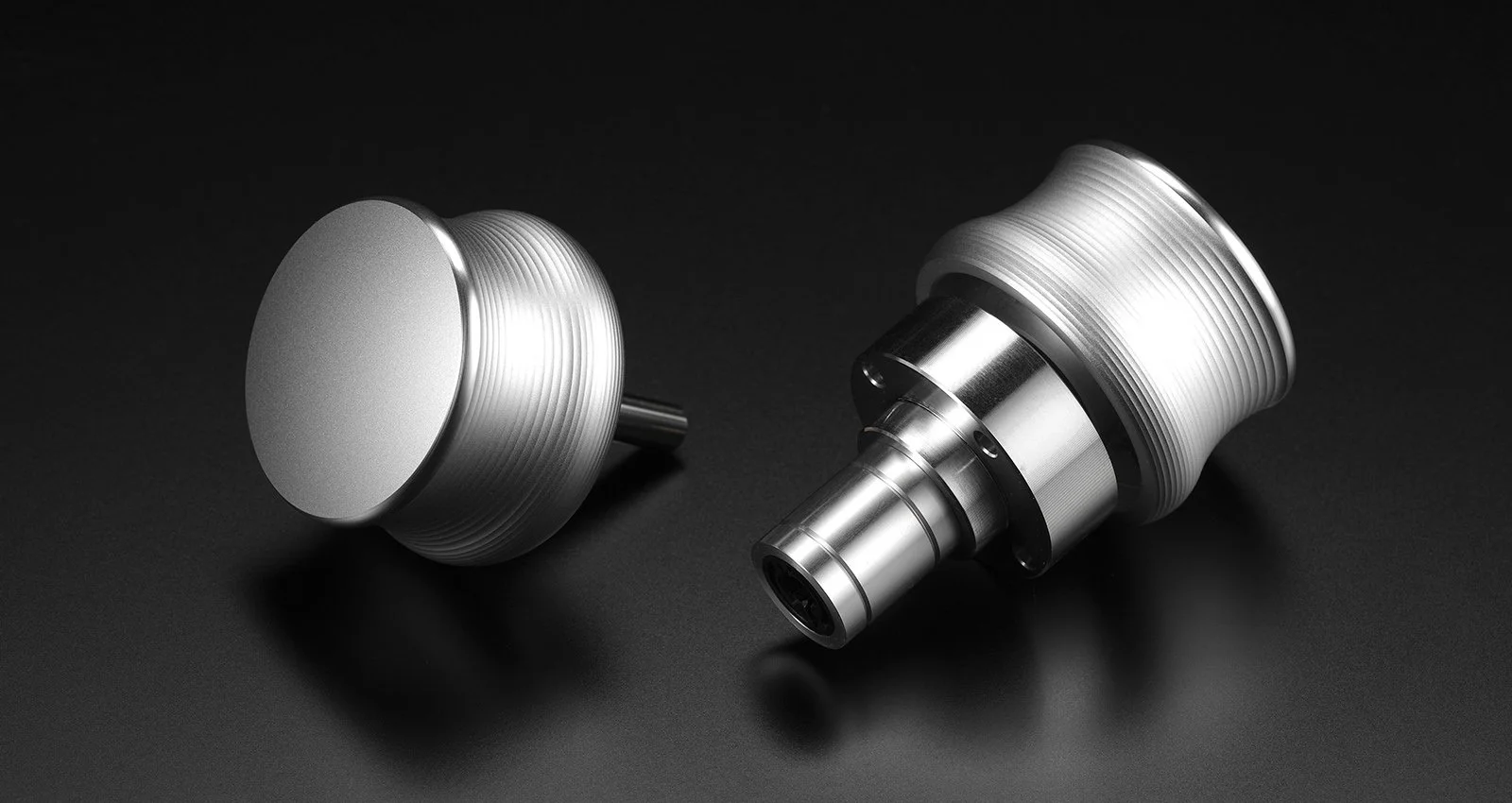

Selector knobs with ball-bearing structure
