R-50PM Powered Speakers With 5.25" Woofers

SYSTEM DESCRIPTION Powered Monitor (pair)

FREQUENCY RESPONSE 55Hz - 20kHz

DYNAMIC BASS EXTENSION 44Hz MAXIMUM

OUTPUT 104dB

TOTAL SYSTEM POWER 120W Total System Power (240W Peak) 60W per channel cont. @ <%1 THD

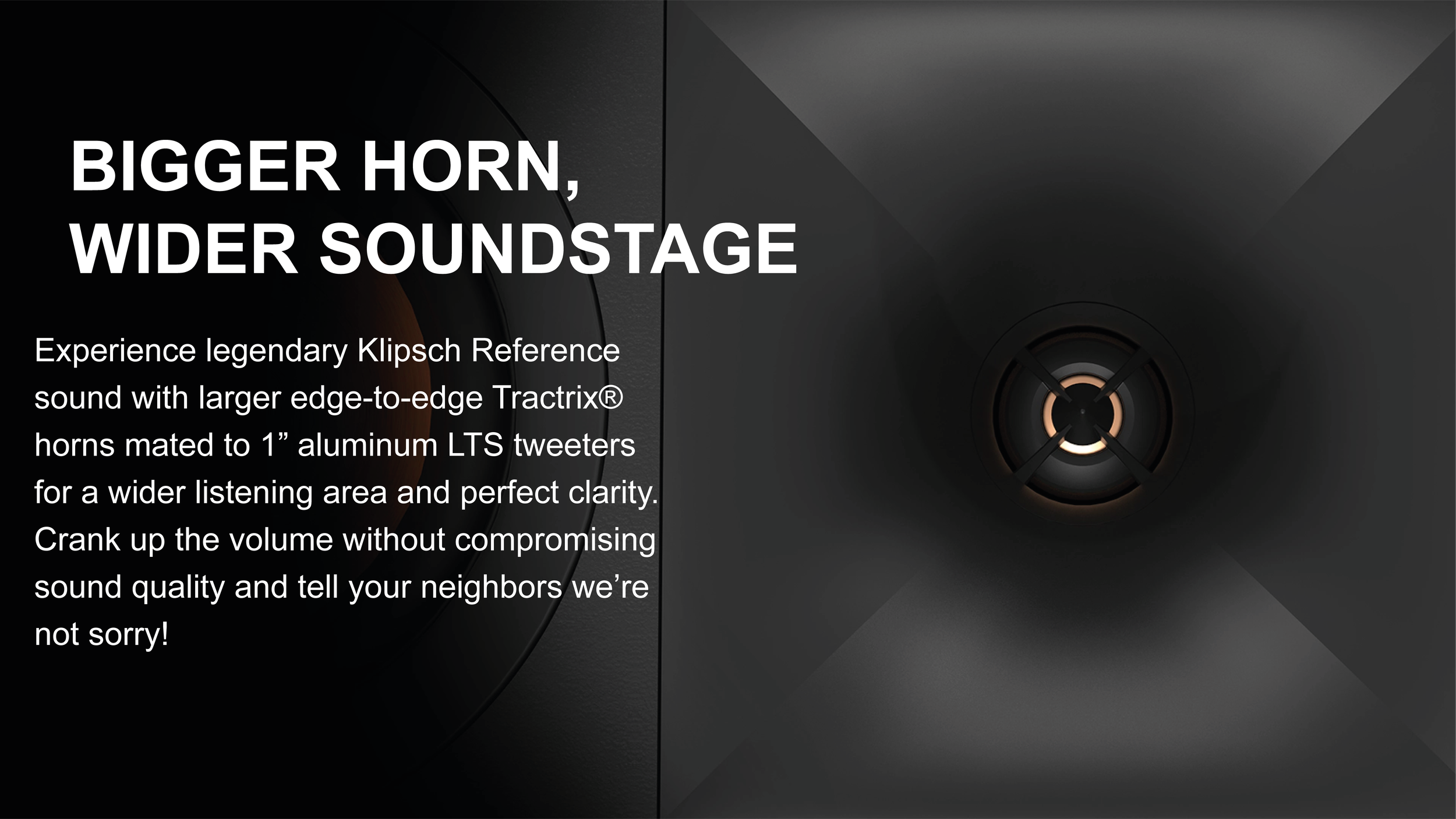

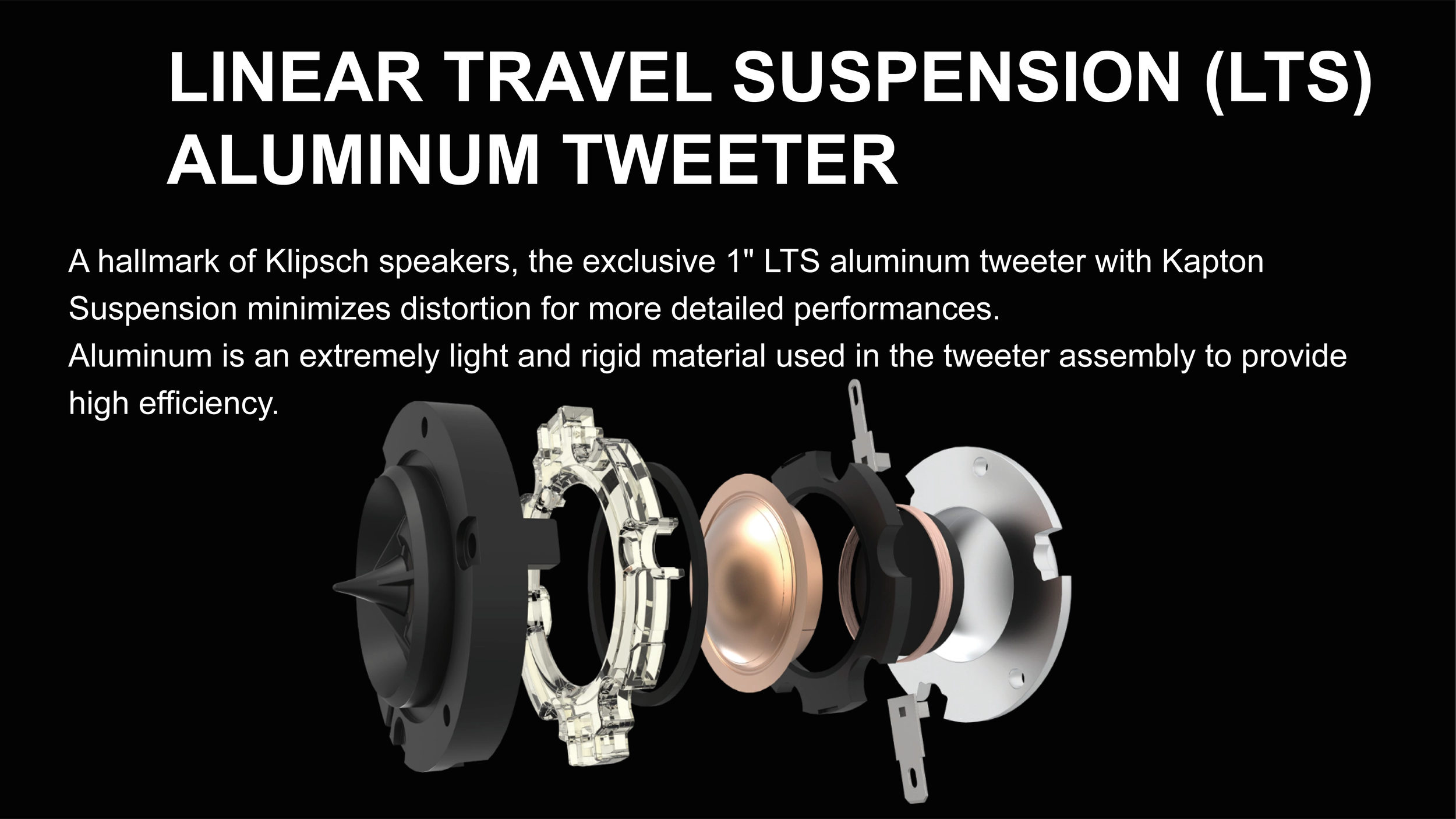

HIGH FREQUENCY DRIVER 1” (2.5cm) Aluminum LTS tweeter mated to 90° x 90° square Tractrix® horn

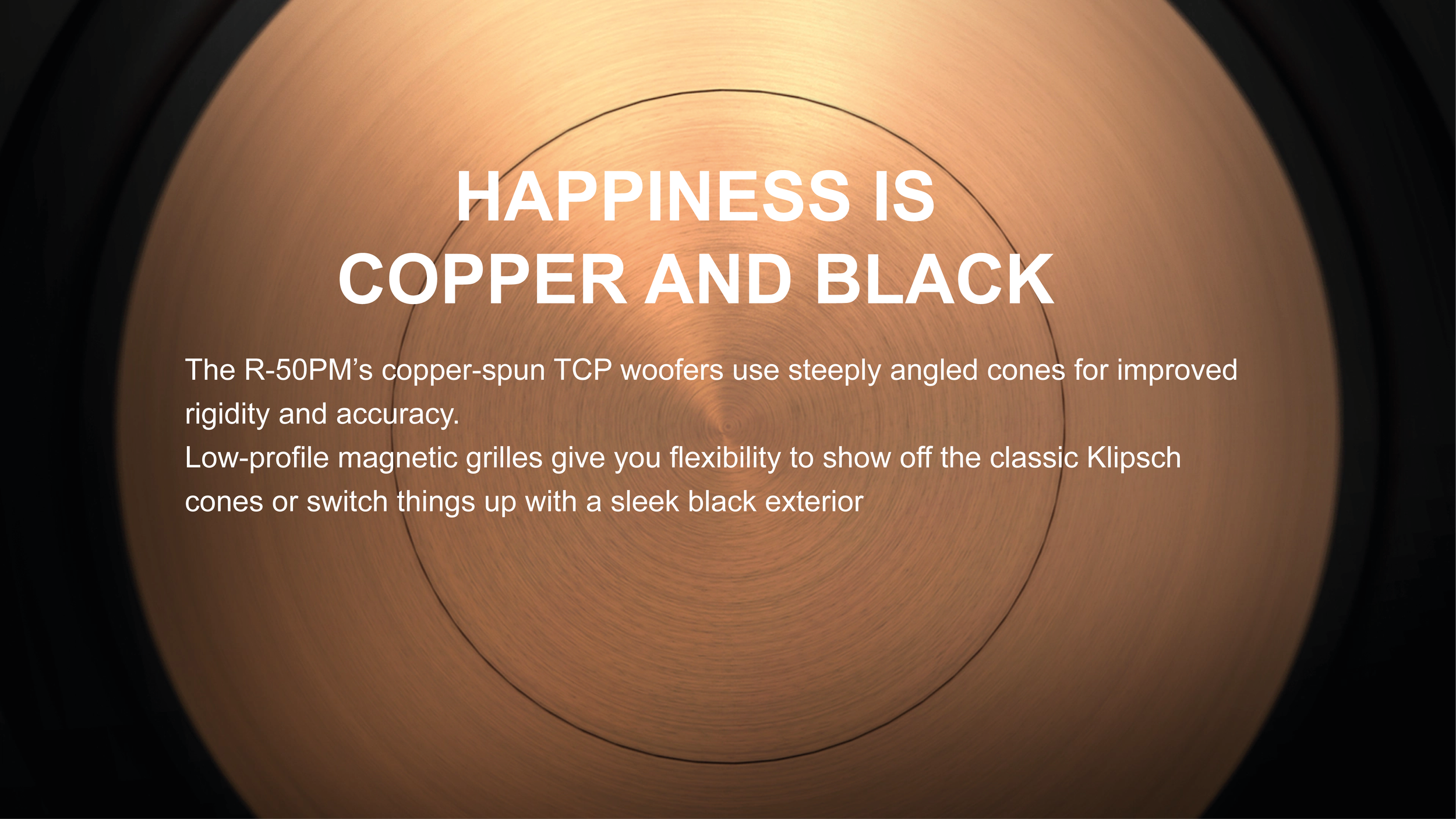

LOW FREQUENCY DRIVER Single 5.25” (13.3cm) spun-copper TCP woofer

CROSSOVER FREQUENCY 1663 Hz (Passive)

ENCLOSURE MATERIAL MDF

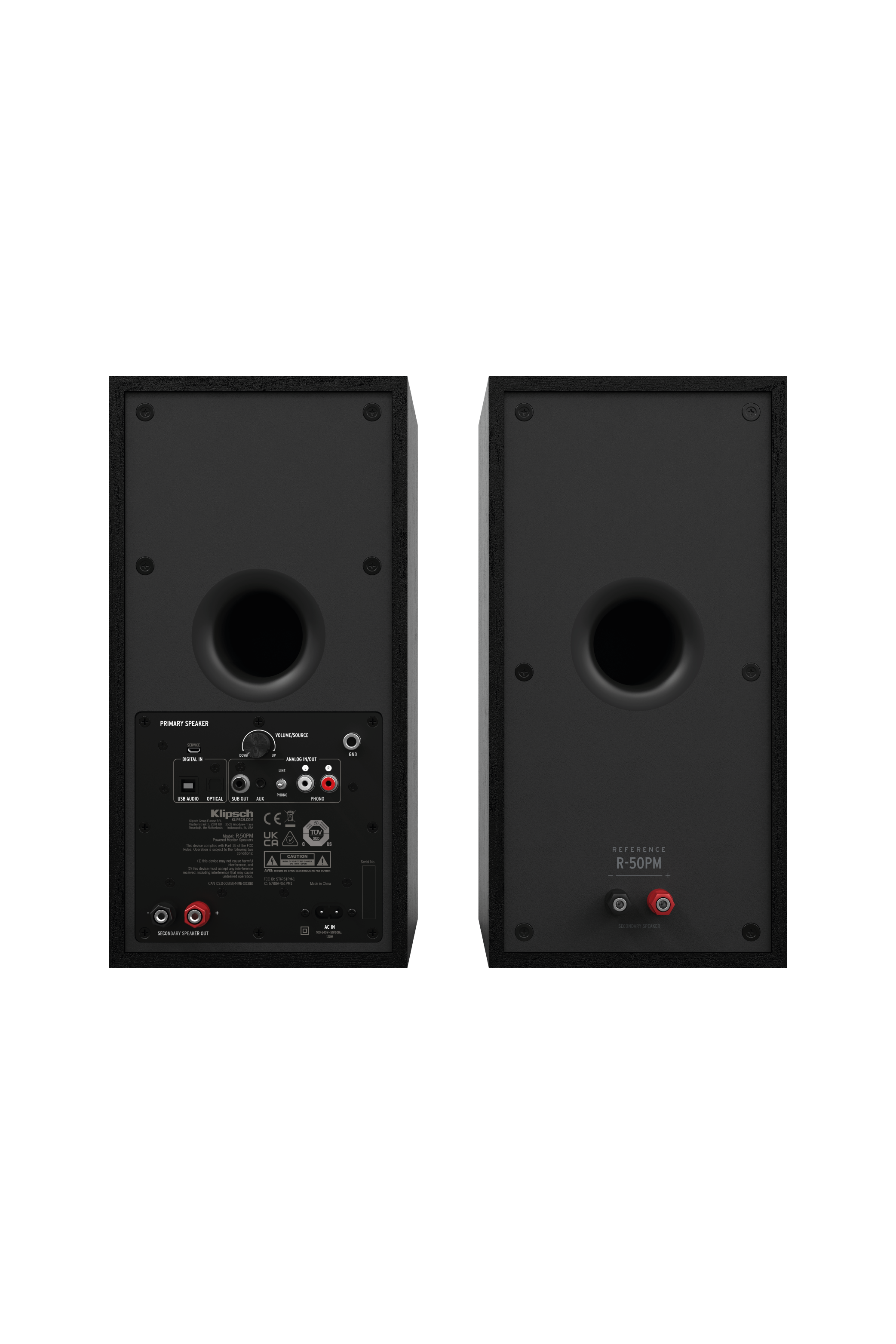

ENCLOSURE TYPE Bass-reflex via rear-firing port

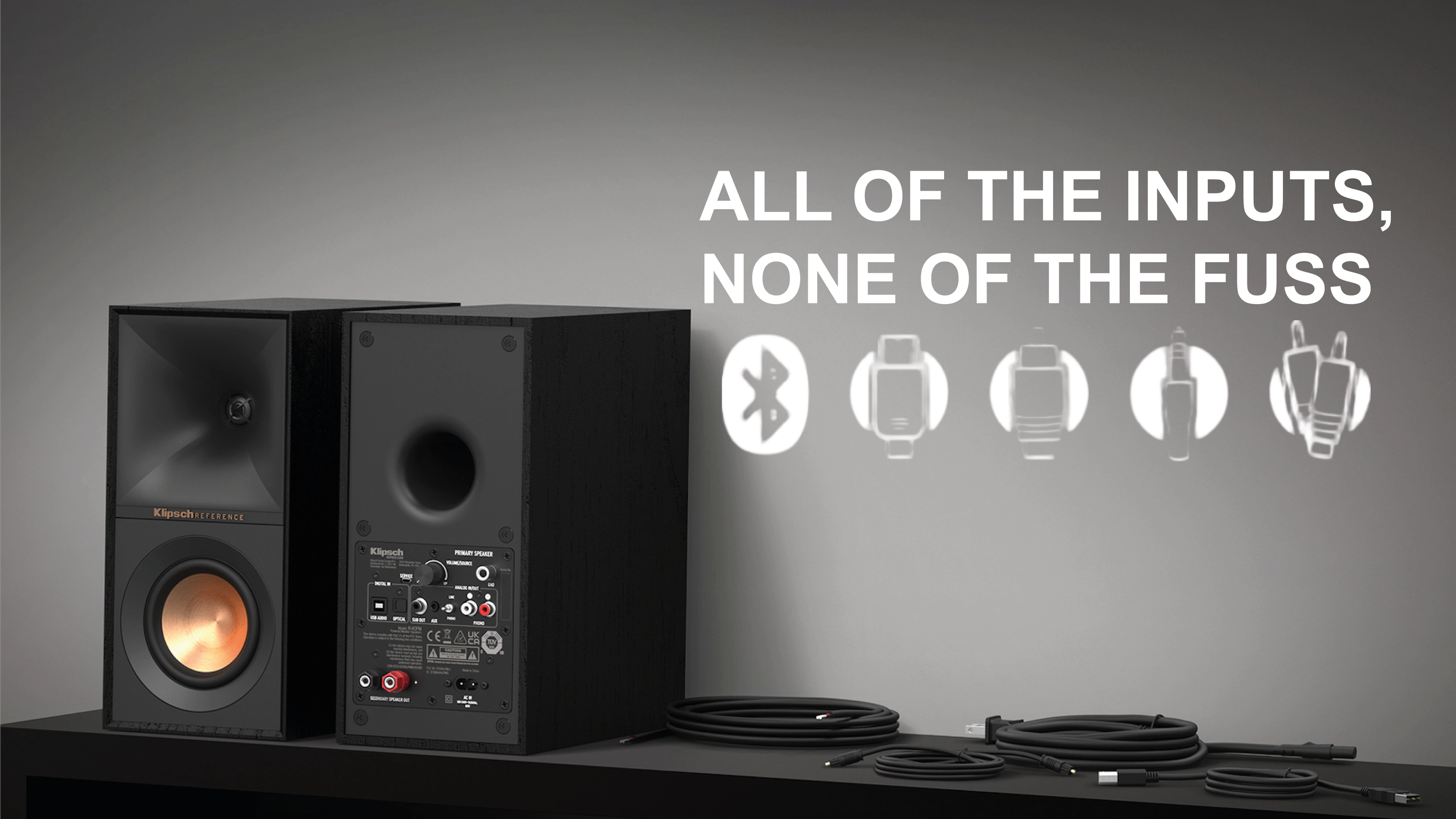

INPUTS

• Bluetooth® wireless technology

• Phono/Line analog (with switch and ground screw terminal) • 3.5mm analog mini jack

• USB digital

• Optical digital

OUTPUTS Single RCA line level output for connection to subwoofer

HEIGHT, WIDTH, DEPTH 14” (35.6 cm), 7” (17.8 cm), 10.8” (27.4 cm)

WEIGHT 24.8 lbs (11.2 kg)

FINISH Black

VOLTAGE 100V-240V 50/60Hz internal power supply with region specific power cords

INCLUDED ACCESSORIES

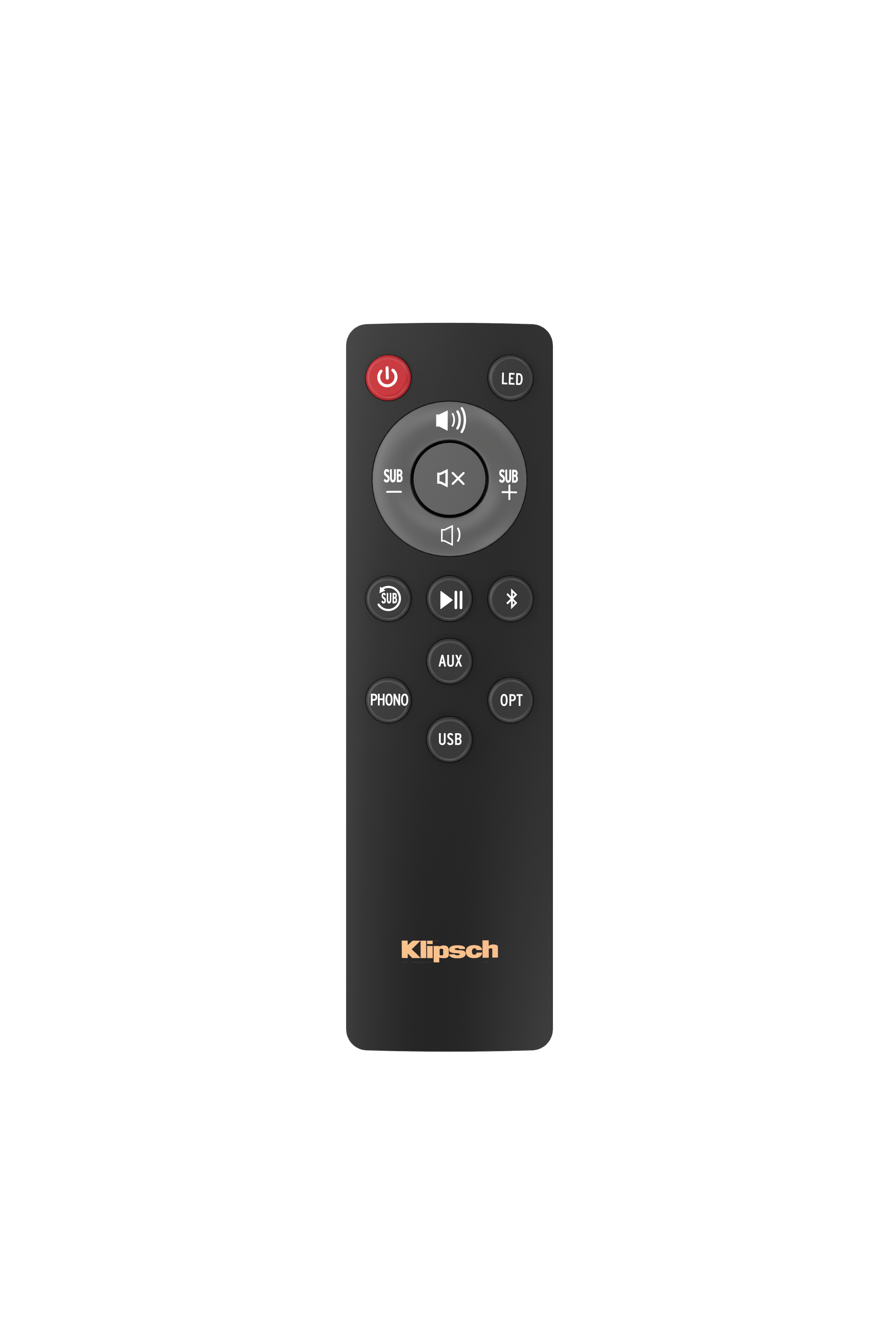

• Remote control (with 2 x AAA batteries)

• 4M speaker wire with soldered tips

• 2M power cord (region specific)

• 2M USB Type A to Type B cable
