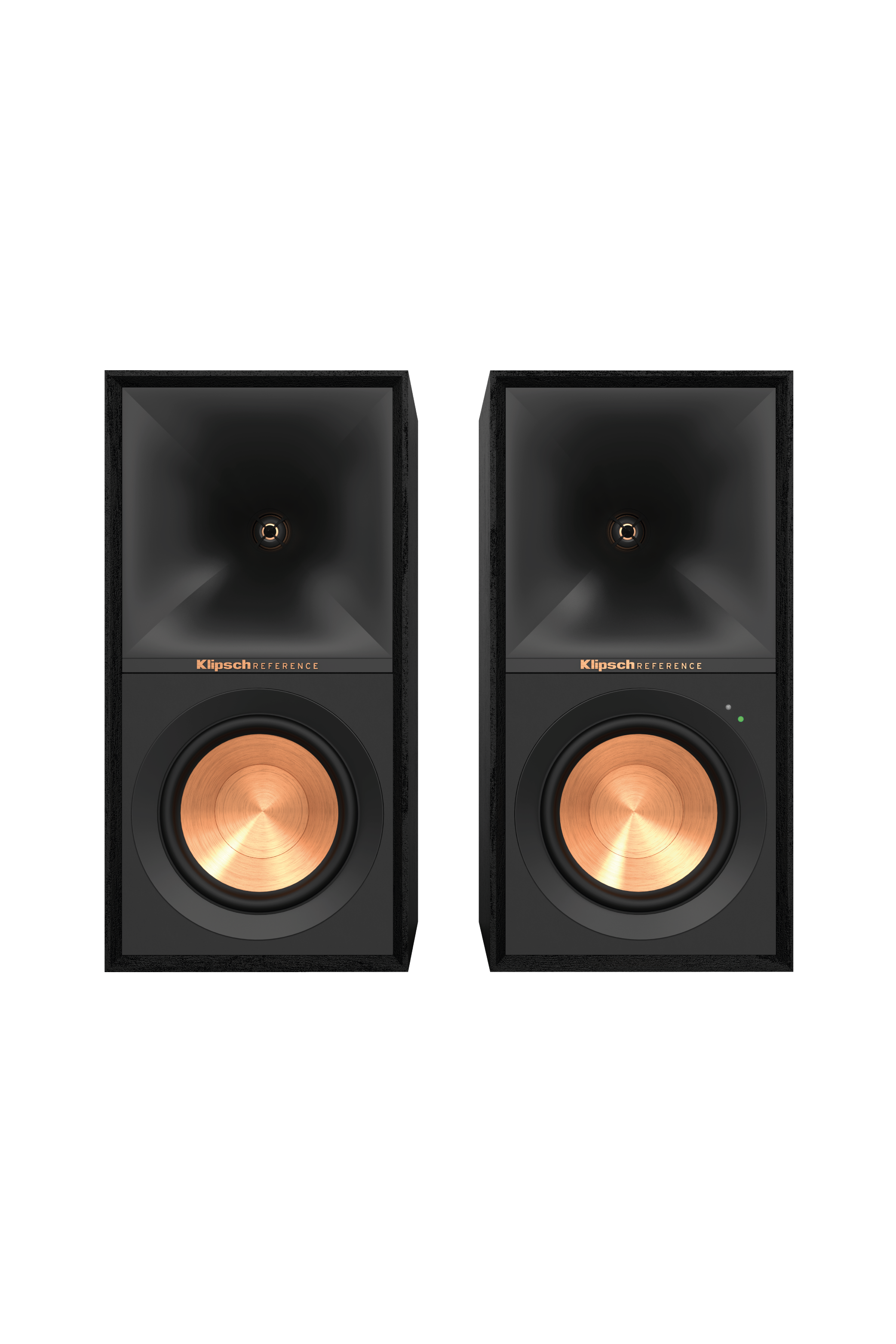

R-40PM Powered Speakers With 4" Woofers

SYSTEM DESCRIPTION Powered Monitor (pair)

FREQUENCY RESPONSE 60Hz - 20kHz

DYNAMIC BASS EXTENSION 52Hz MAXIMUM

OUTPUT 100dB

TOTAL SYSTEM POWER 70W Total System Power (240W Peak) 35W per channel cont. @ <%1 THD

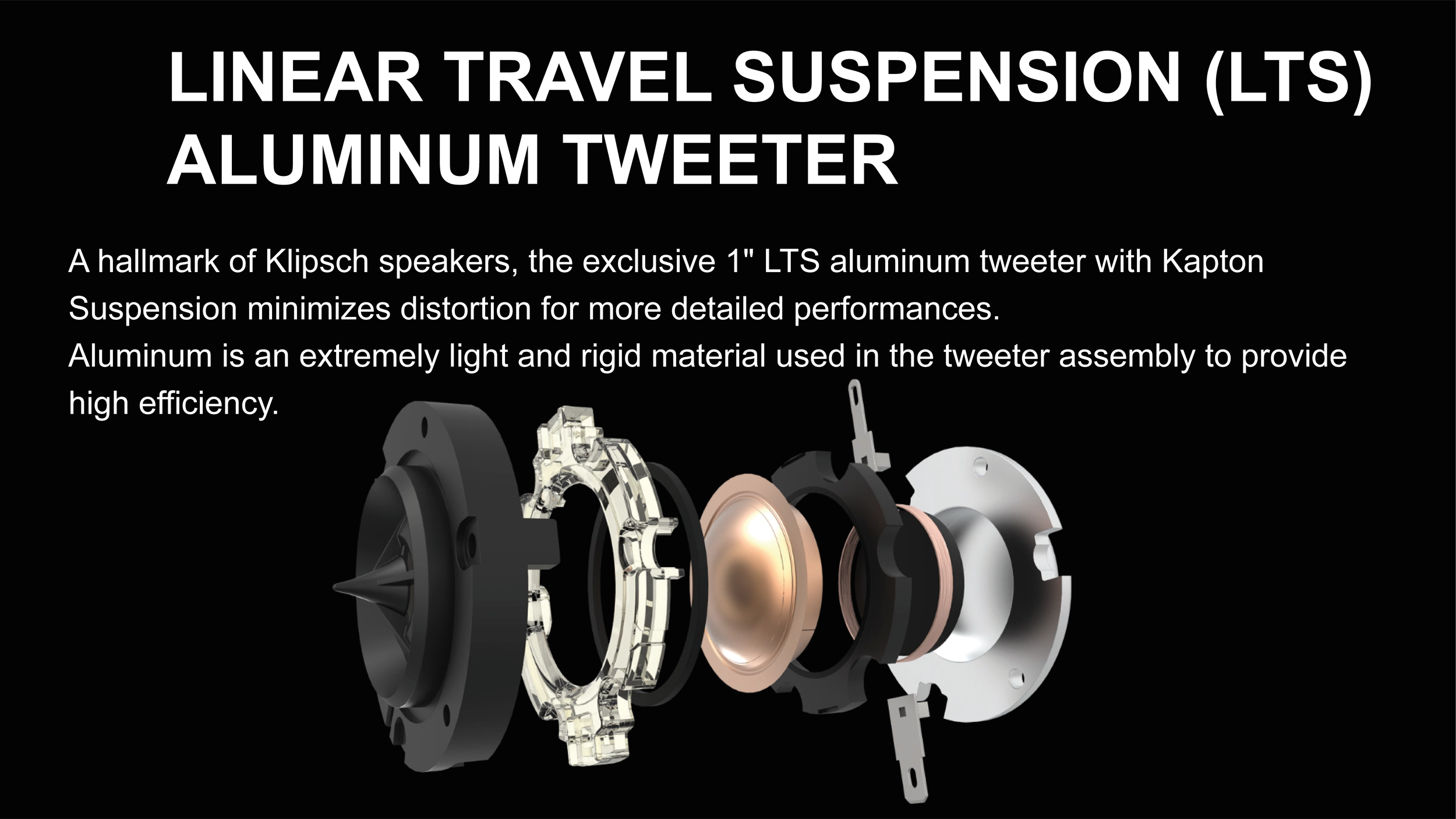

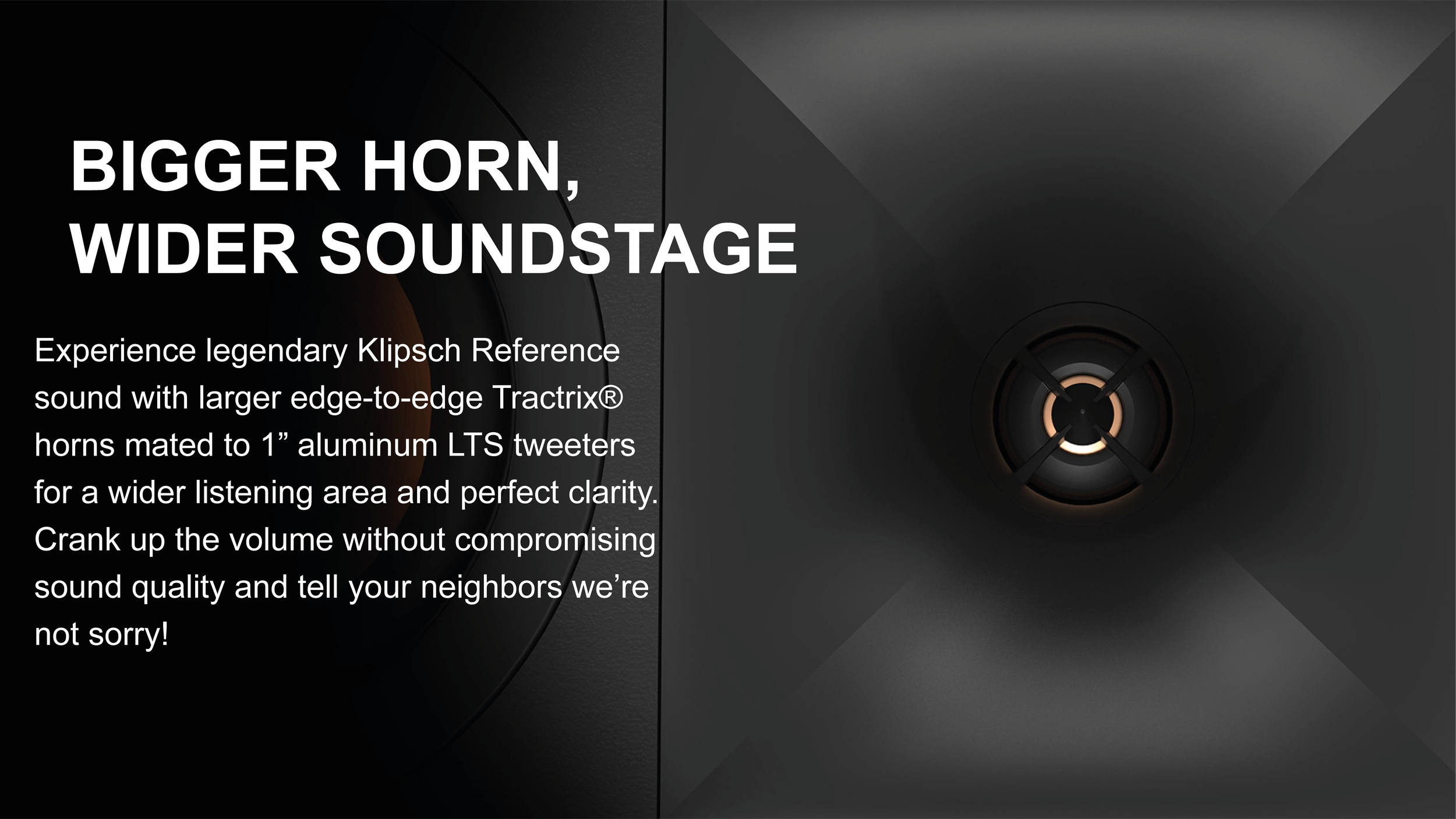

HIGH FREQUENCY DRIVER 1” (2.5cm) Aluminum LTS tweeter mated to 90° x 90° square Tractrix® horn

LOW FREQUENCY DRIVER Single 4” (10.2cm) spun-copper TCP woofer

CROSSOVER FREQUENCY 1730 Hz (Passive)

ENCLOSURE MATERIAL MDF

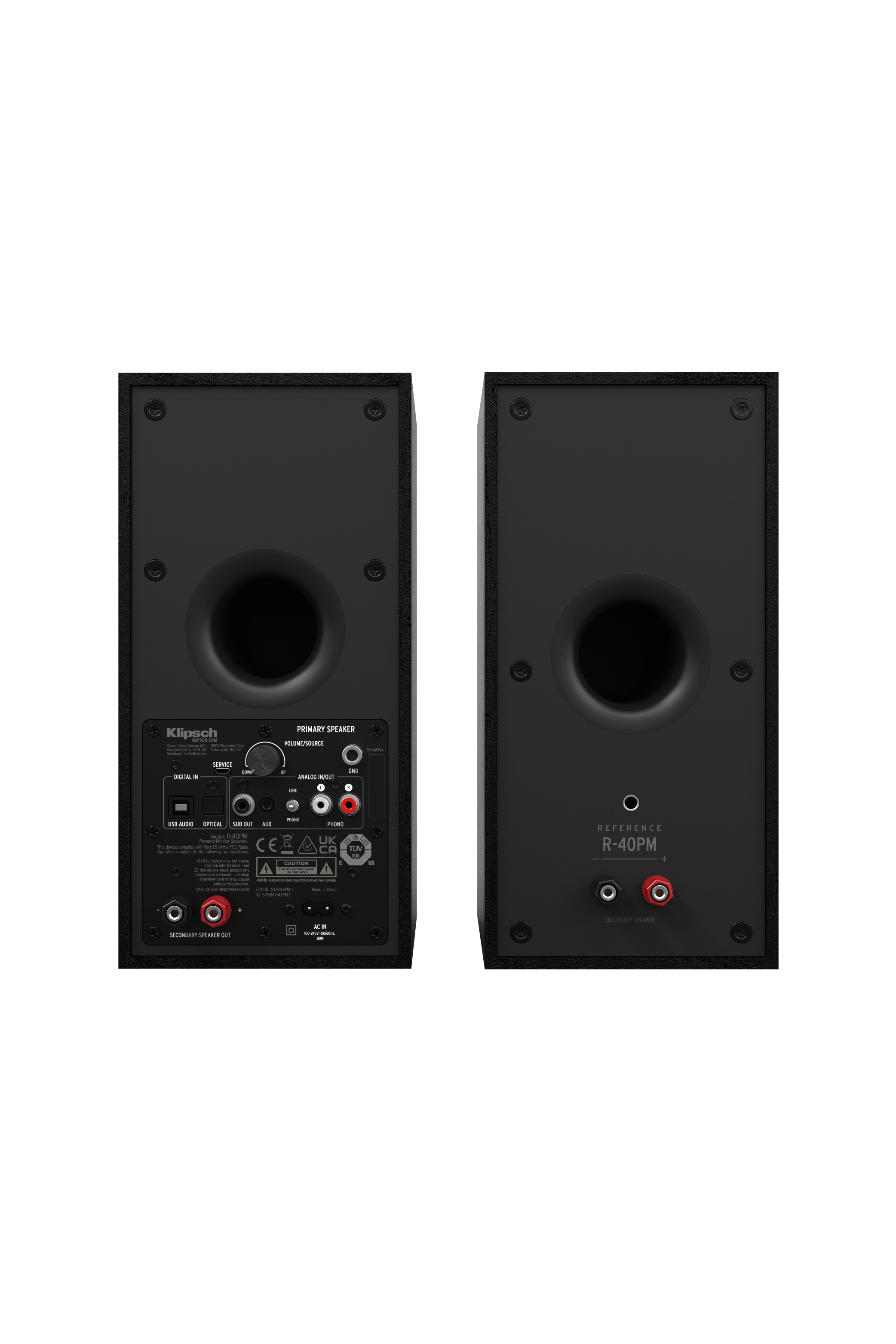

ENCLOSURE TYPE Bass-reflex via rear-firing port

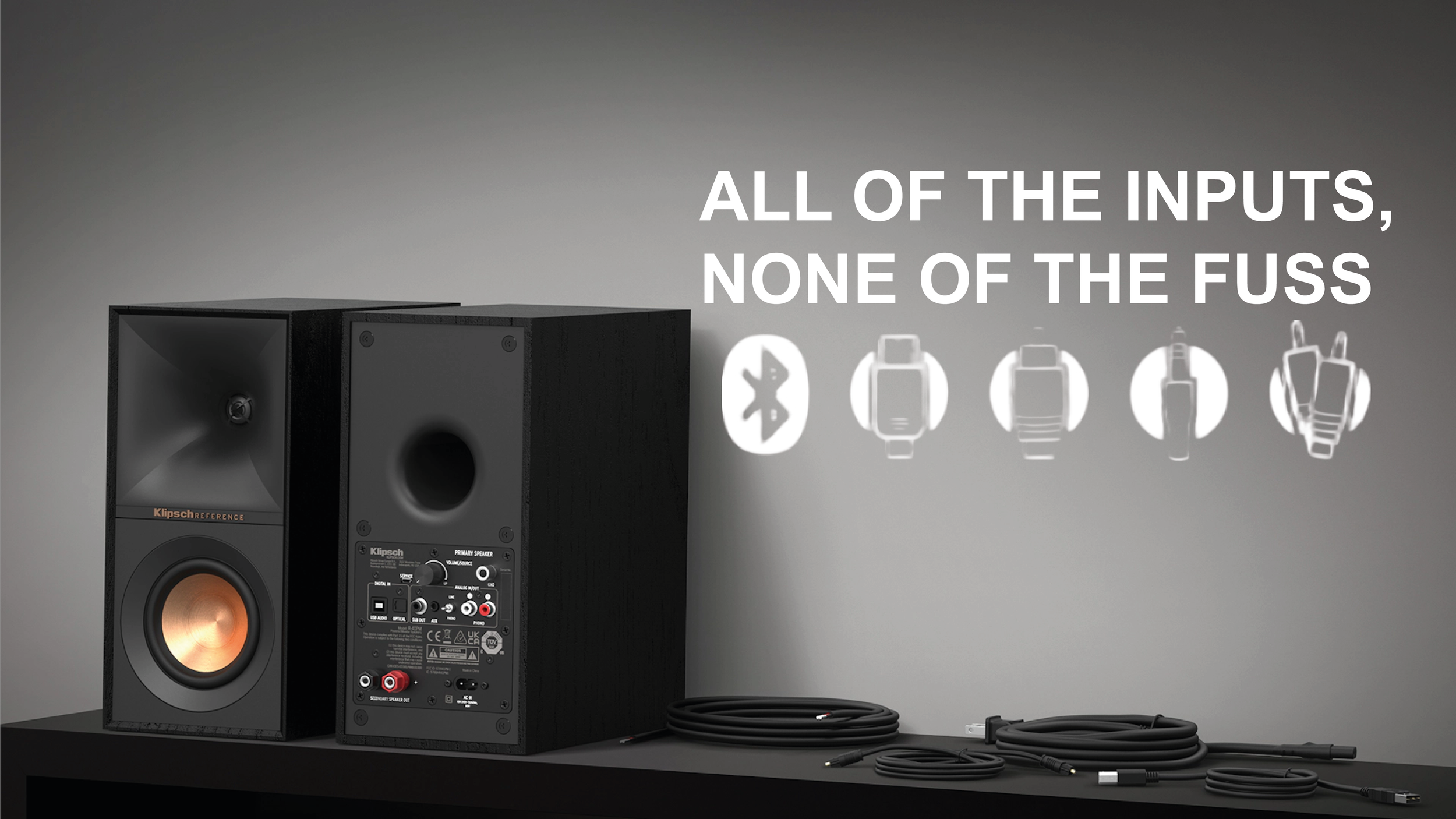

INPUTS

• Bluetooth® wireless technology

• Phono/Line analog (with switch and ground screw terminal) • 3.5mm analog mini jack

• USB digital

• Optical digital

OUTPUTS Single RCA line level output for connection to subwoofer

• HEIGHT, WIDTH, DEPTH 11.8” (30 cm), 5.7” (14.5 cm), 10.1” (25.65 cm)

WEIGHT 18.3 lbs (8.3 kg)

FINISH Black

VOLTAGE 100V-240V 50/60Hz internal power supply with region specific power cords

INCLUDED ACCESSORIES

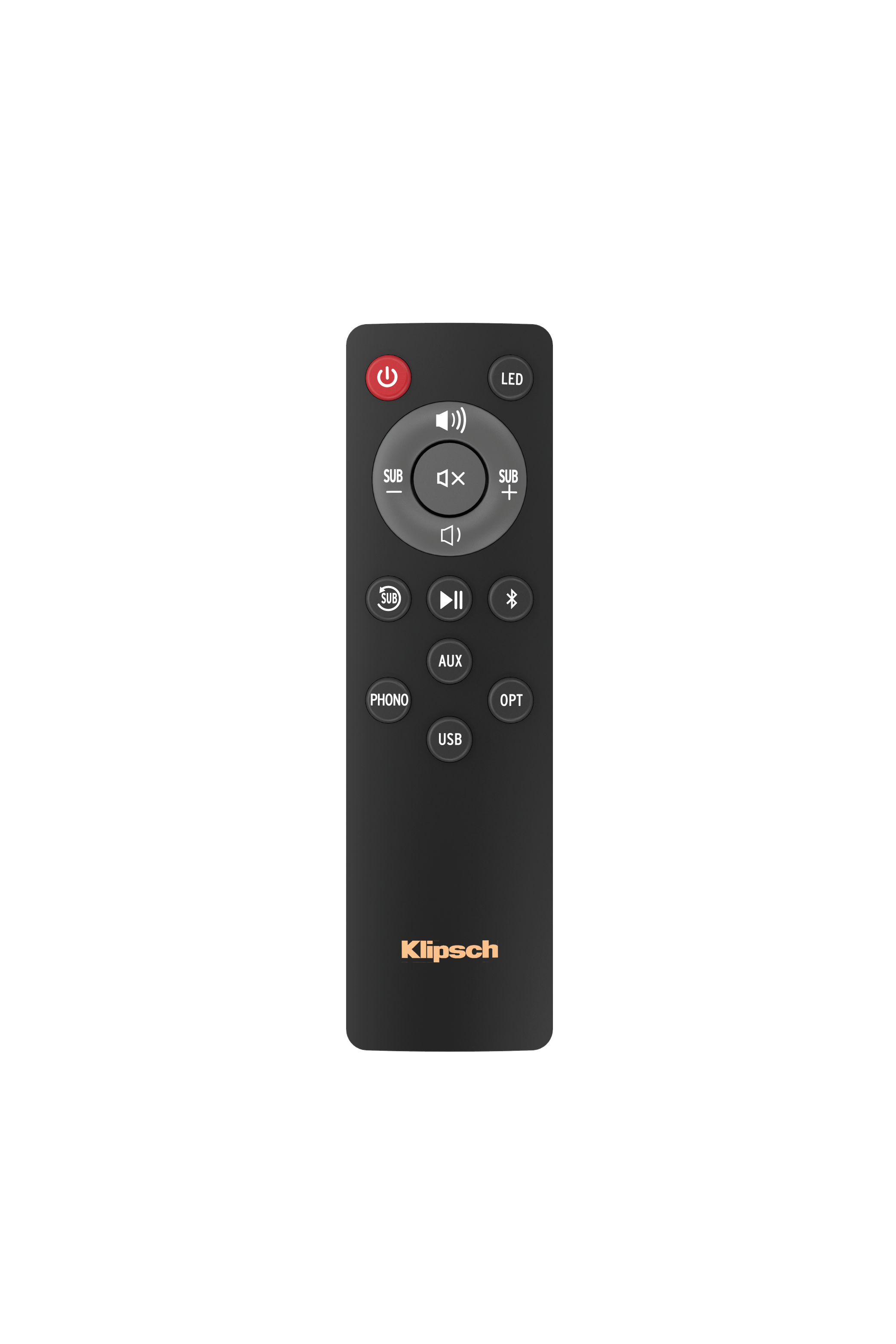

• Remote control (with 2 x AAA batteries)

• 4M speaker wire with soldered tips

• 2M power cord (region specific)

• 2M USB Type A to Type B cable
