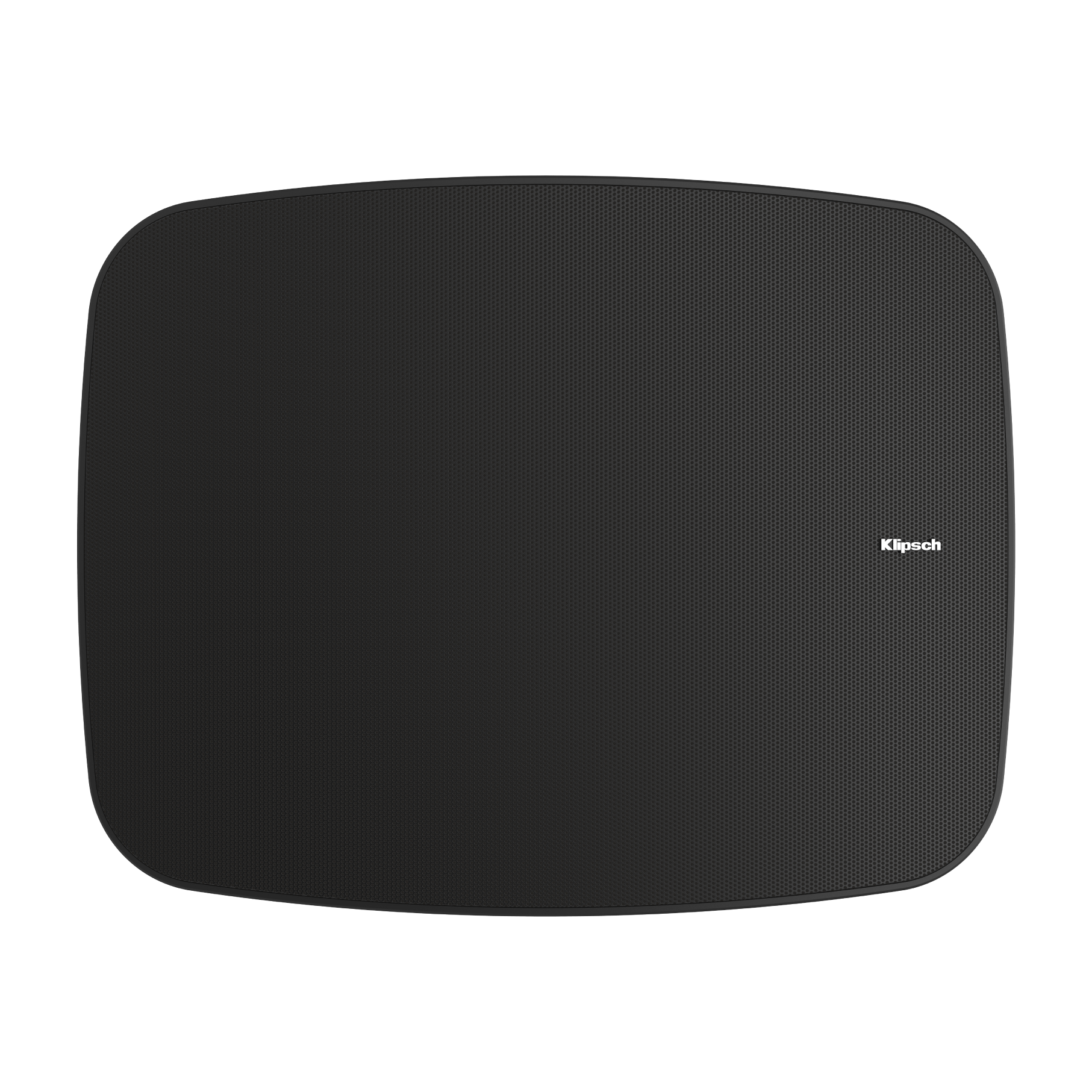

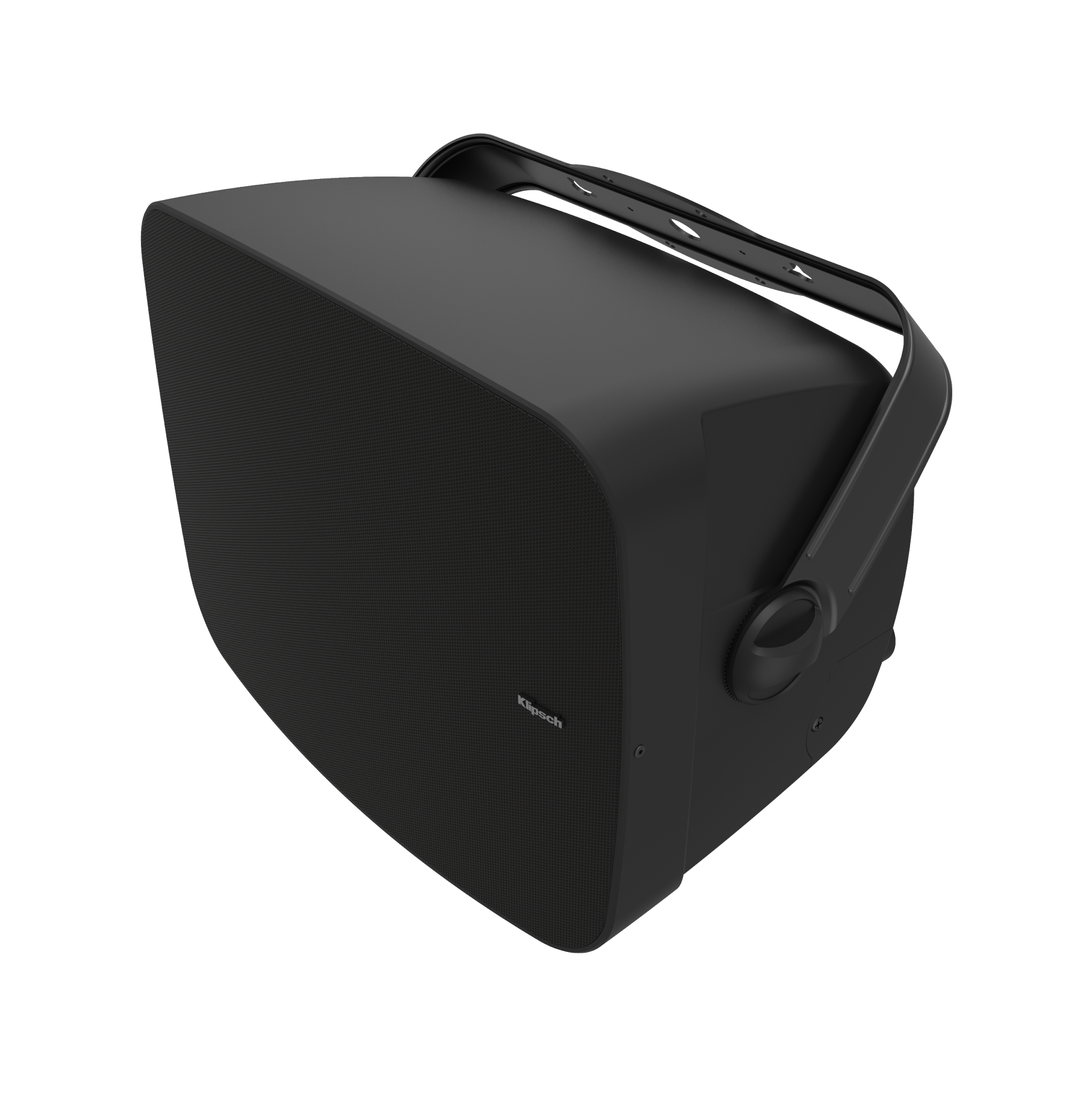

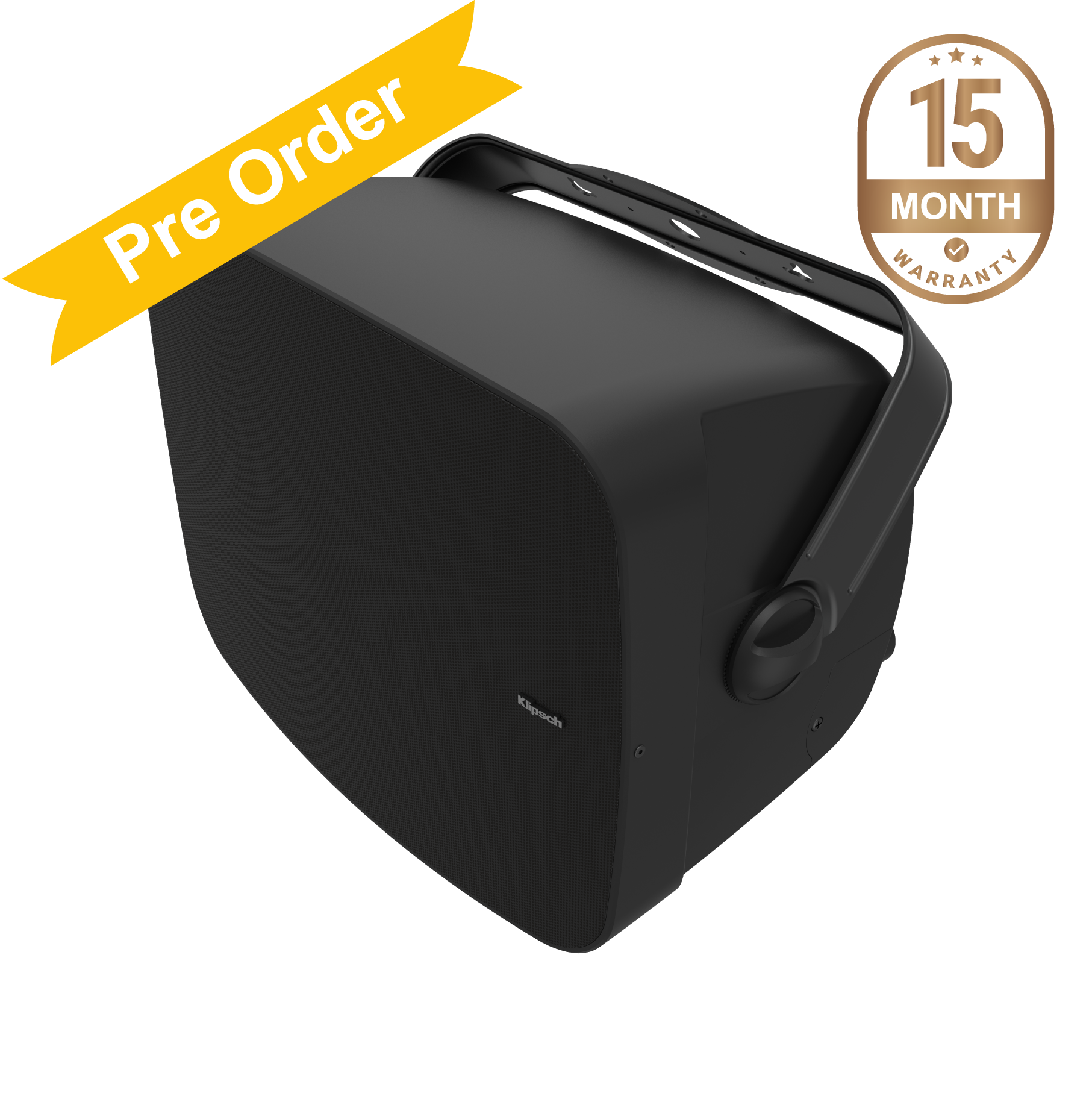

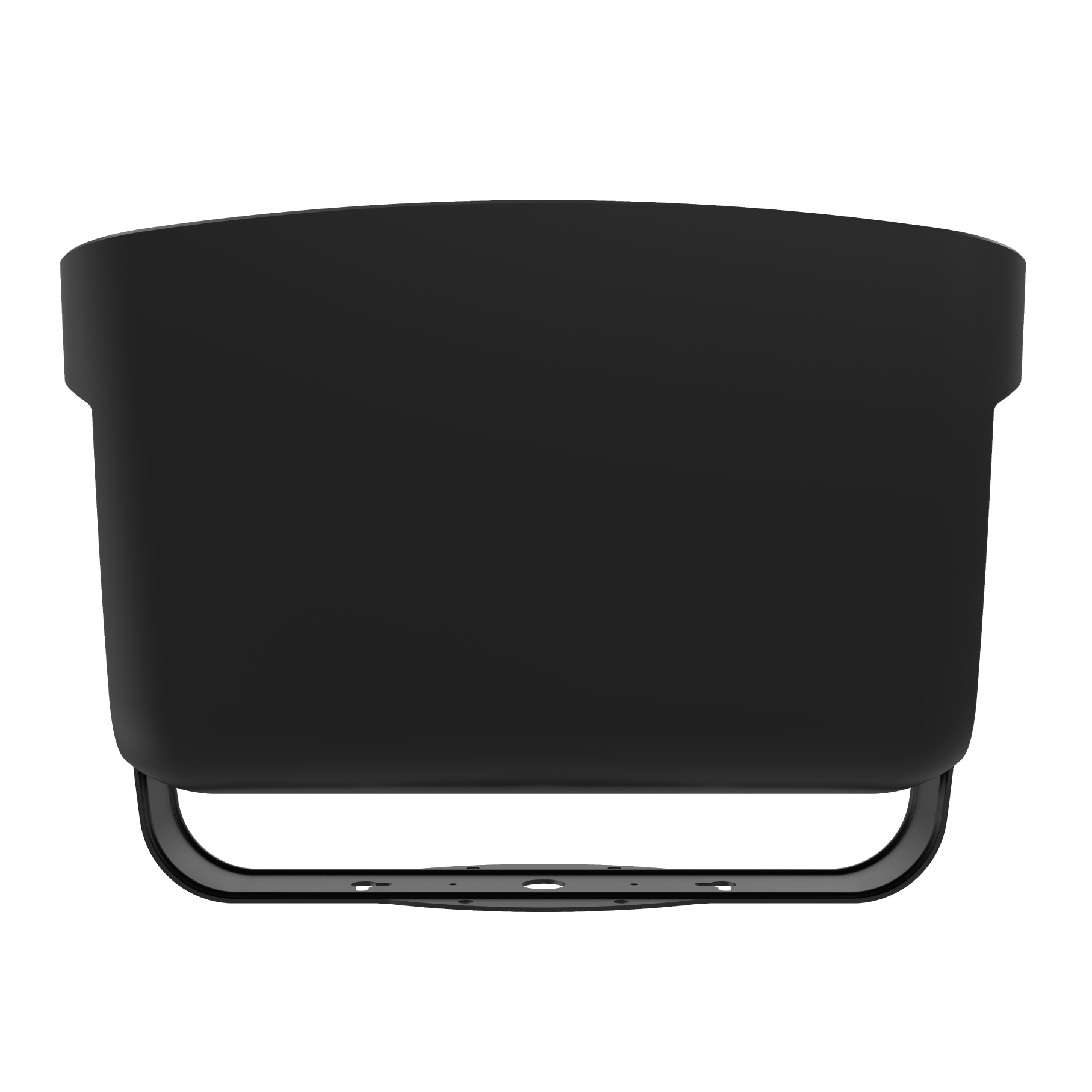

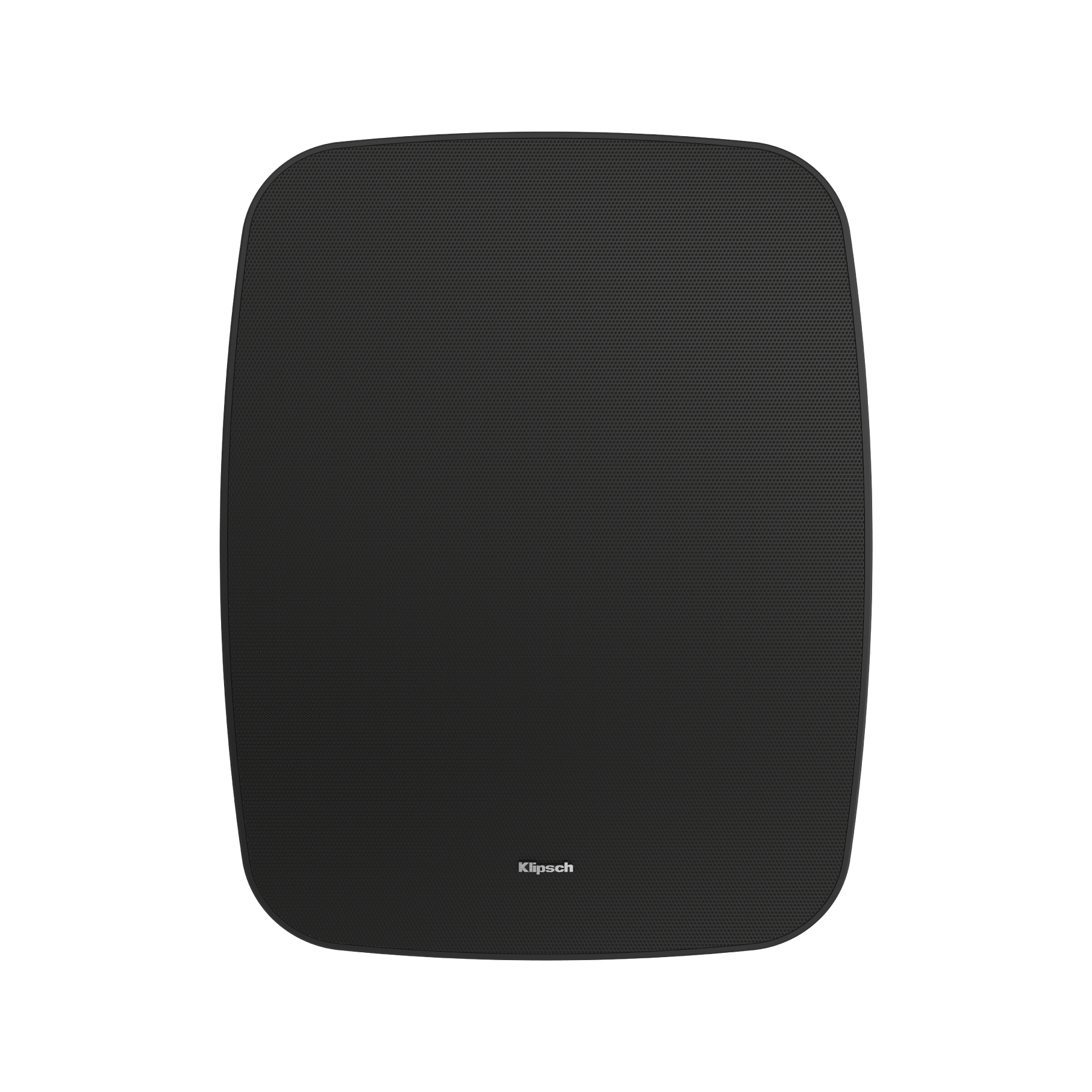

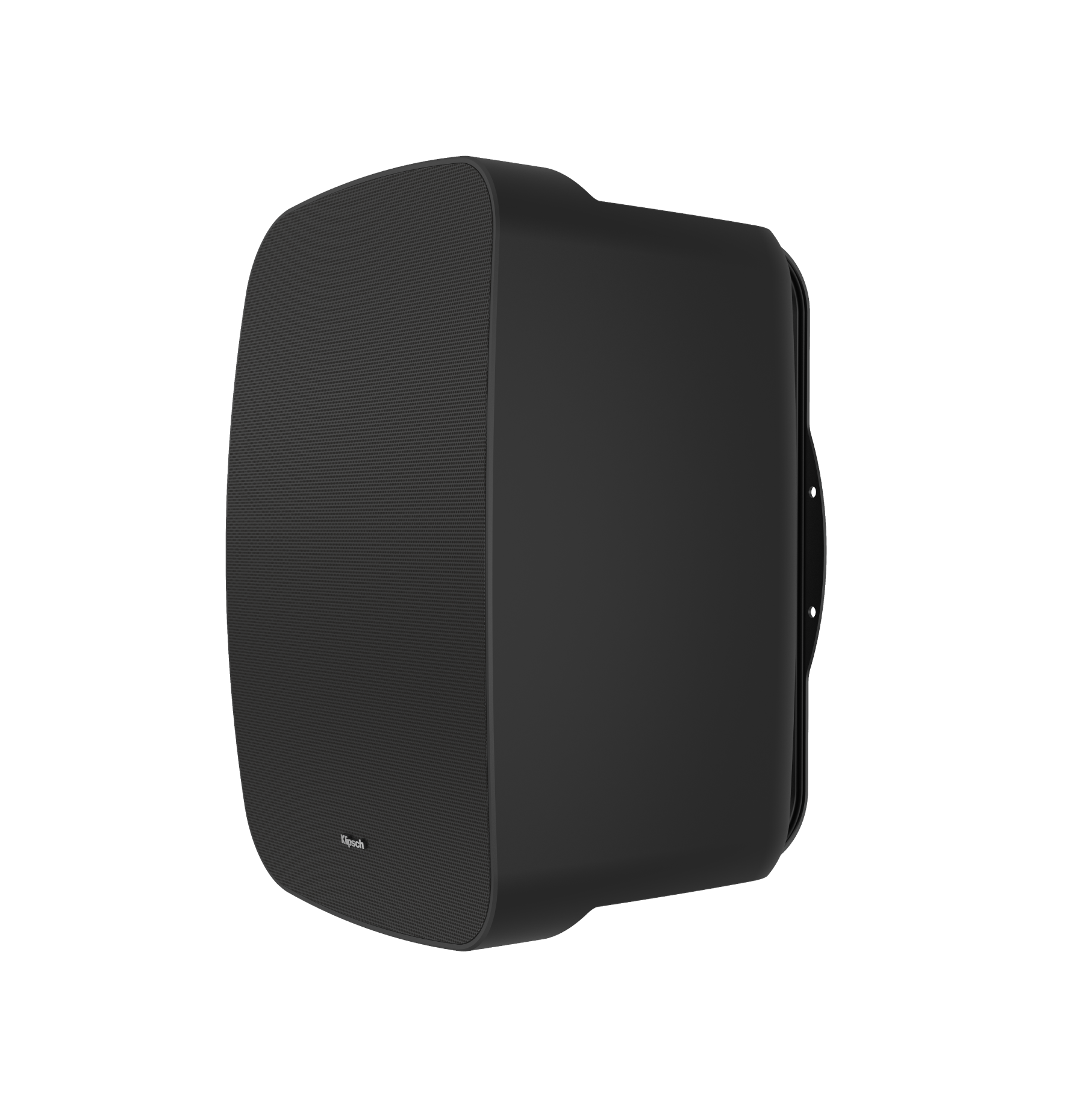

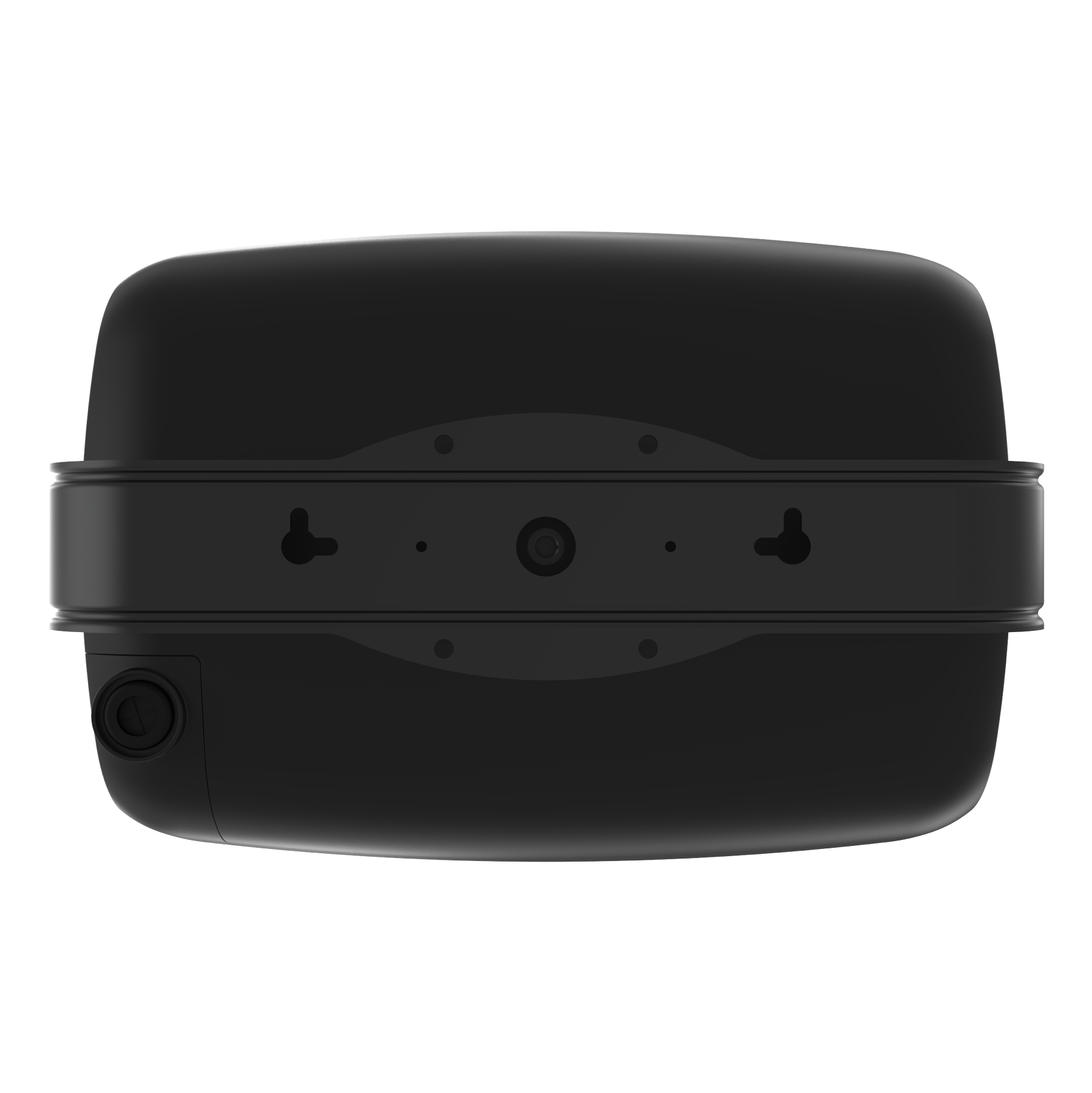

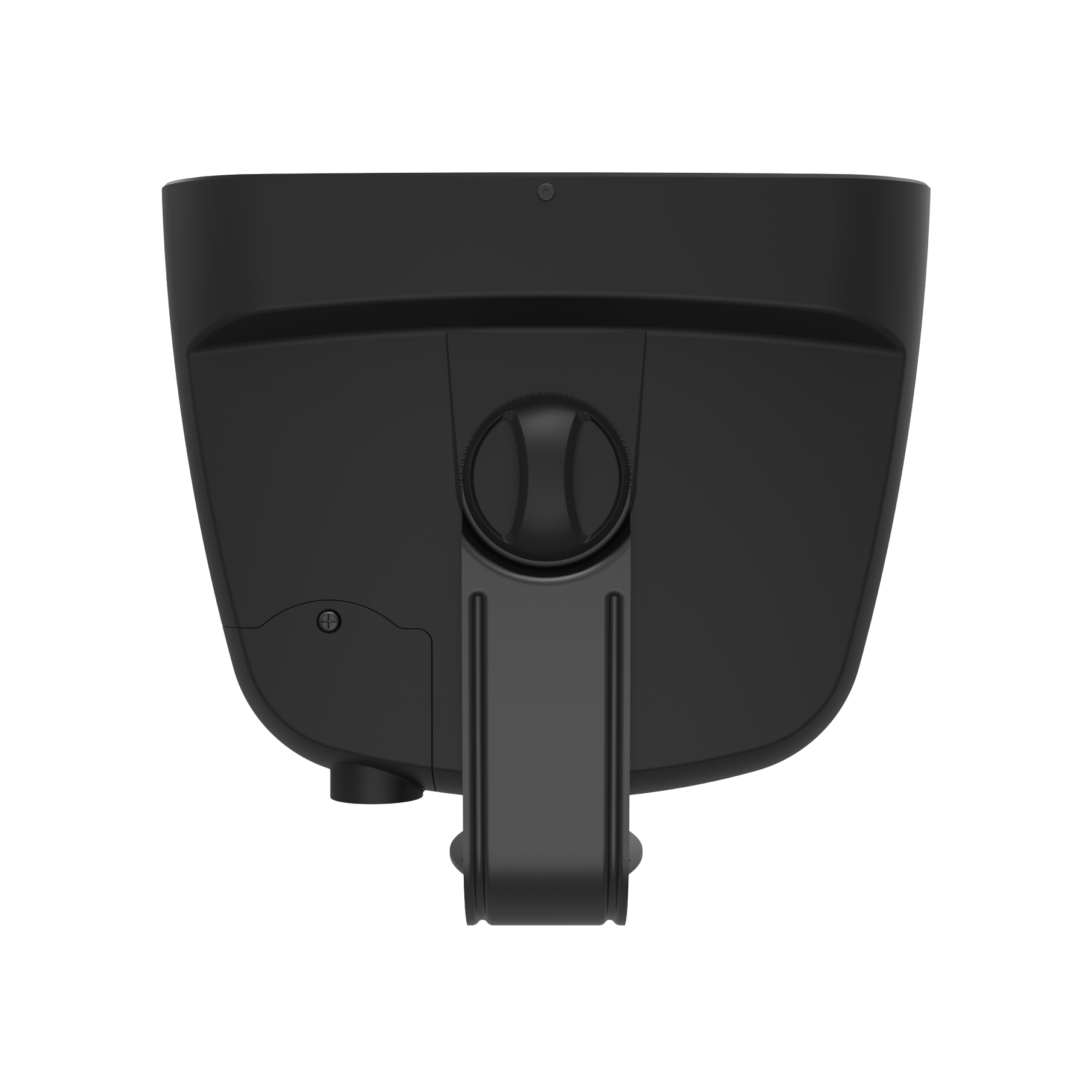

RSM-800 Full-Range 8" Indoor/Outdoor RSM Loudspeaker (Each)

MYR 4,799.00
Sold Out

Overview

Perfect for indoor and outdoor installation, the Klipsch Residential Surface Mount speakers are designed to deliver incredible acoustic clarity. Using our patented mumps technology, the RSM Series gives any space extra-wide coverage while providing even and consistent energy for your project.

Features

✅ More bass, less space with the all-new Tractrix® Hyperfold Port™
✅ IPX5 Rated for even the most challenging commercial environments
✅ Set Screws on grille
✅ 1” Titanium compression driver for effortless, high-clarity detail
✅ Dual 5-way binding post for versatile installation

Get notified by email when this product is in stock.

Overview

Perfect for indoor and outdoor installation, the Klipsch Residential Surface Mount speakers are designed to deliver incredible acoustic clarity. Using our patented mumps technology, the RSM Series gives any space extra-wide coverage while providing even and consistent energy for your project.

Features

✅ More bass, less space with the all-new Tractrix® Hyperfold Port™
✅ IPX5 Rated for even the most challenging commercial environments
✅ Set Screws on grille
✅ 1” Titanium compression driver for effortless, high-clarity detail
✅ Dual 5-way binding post for versatile installation



    • FREQUENCY RESPONSE 52Hz-20kHz +/- 4dB, 44Hz -10dB

    • POWER HANDLING 100 watts (21V) 50Hz-10kHz (400 watts peak)

    • CALC. MAX. CONT. OUTPUT 109dB

    • SENSITIVITY 92dB

    • COVERAGE 100° +/- 20° 1kHz-20kHz

    • DIRECTIVITY INDEX 7dB +/- 1.5dB 800Hz-20kHz

    • NOMINAL IMPEDANCE 8 ohms 4.2 ohms at 150Hz minimum

    • ACOUSTIC CROSSOVER 2kHz

    • TRANSDUCERS 8” woofer 1” titanium compression driver, on a K-1200M horn/tweeter bridge

    • ENCLOSURE MATERIAL All Weather ABS Plastic, Paintable

    • IP RATING IPX5

    • ENCLOSURE TUNING Sealed Vented via 3 folded Tractrix ports

    • INPUT CONNECTORS Dual 5-way binding post

    • DIMENSIONS [WITH BRACKET] 15.5”(394mm) x 12”(305mm) x 9.31”(237mm) [11.12”(283mm)]

    • WEIGHT 15.75 lbs (7.15kg)
