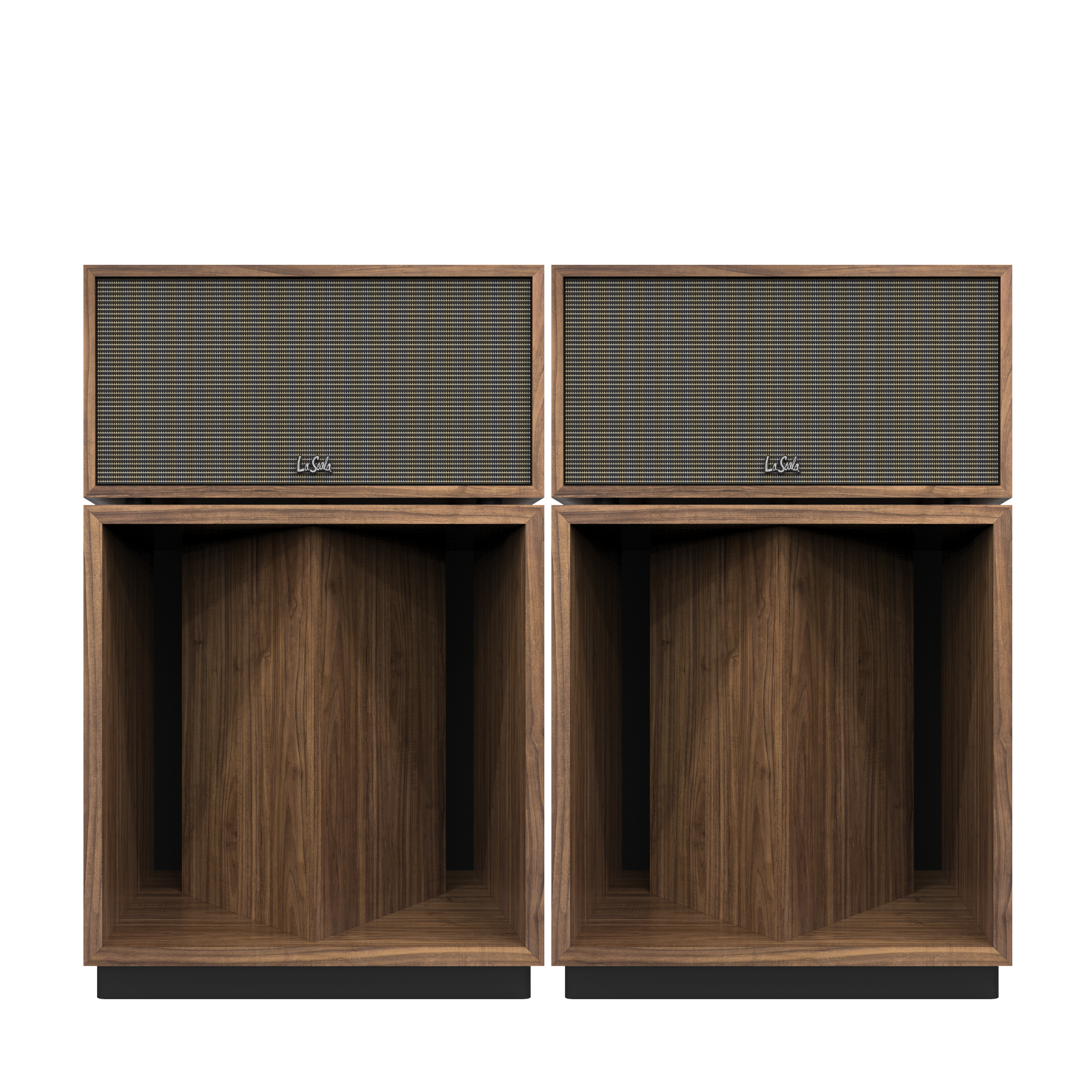

La Scala AL6 (Pair) Premium Fully Horn-Loaded Loudspeaker

MYR 127,999.00
Sold Out

Overview

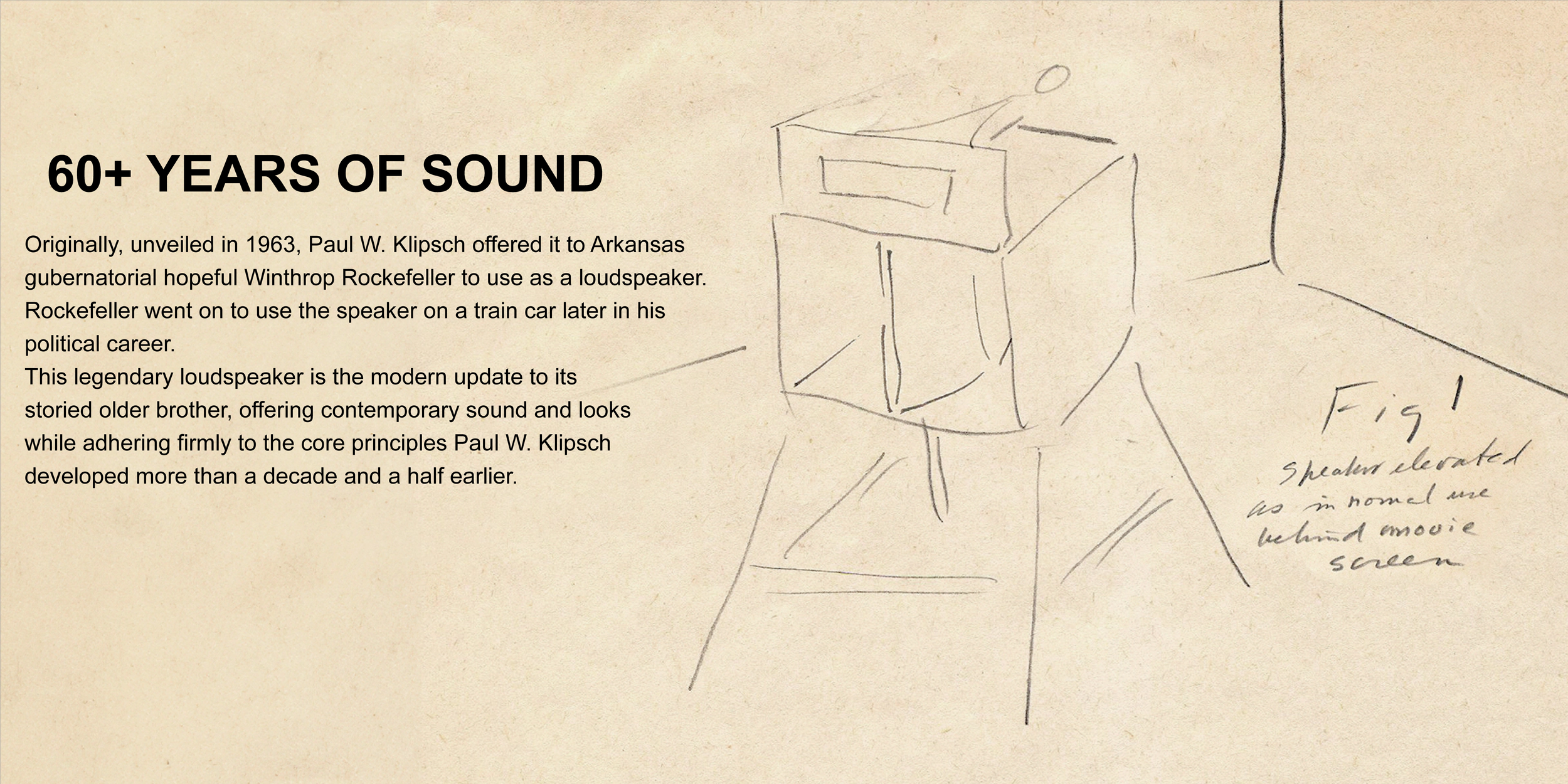

La Scala AL6 is a legendary 3‑way, fully horn‑loaded loudspeaker that delivers unmatched efficiency and crystal‑clear sound. First introduced in 1963, it combines heritage design with cutting‑edge acoustic technology for powerful, lifelike music and cinema experiences.

Key Features

✅ Fully horn‑loaded 3‑way design for maximum efficiency

✅ New extended phase plug for cleaner high‑frequency dispersion

✅ Larger midrange compression driver with Tractrix® horn & Mumps technology

✅ Patented horn‑loaded, vented bass system with 12″ woofer

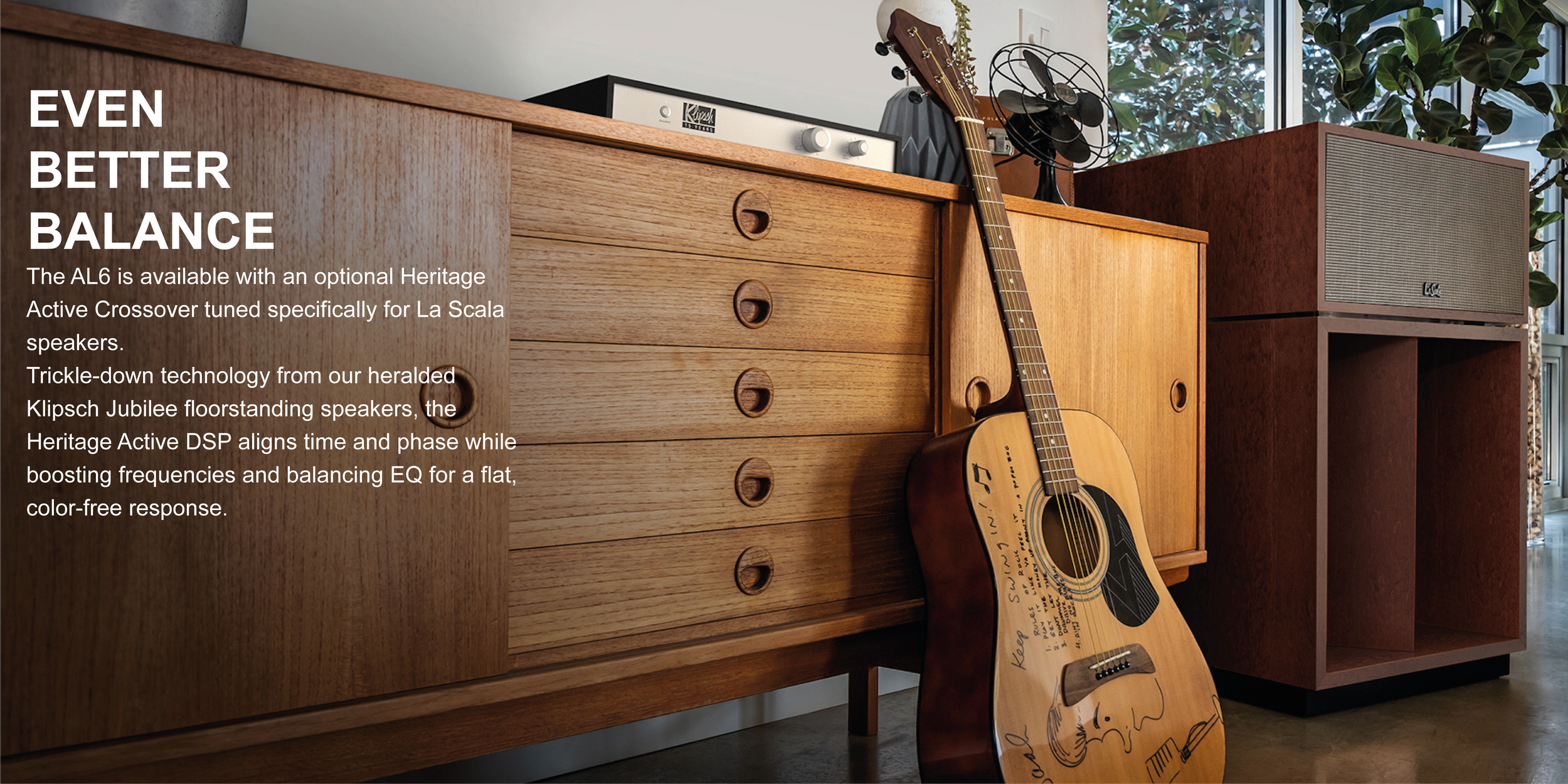

✅ Optional Heritage Active DSP Crossover for perfect alignment

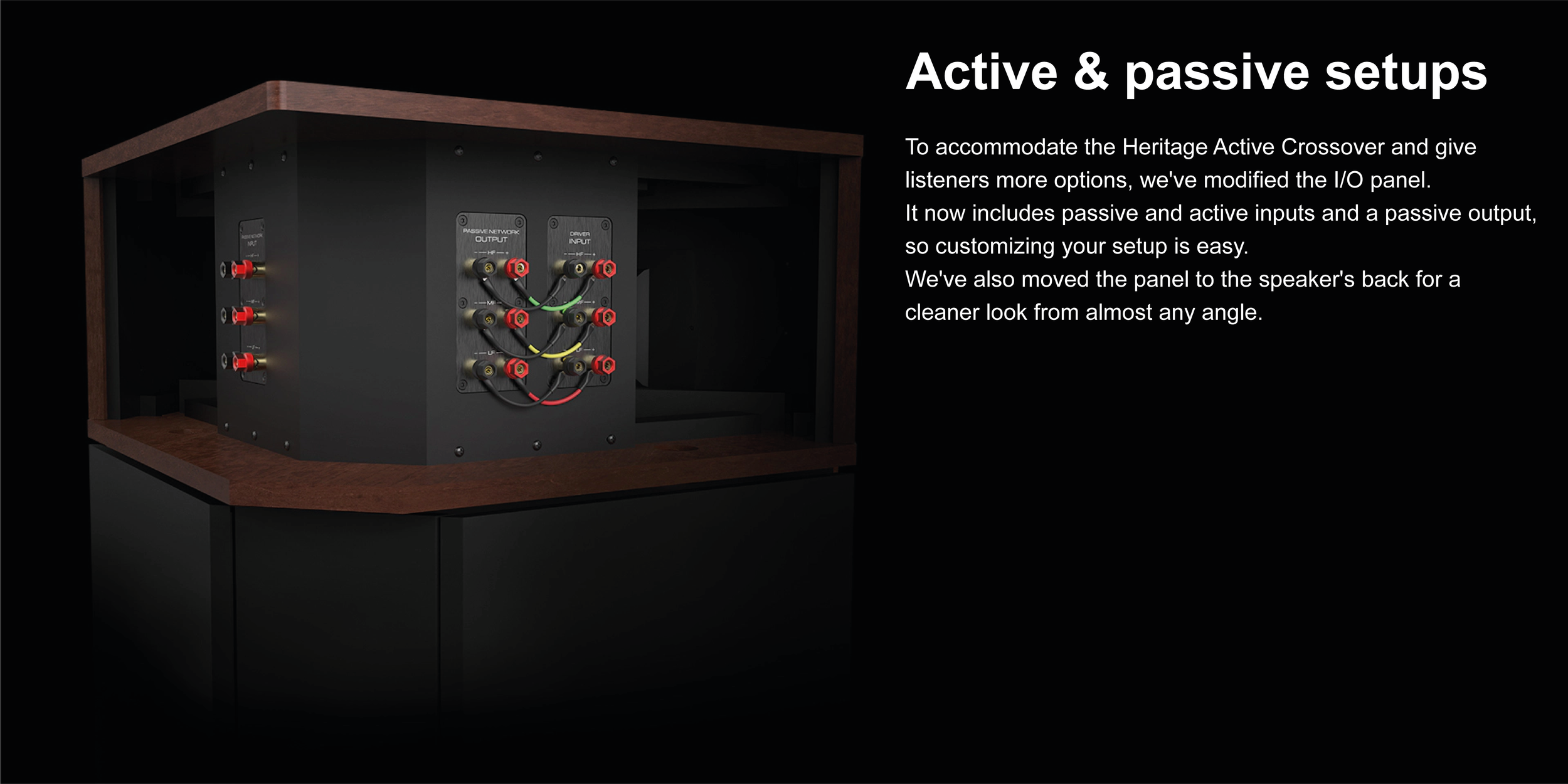

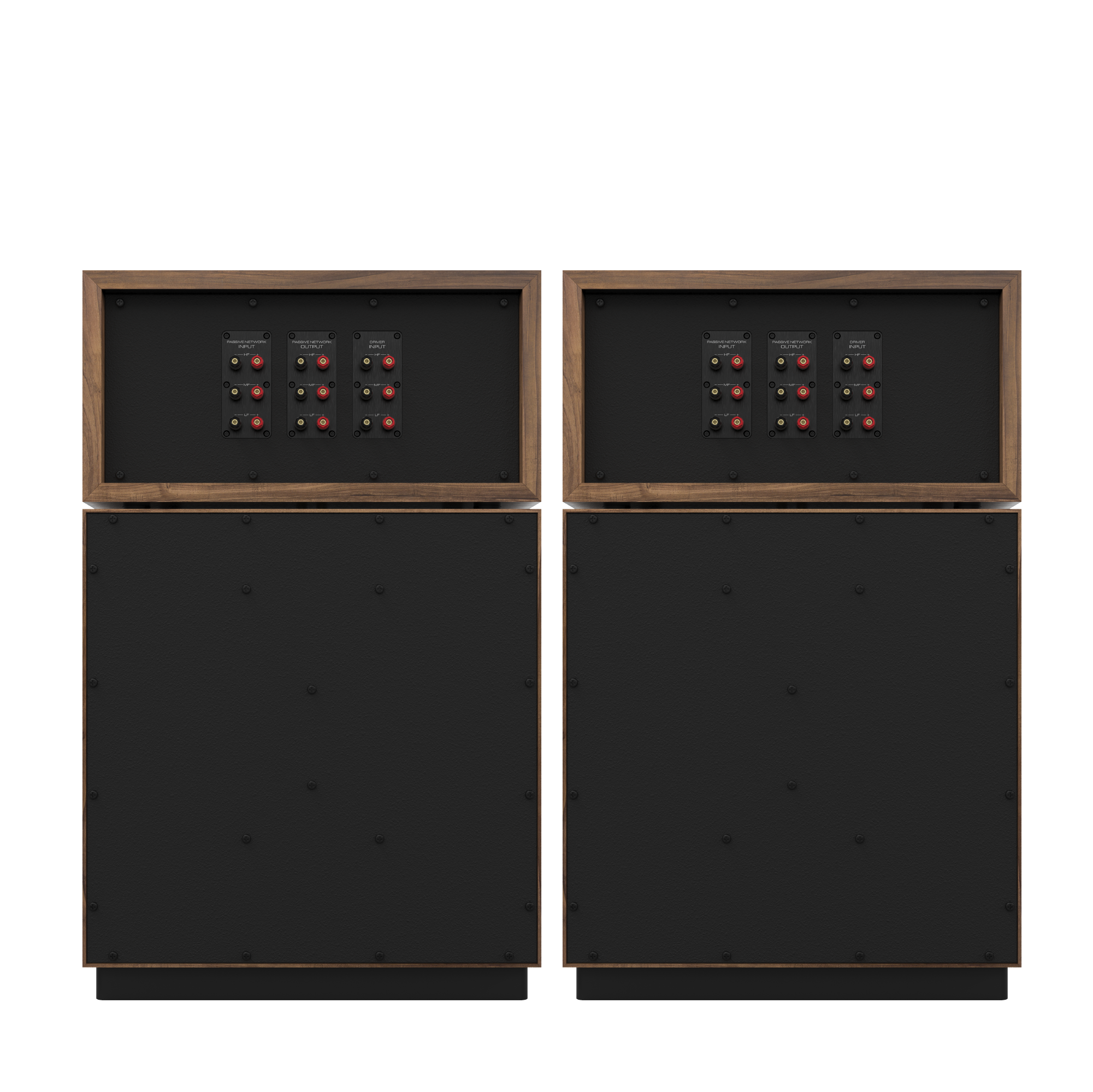

✅ Redesigned I/O panel with passive & active inputs/outputs

✅ Furniture‑grade finishes with metallic grille and veneered MDF

Get notified by email when this product is in stock.

Overview

La Scala AL6 is a legendary 3‑way, fully horn‑loaded loudspeaker that delivers unmatched efficiency and crystal‑clear sound. First introduced in 1963, it combines heritage design with cutting‑edge acoustic technology for powerful, lifelike music and cinema experiences.

Key Features

✅ Fully horn‑loaded 3‑way design for maximum efficiency

✅ New extended phase plug for cleaner high‑frequency dispersion

✅ Larger midrange compression driver with Tractrix® horn & Mumps technology

✅ Patented horn‑loaded, vented bass system with 12″ woofer

✅ Optional Heritage Active DSP Crossover for perfect alignment

✅ Redesigned I/O panel with passive & active inputs/outputs

✅ Furniture‑grade finishes with metallic grille and veneered MDF



  • PASSIVE NETWORK

    • FREQUENCY RESPONSE 40Hz-19kHz (+/- 4 dB), 1/4 space anechoic

    • SENSITIVITY 103dB, Pink noise, 2.83V, 1m, 40 Hz-19kHz

    • POWER HANDLING (CONT/PEAK) 100W/400W

    • MAXIMUM SPL 120dB, pink noise, 1m, 20v, 40Hz-19kHz

    • NOMINAL IMPEDANCE 8 ohms, 3.2 ohm minimum at 70Hz

    • CROSSOVER FREQUENCY 425Hz, 2900Hz

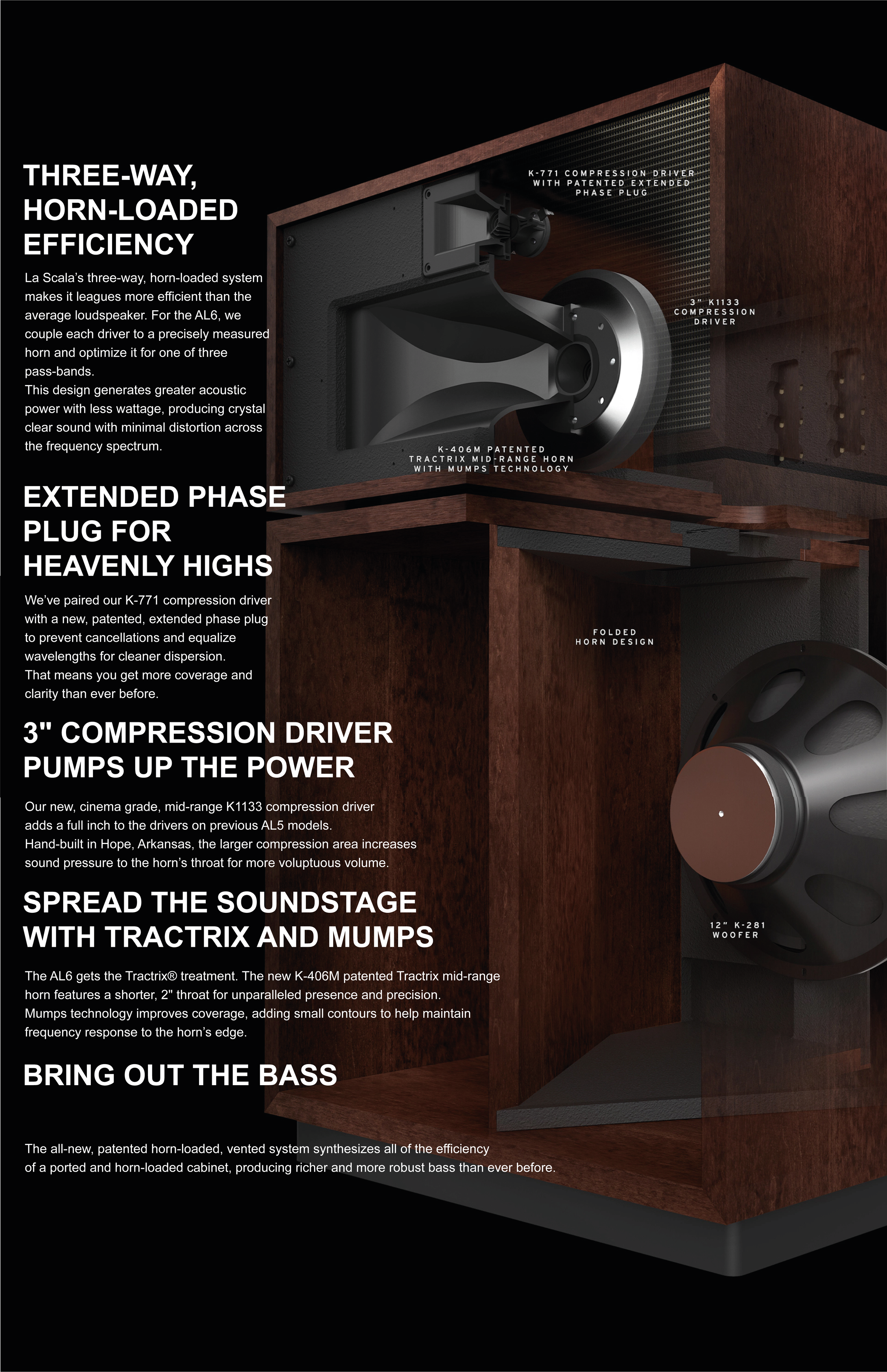

    • HIGH FREQUENCY DRIVER K-771 compression driver with extended phase plug on a K-792 horn

    • MIDRANGE K-1133-HP 3” compression driver on K-406M Tractrix horn with Mumps technology

    • LOW FREQUENCY DRIVER K-281 12” woofer in a horn-loaded vented system

    • ENCLOSURE MATERIAL Veneered MDF

    • INPUTS 5 way metal binding post

    • HEIGHT 39.125” (99.4cm)

    • WIDTH 24.5” (62.25cm)

    • DEPTH 25.5” (64.7cm)

    • WEIGHT 205lbs(93kg)

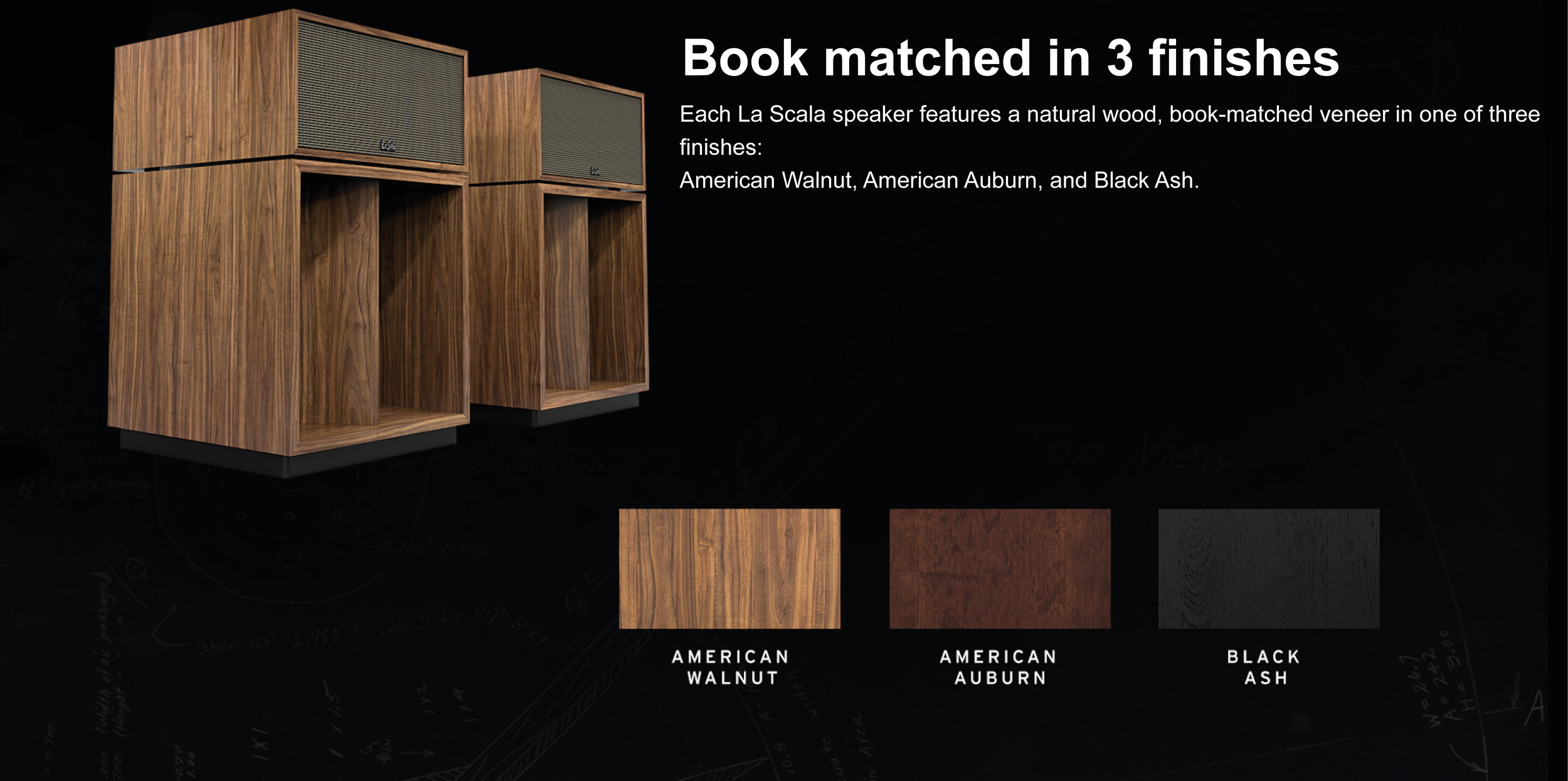

    • FINISH American Auburn, Black Ash, or American Walnut

    • GRILLE CLOTH Silver Metallic

    • UTILIZES PATENTS 11985477, 11902738, 7686129

    ACTIVE NETWORK

    • FREQUENCY RESPONSE 34Hz-20kHz (+/- 2.5 dB), 1/8 space anechoic


📥 Catalogue Download
