Klipschorn AK7 (Pair) Premium Fully Horn-Loaded Loudspeaker

MYR 159,999.00
Sold Out

Overview

AK7 is the ultimate expression of Paul W. Klipsch’s vision — a 3‑way fully horn‑loaded loudspeaker with legendary efficiency, powerful bass, and stunning clarity. Since 1946, the Klipschorn has brought the concert hall into the living room, now updated with modern technologies for unmatched performance and flexibility.

Key Features

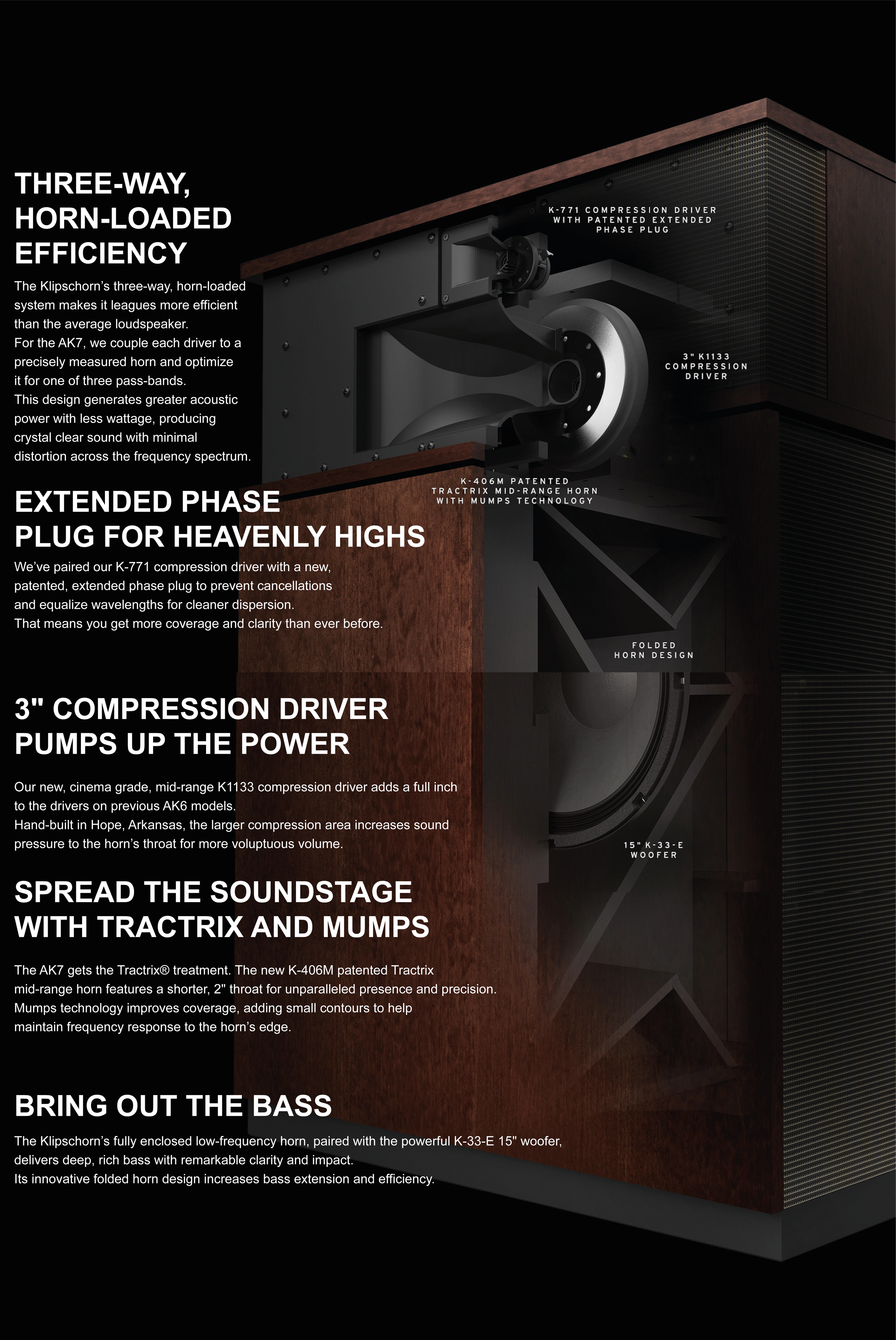

✅ Fully horn‑loaded 3‑way system with exceptional efficiency

✅ Patented extended phase plug for clean, detailed highs

✅ Larger midrange compression driver with Tractrix® horn & Mumps technology

✅ Powerful K‑33‑E 15″ woofer in folded horn for deep, impactful bass

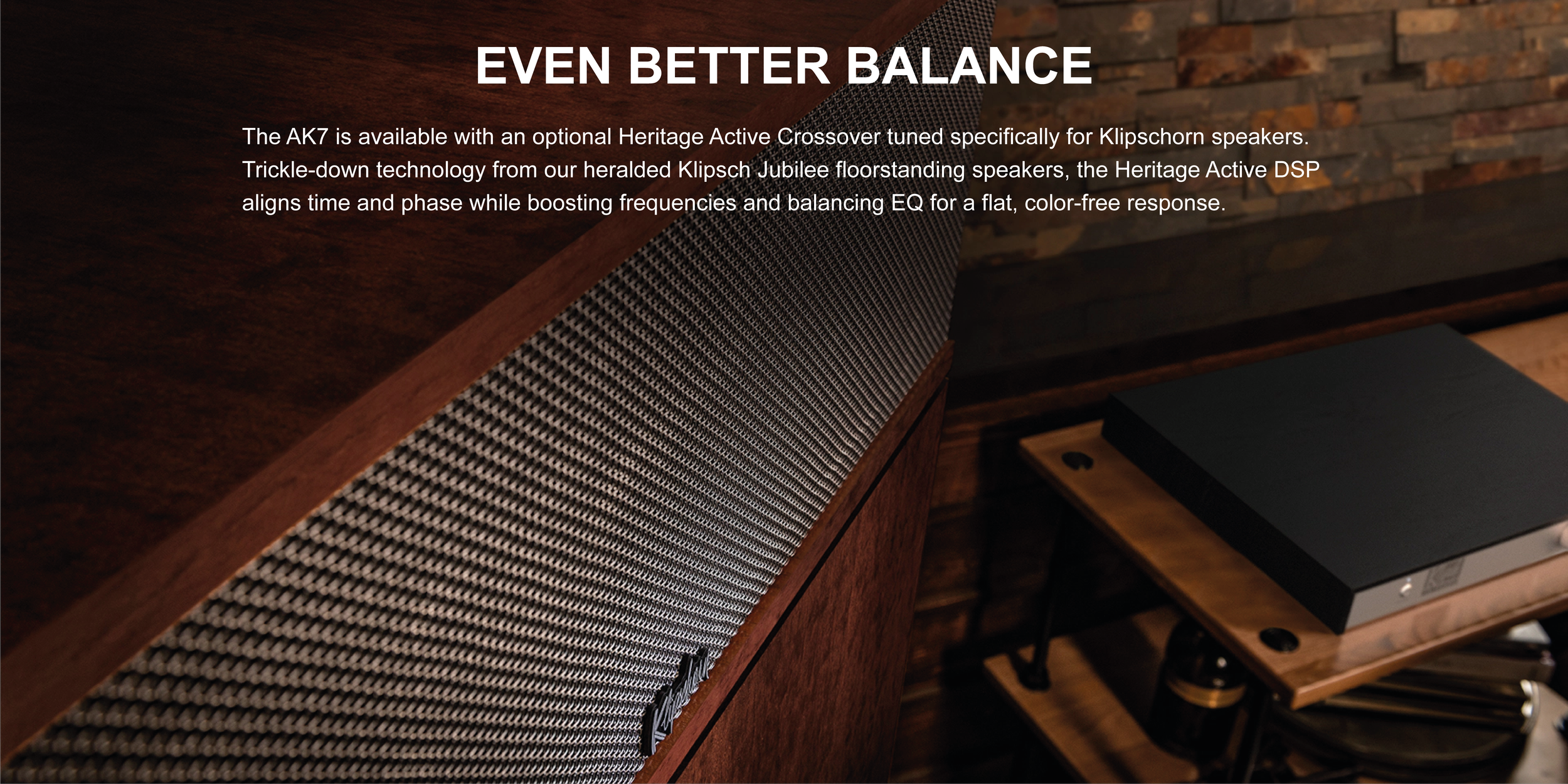

✅ Optional Heritage Active DSP Crossover for perfect alignment & EQ

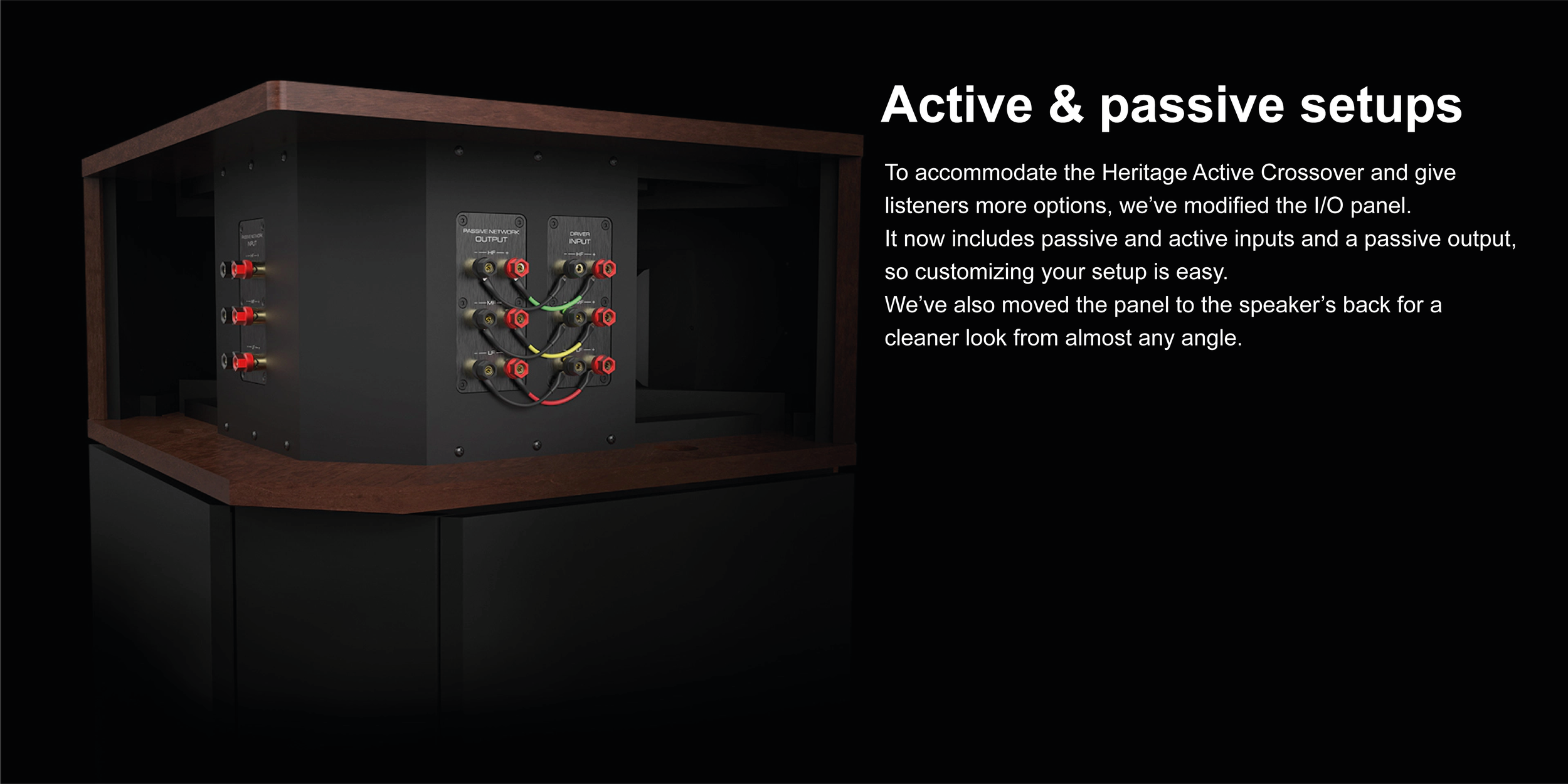

✅ Redesigned I/O panel with passive & active inputs/outputs

✅ Hand‑crafted with premium veneers and metallic grille

Get notified by email when this product is in stock.

Overview

AK7 is the ultimate expression of Paul W. Klipsch’s vision — a 3‑way fully horn‑loaded loudspeaker with legendary efficiency, powerful bass, and stunning clarity. Since 1946, the Klipschorn has brought the concert hall into the living room, now updated with modern technologies for unmatched performance and flexibility.

Key Features

✅ Fully horn‑loaded 3‑way system with exceptional efficiency

✅ Patented extended phase plug for clean, detailed highs

✅ Larger midrange compression driver with Tractrix® horn & Mumps technology

✅ Powerful K‑33‑E 15″ woofer in folded horn for deep, impactful bass

✅ Optional Heritage Active DSP Crossover for perfect alignment & EQ

✅ Redesigned I/O panel with passive & active inputs/outputs

✅ Hand‑crafted with premium veneers and metallic grille



  • PASSIVE NETWORK

    • FREQUENCY RESPONSE 34Hz-19kHz (+/- 4 dB), 1/8 space anechoic

    • SENSITIVITY 103dB, Pink noise, 2.83V, 1m. 34 Hz-19kHz

    • POWER HANDLING (CONT/PEAK) 100W/400W

    • MAXIMUM SPL 120dB, pink noise, 1m, 20v, 34Hz-19kHz

    • NOMINAL IMPEDANCE 8 ohms, 4 ohm minimum at 50Hz

    • CROSSOVER FREQUENCY 380Hz, 2900Hz

    • HIGH FREQUENCY DRIVER K-771 compression driver with extended phase plug on a K-792 horn

    • MIDRANGE K-1133-HP 3” compression driver on a K-406 horn

    • LOW FREQUENCY DRIVER K-33-E 15” woofer in a fully horn loaded system

    • ENCLOSURE MATERIAL Veneered MDF, 1/2” plywood

    • INPUTS 5 way metal binding post

    • HEIGHT 53.25” (135.25cm)

    • WIDTH 31.5” (80cm)

    • DEPTH 28.125” (71.5cm)

    • WEIGHT 260lbs(118kg)

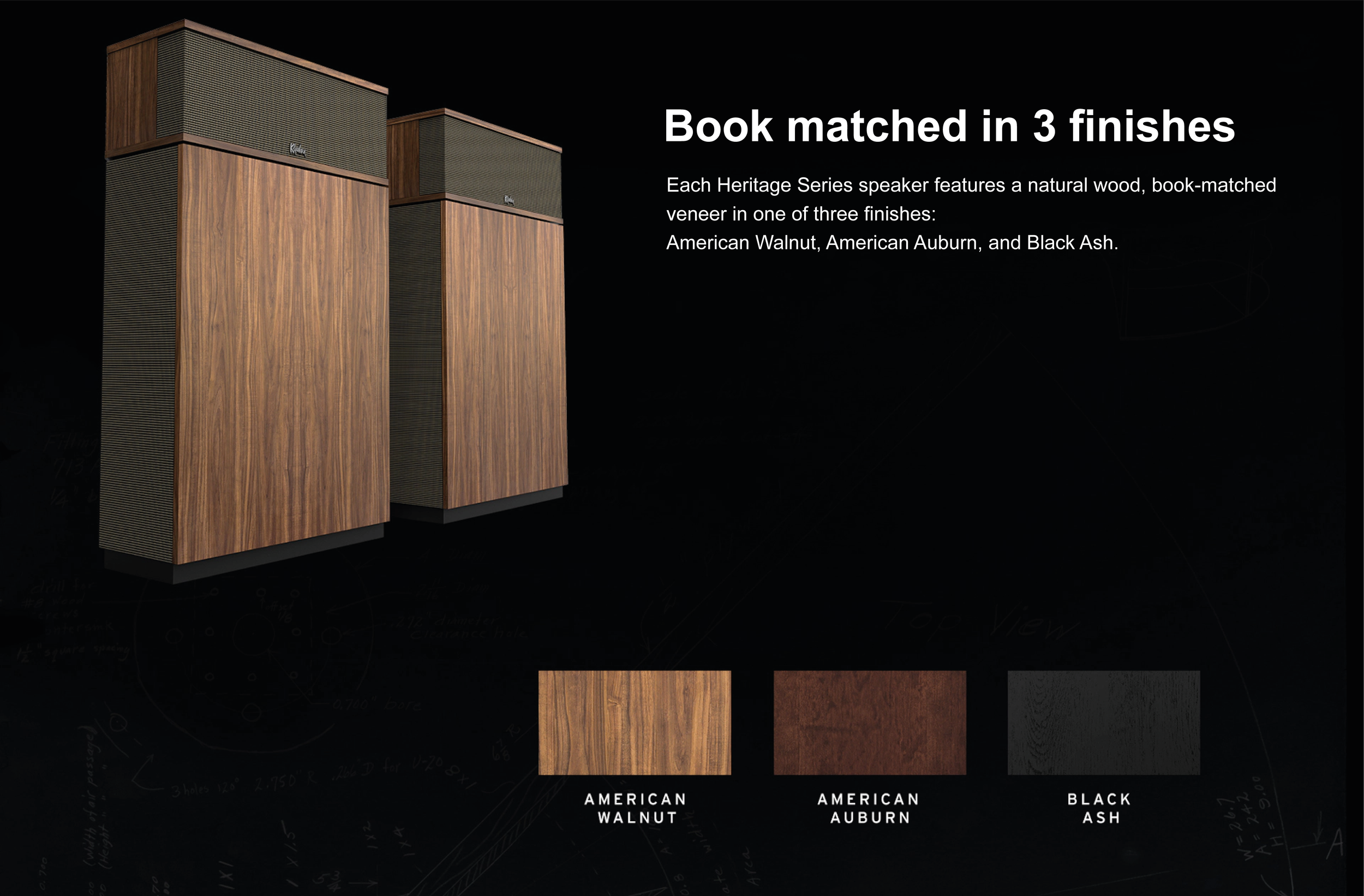

    • FINISH American Auburn, Black Ash, or American Walnut

    • GRILLE CLOTH Silver Metallic

    • UTILIZES PATENTS 11902738, 7686129

    ACTIVE NETWORK

    • FREQUENCY RESPONSE 34Hz-20kHz (+/- 2.5 dB), 1/8 space anechoic


📥 Catalogue Download
