FREQUENCY RESPONSE (+1.75 dB/- 3 dB) 18Hz – 20kHz
SENSITIVITY1 Avg. Sensitivity of HF - 110dB Avg. Sensitivity of LF - 107dB
POWER HANDLING (CONT/PEAK) LF - 300W / 1200W HF - 100W / 400W
MAXIMUM SPL 125 dB/1m (Using DSP)
NOMINAL IMPEDANCE LF - 8 ohms, minimum 3.5 ohms at 160Hz HF - 16 ohms, miminum 7.6 ohms at 4.3kHz

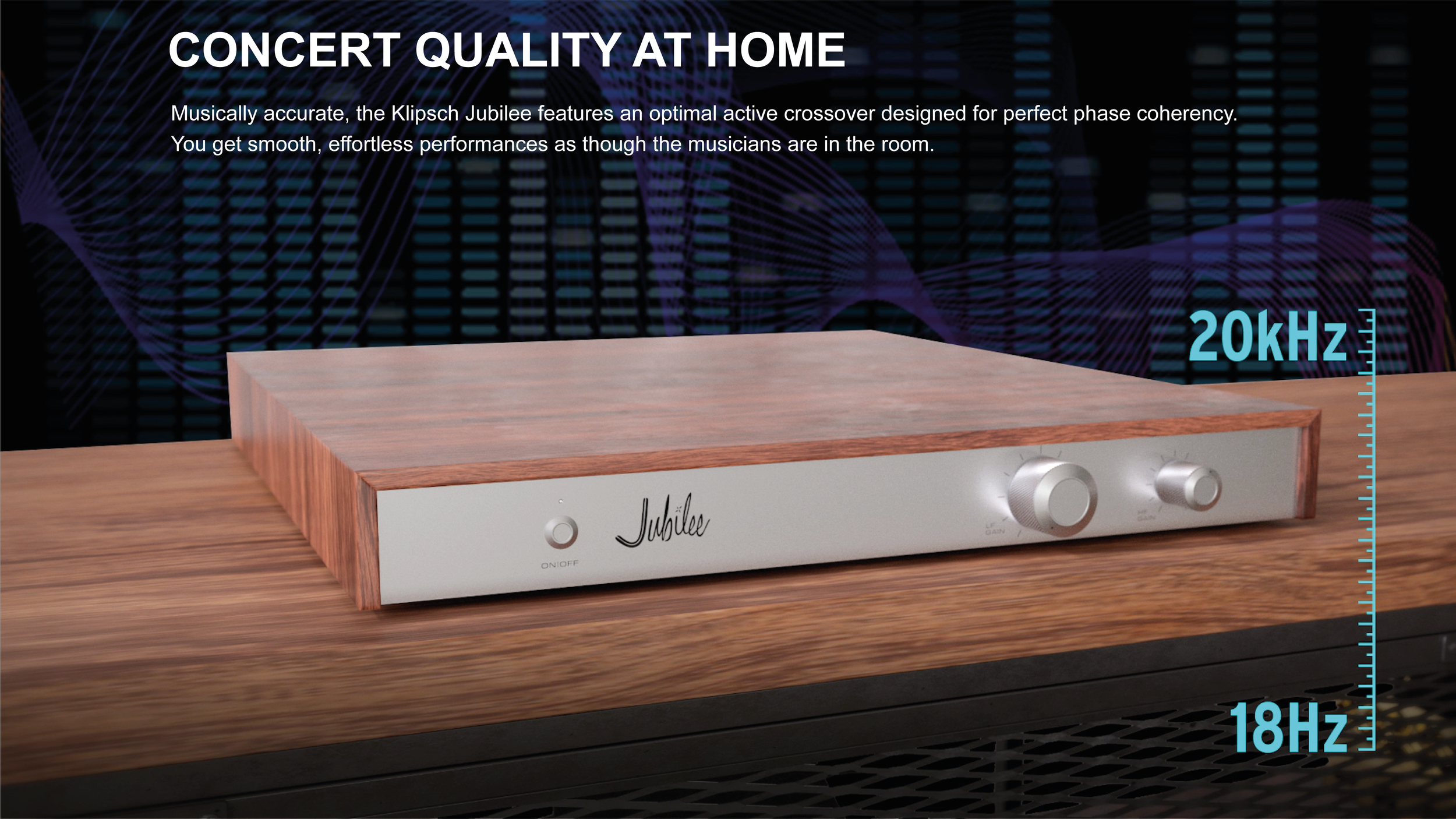

CROSSOVER FREQUENCY 340 Hz

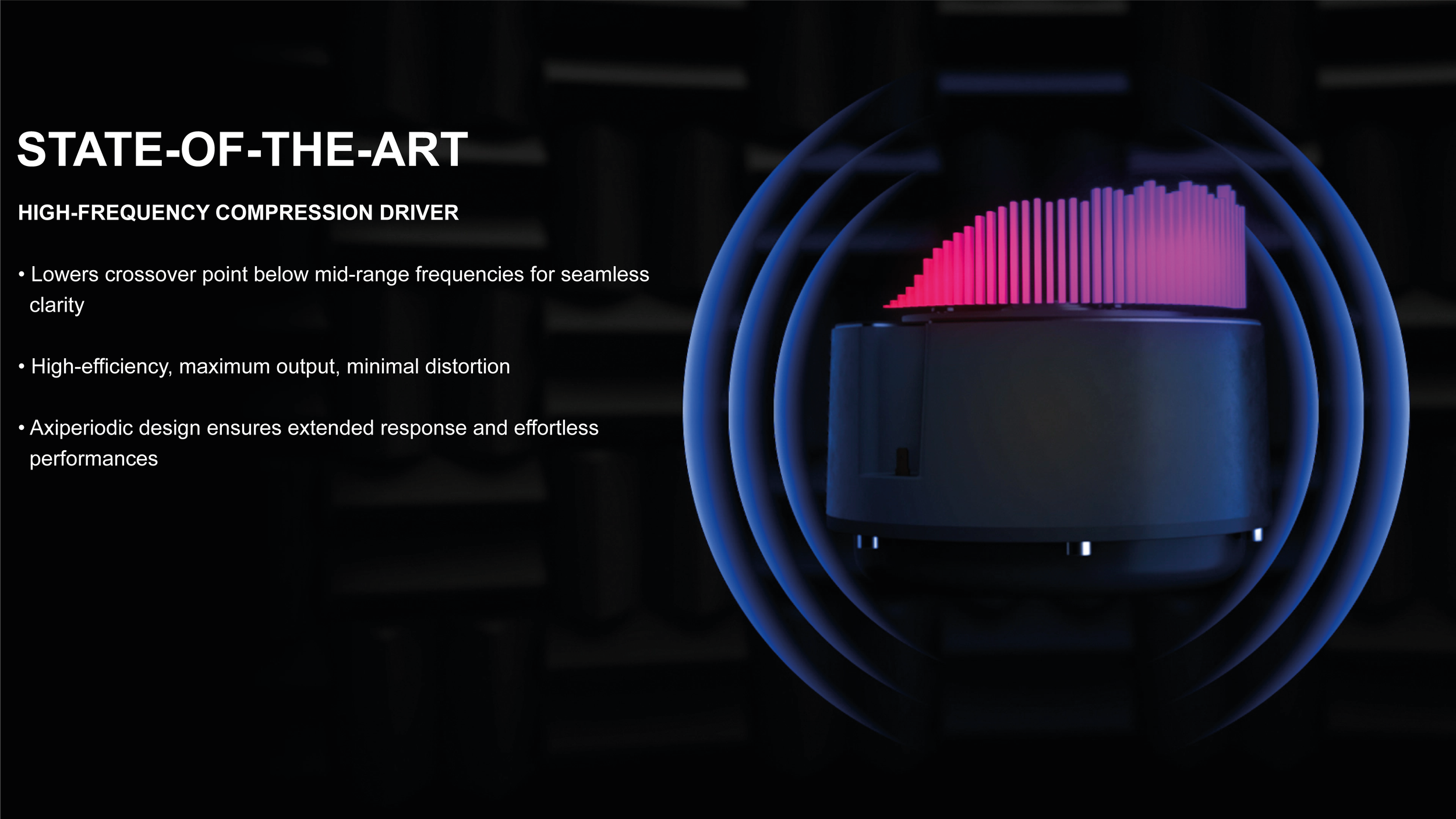

HIGH FREQUENCY DRIVER K-693 7” Titanium Diaphragm Compression Driver with 5” Voice Coil

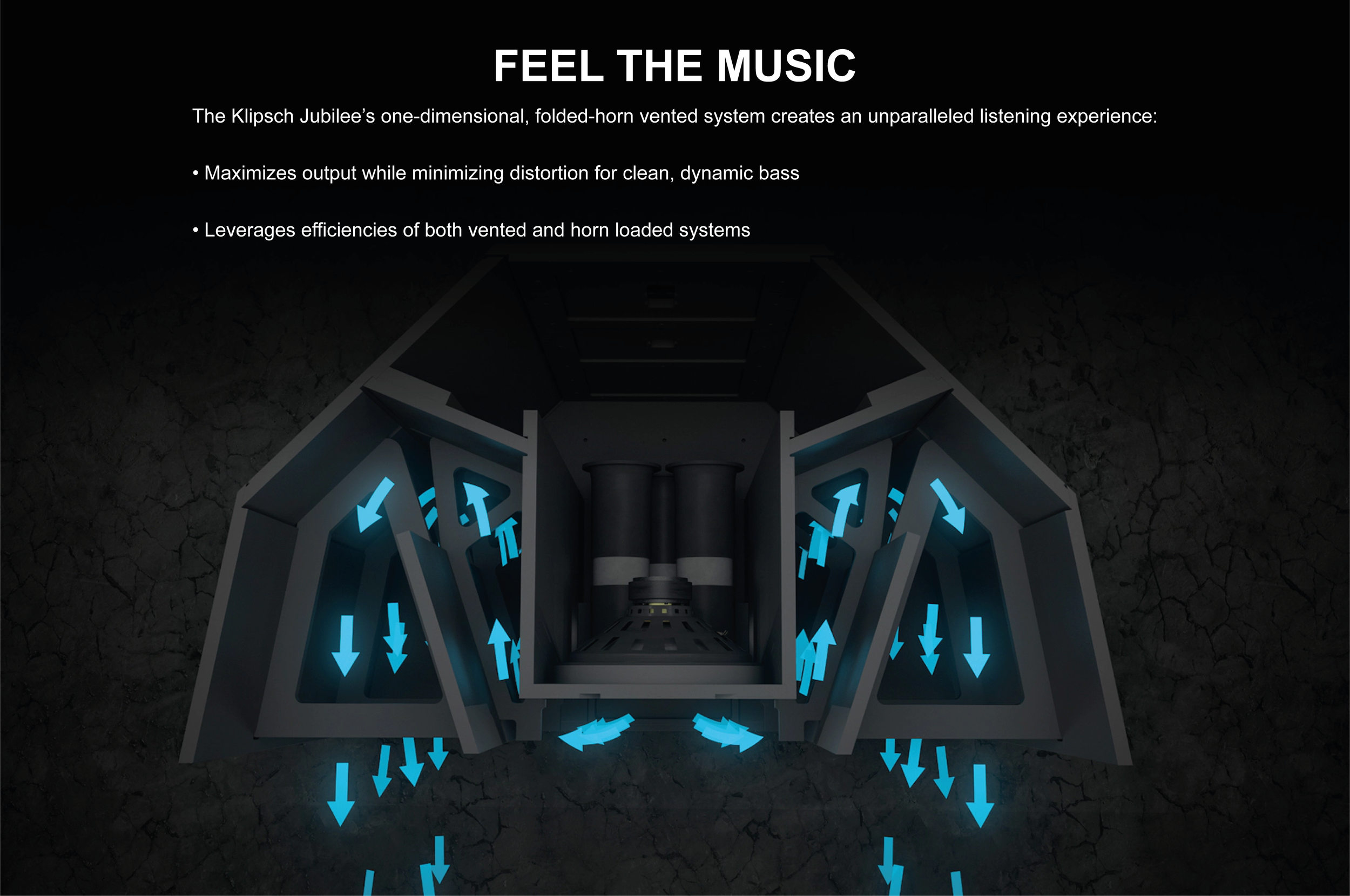

LOW FREQUENCY DRIVER Dual K-283 12” Fiber-Composite cone woofers
ENCLOSURE MATERIAL MDF

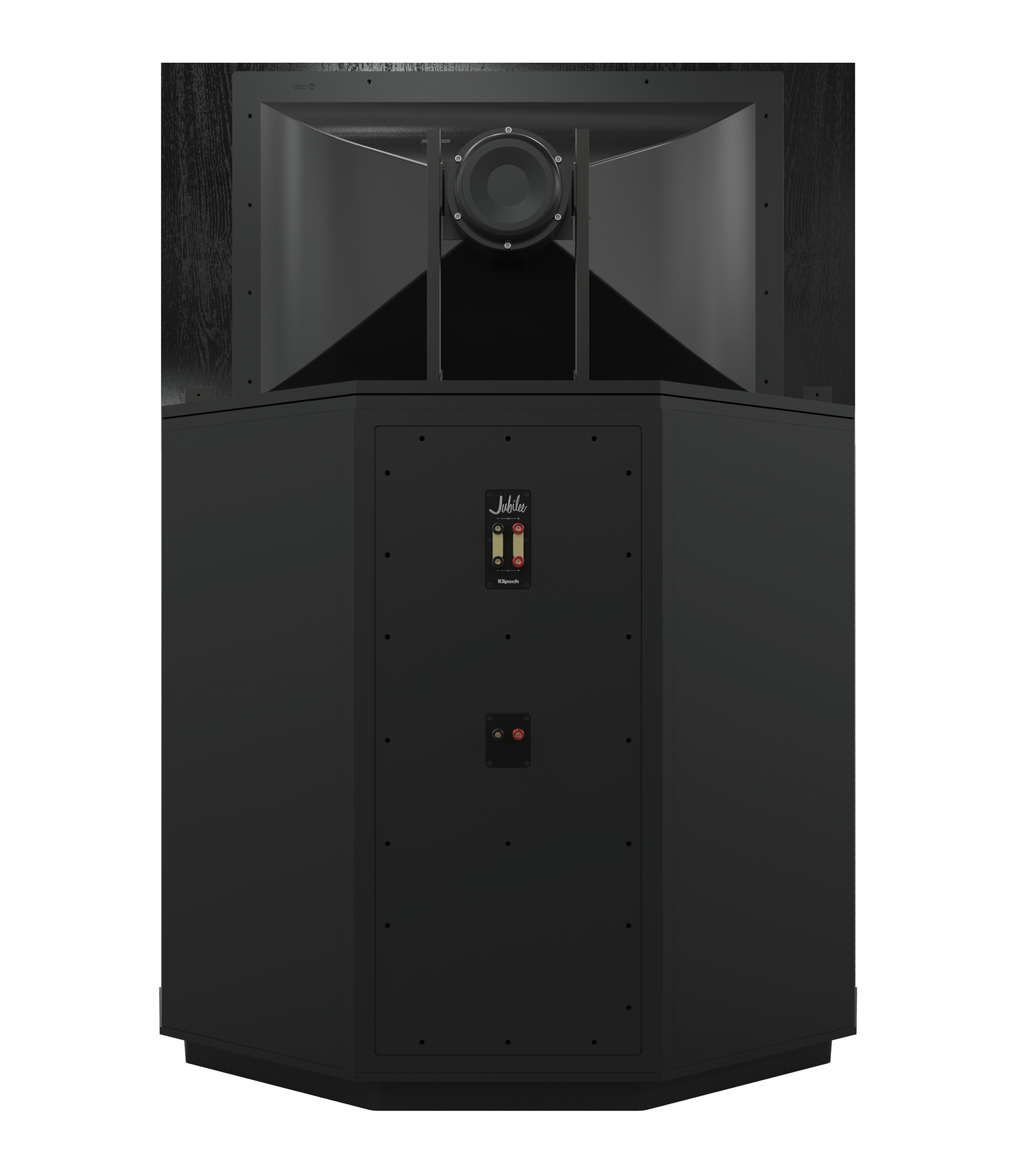

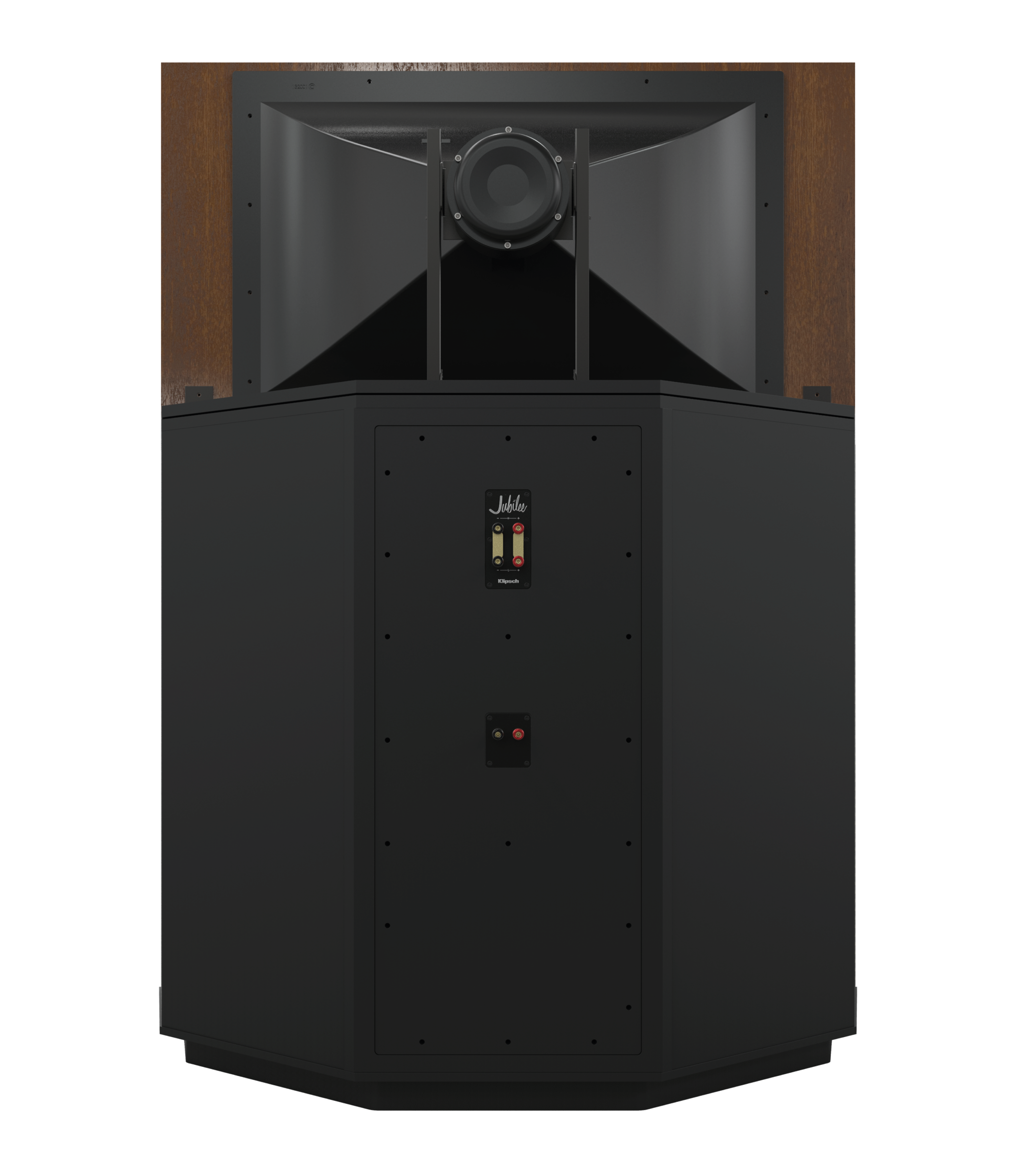

INPUTS 5 way binding post
HEIGHT 69.5” (175.26 cm)
WIDTH 50.25” (127 cm)
DEPTH 30.25” (76.2 cm)
WEIGHT LF - 330 lbs (149.68 kg) HF - 78 lbs (35.38 kg)

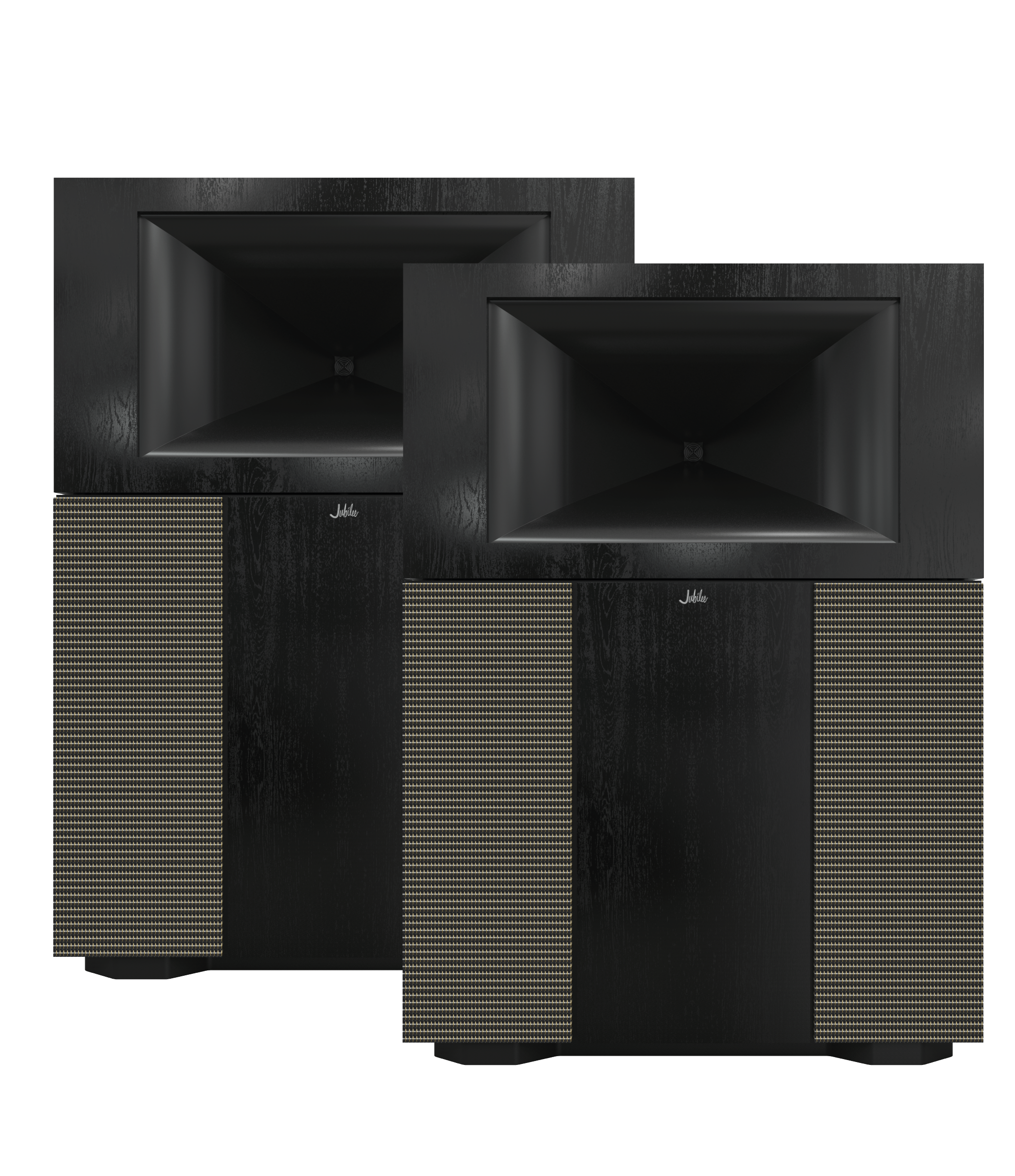

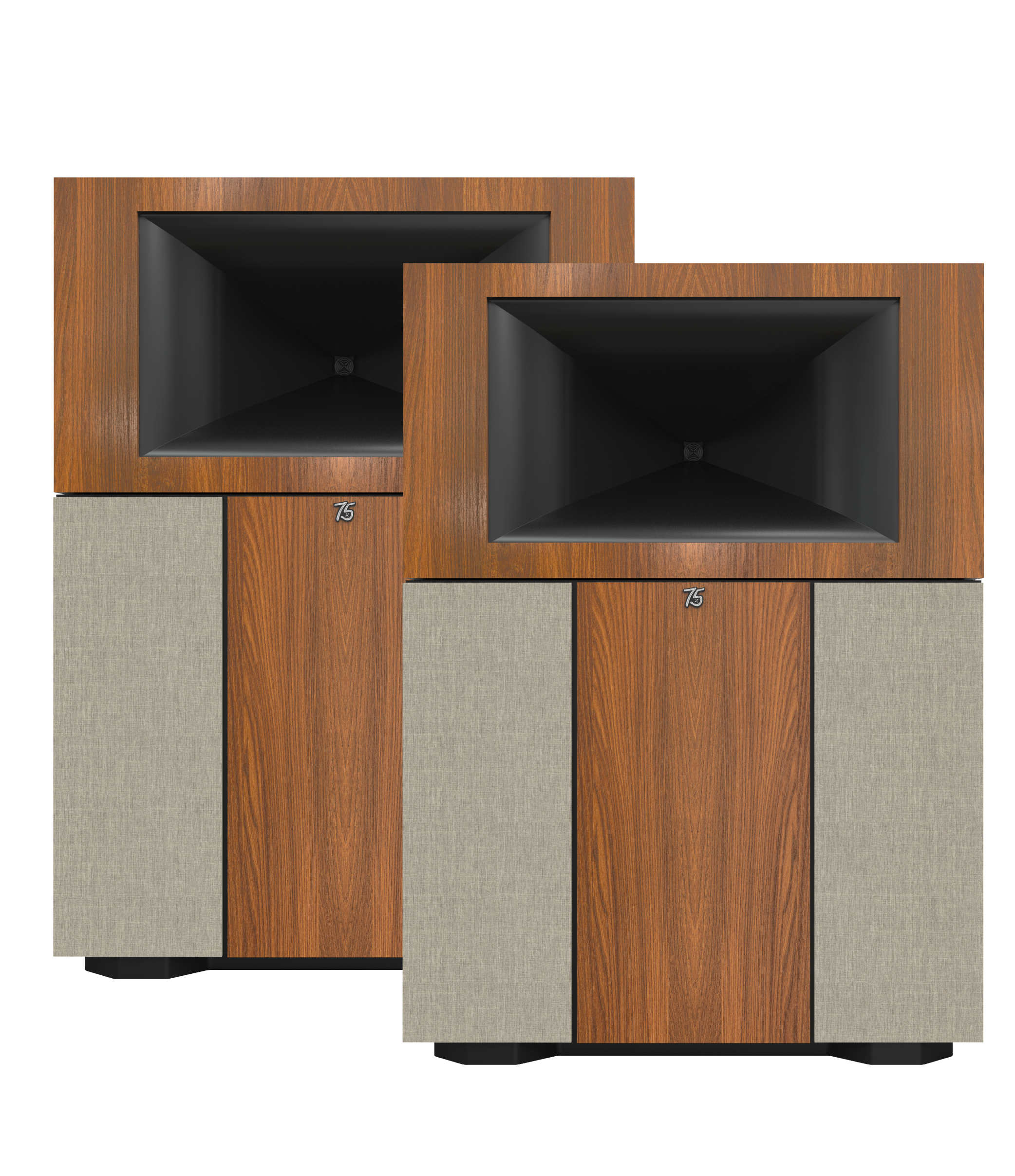

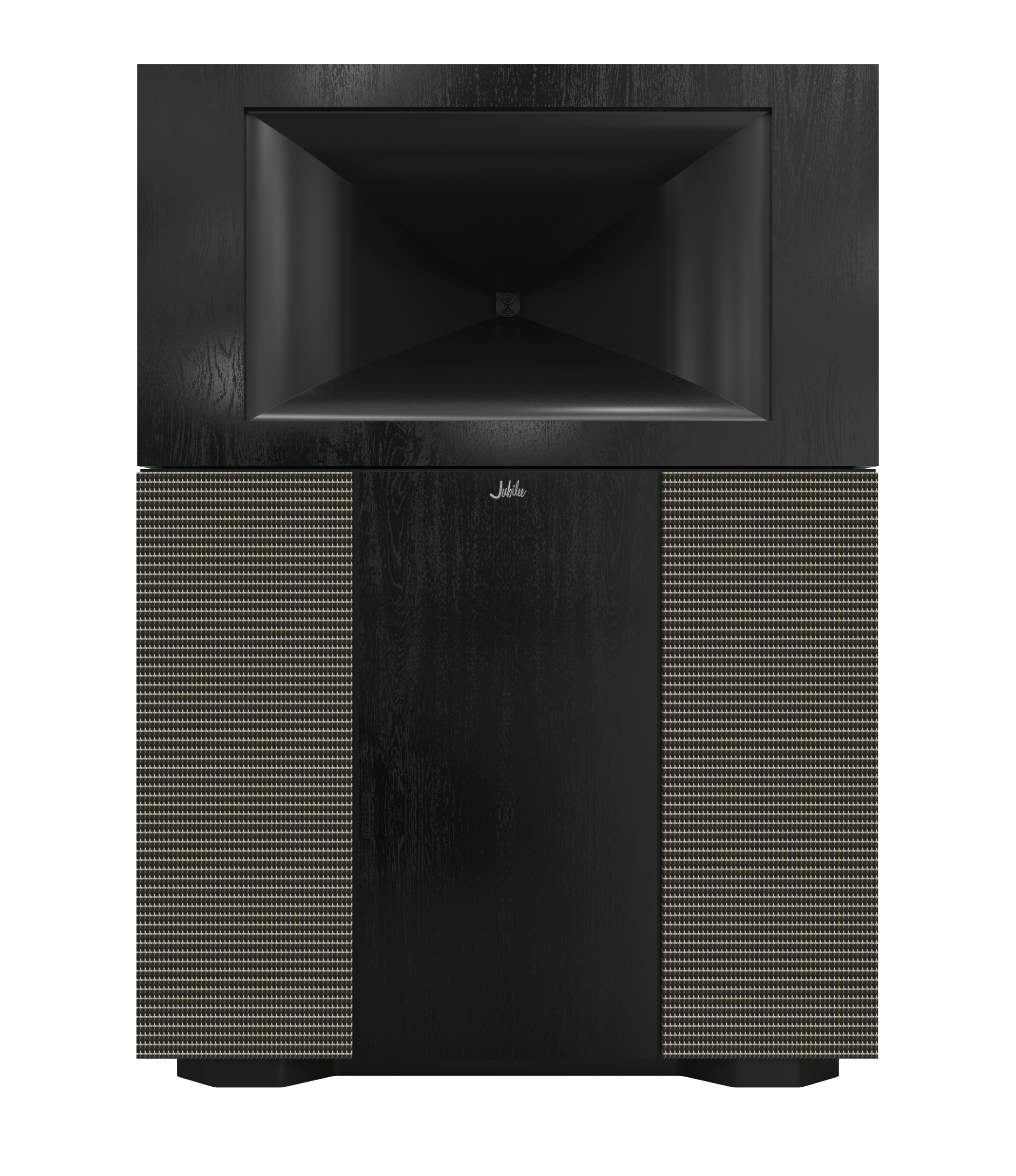

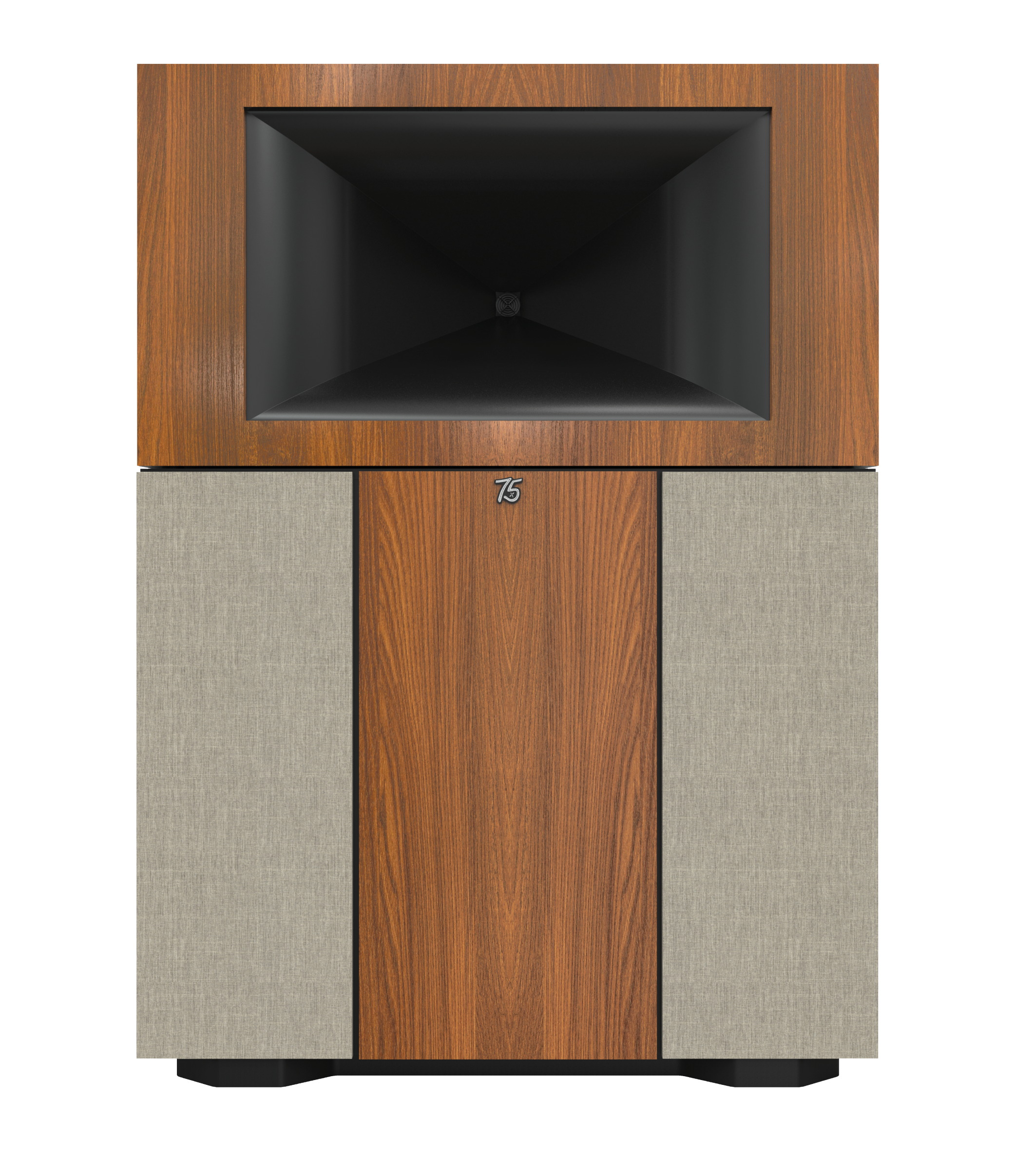

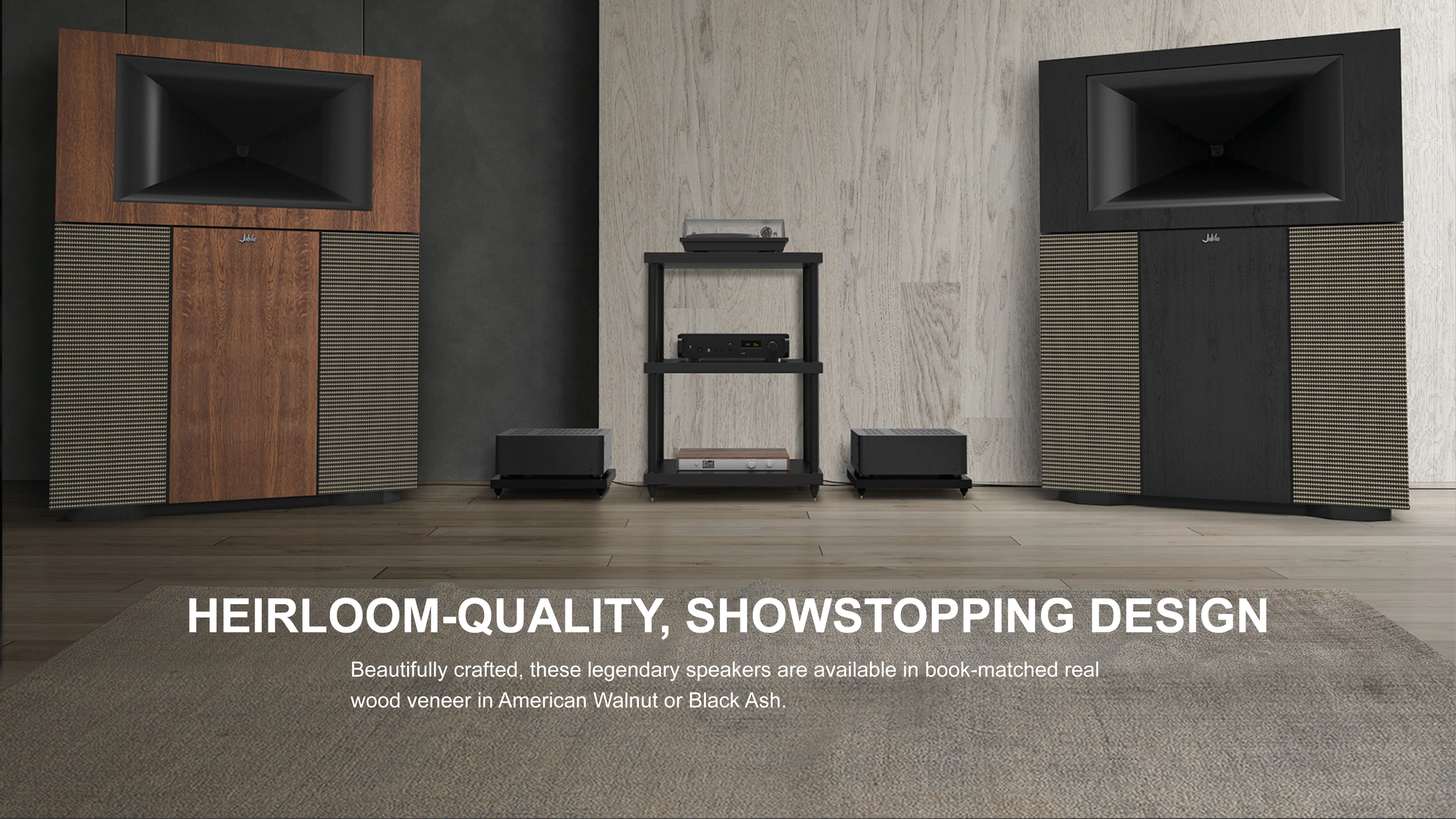

FINISH Black Ash, American Walnut GRILLE Salt and Pepper Cloth
