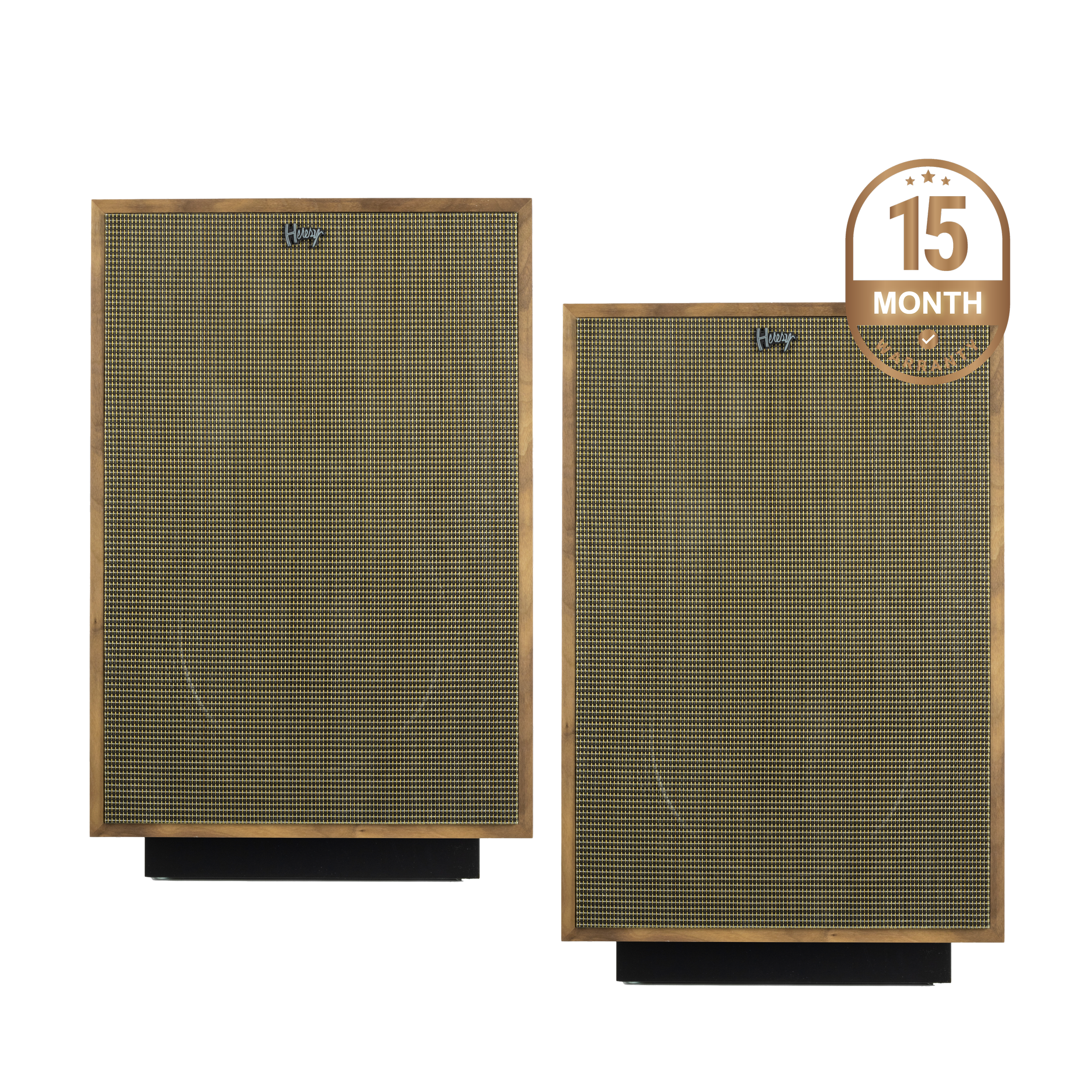

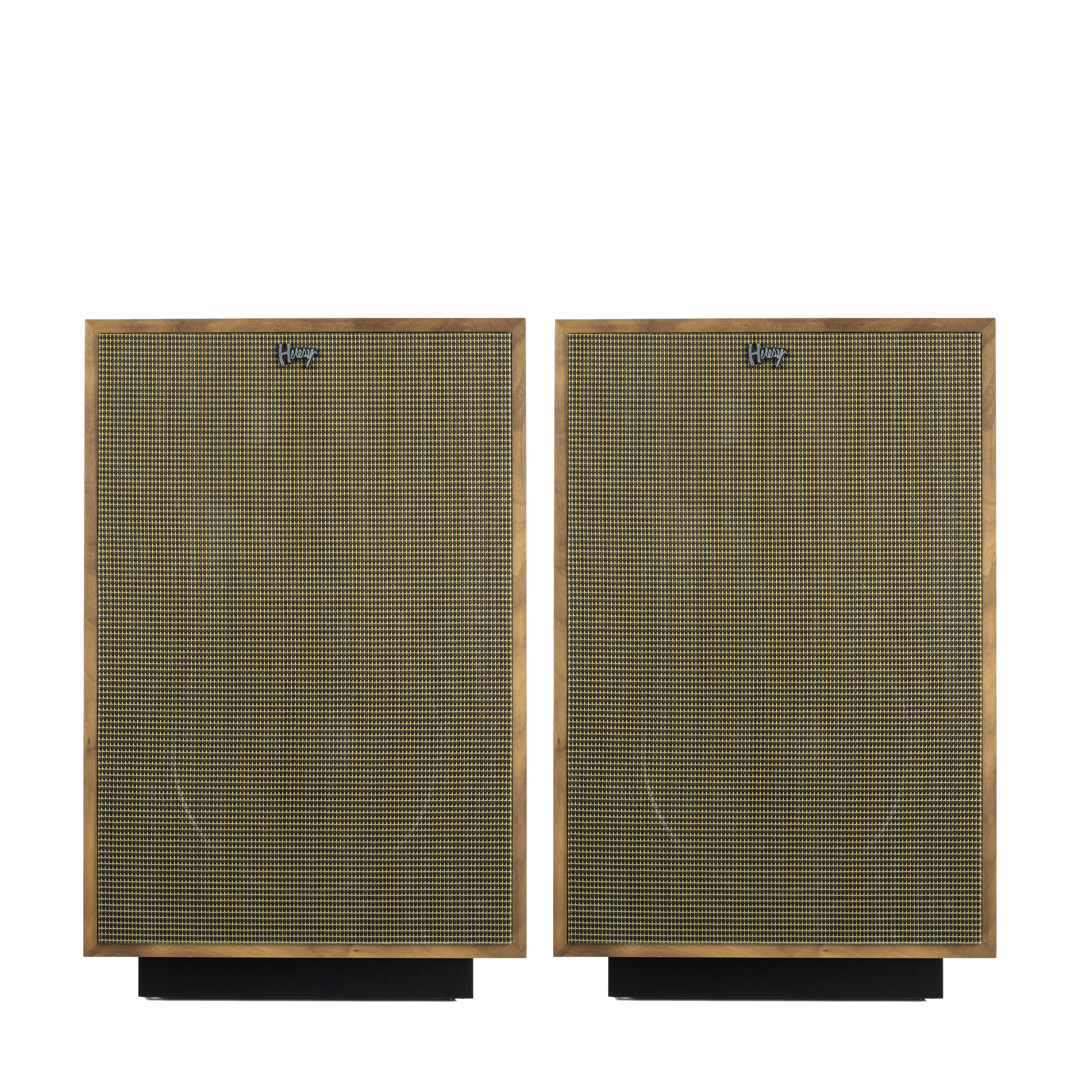

Heresy IV (Pair) Floorstanding Speaker

MYR 26,999.00

Overview

Heresy IV is a compact 3‑way 12” horn‑loaded loudspeaker, hand‑crafted in the USA since 1957. Famous for its flexibility of placement and iconic sound, it brings high efficiency, dynamic performance, and timeless craftsmanship to any room.

Key Features

✅ Compact, high-efficiency 3-way horn-loaded loudspeaker

✅ New Tractrix® port design for deeper, cleaner bass

✅ Titanium tweeter and polyimide midrange compression drivers

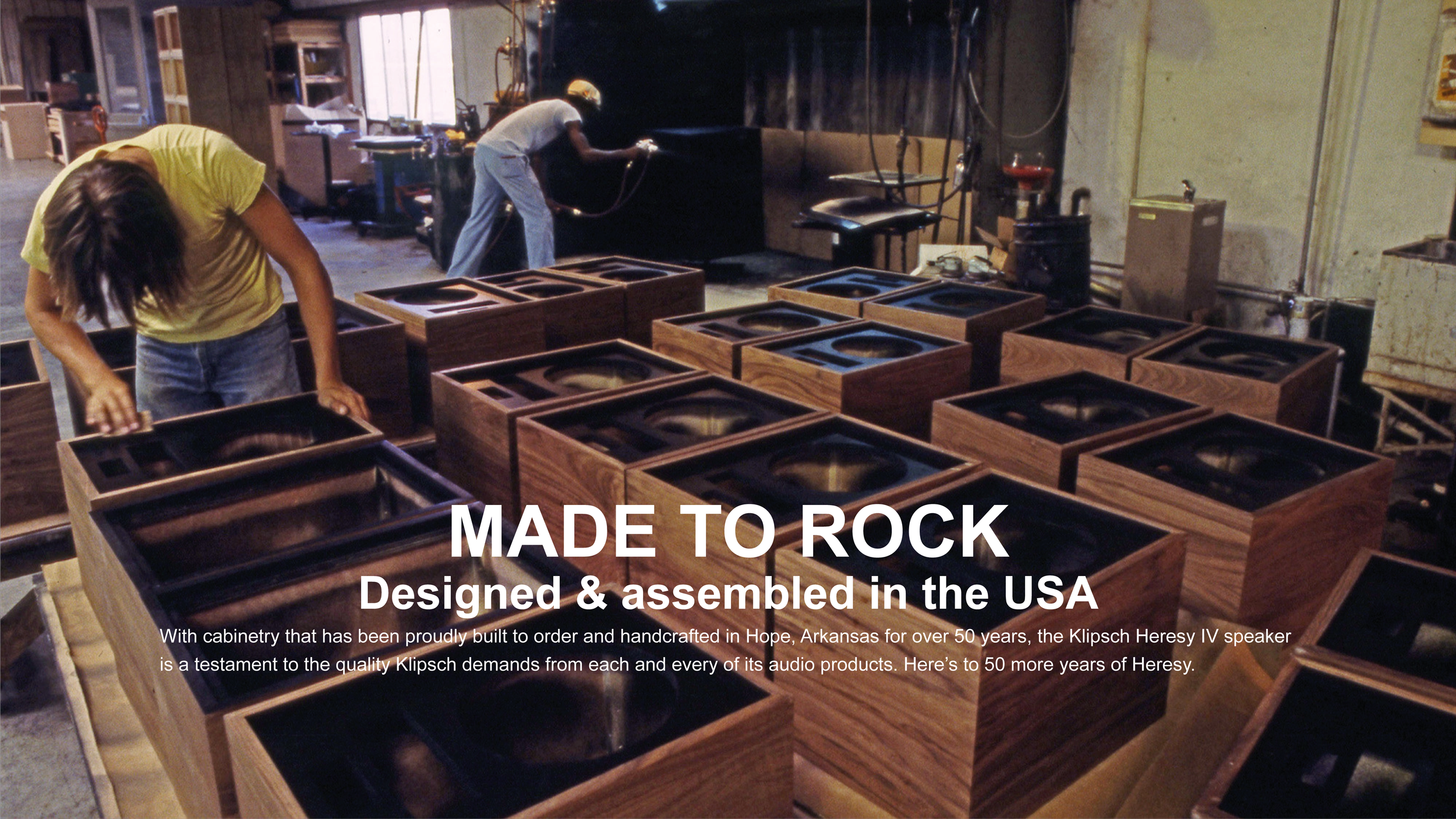

✅ Hand‑built in the USA with book‑matched wood veneers

✅ Premium bi‑wire/bi‑amp capable input panel

✅ Removable riser base for versatile placementx

Overview

Heresy IV is a compact 3‑way 12” horn‑loaded loudspeaker, hand‑crafted in the USA since 1957. Famous for its flexibility of placement and iconic sound, it brings high efficiency, dynamic performance, and timeless craftsmanship to any room.

Key Features

✅ Compact, high-efficiency 3-way horn-loaded loudspeaker

✅ New Tractrix® port design for deeper, cleaner bass

✅ Titanium tweeter and polyimide midrange compression drivers

✅ Hand‑built in the USA with book‑matched wood veneers

✅ Premium bi‑wire/bi‑amp capable input panel

✅ Removable riser base for versatile placementx



    • FREQUENCY RESPONSE (+/- 4 dB) 48-20k +/-4dB

    • SENSITIVITY 99dB @ 2.83V / 1m

    • POWER HANDLING (CONT/PEAK) 100W/400W

    • MAXIMUM SPL 116dB Continuous

    • NOMINAL IMPEDANCE 8 ohms Compatible

    • CROSSOVER FREQUENCY HF: 4500Hz MF: 850Hz

    • HIGH FREQUENCY DRIVER K-107-TI 1” (2.54cm) Titanium diaphragm compression driver

    • MIDRANGE K-702 1.75” (4.45cm) polyimide diaphragm compression driver

    • LOW FREQUENCY DRIVER K-28-E 12” (30.48cm) Fiber-composite cone woofer

    • ENCLOSURE MATERIAL MDF

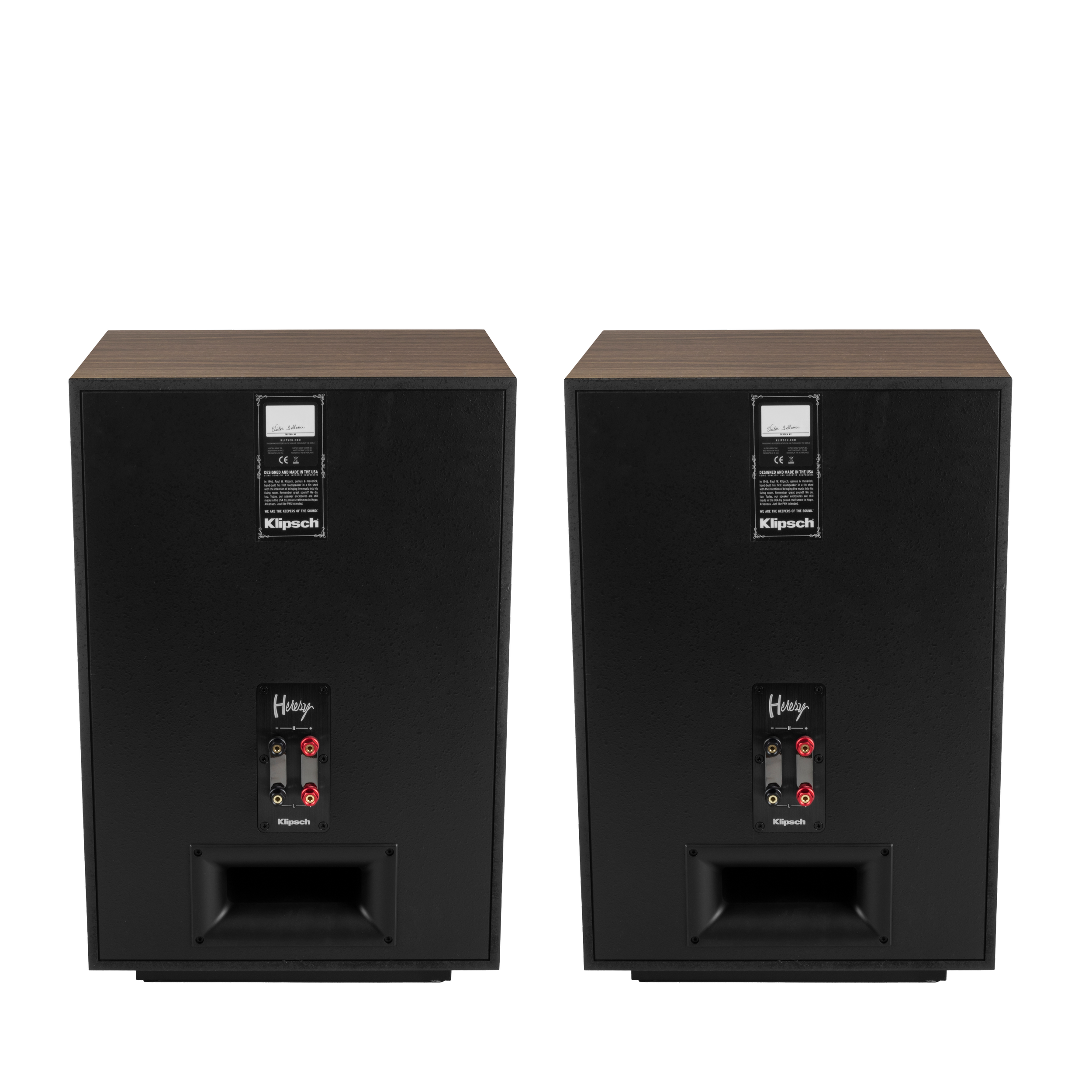

    • INPUTS Dual binding posts / bi-wire / bi-amp

    • HEIGHT 24.81” (63.01cm)

    • WIDTH 15.5” (39.37cm)

    • DEPTH 13.25” (33.66cm)

    • WEIGHT 45lbs (20.41kg)
