FREQUENCY RESPONSE 87-25kHz +/- 3dB SENSITIVITY* 94dB @ 2.83V / 1m*
POWER HANDLING (CONT/PEAK) 125W/500W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 650Hz/1900Hz

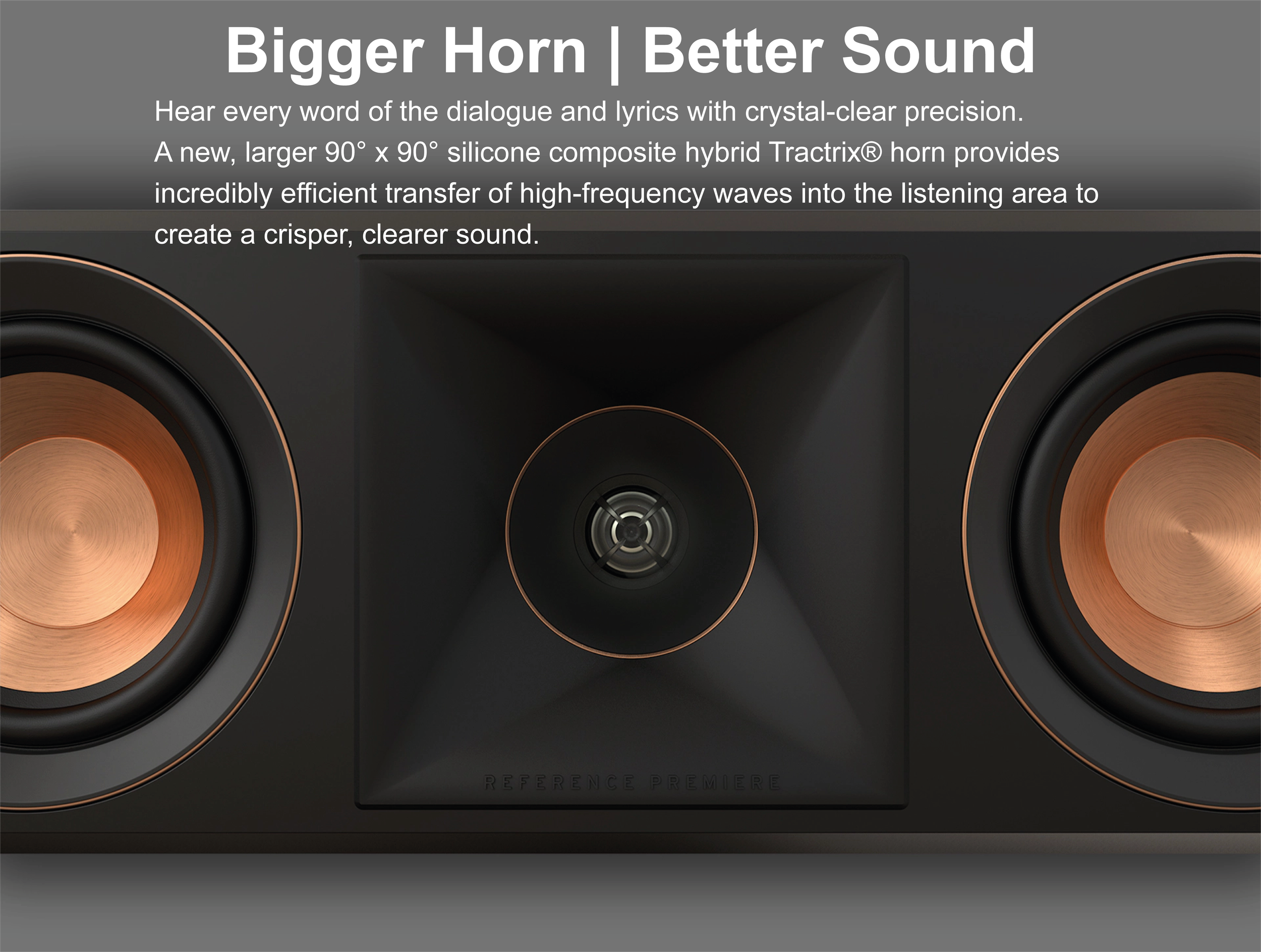

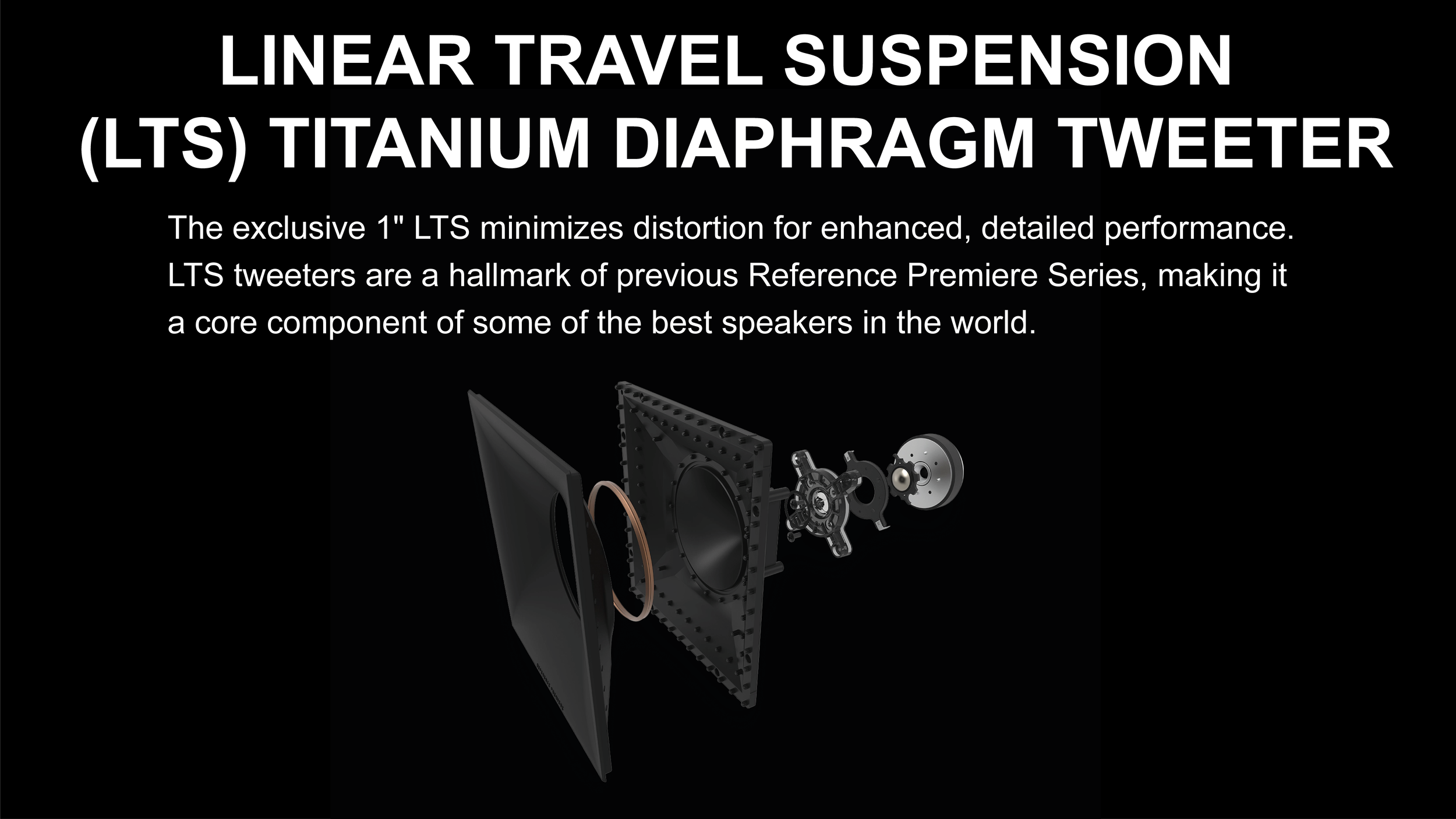

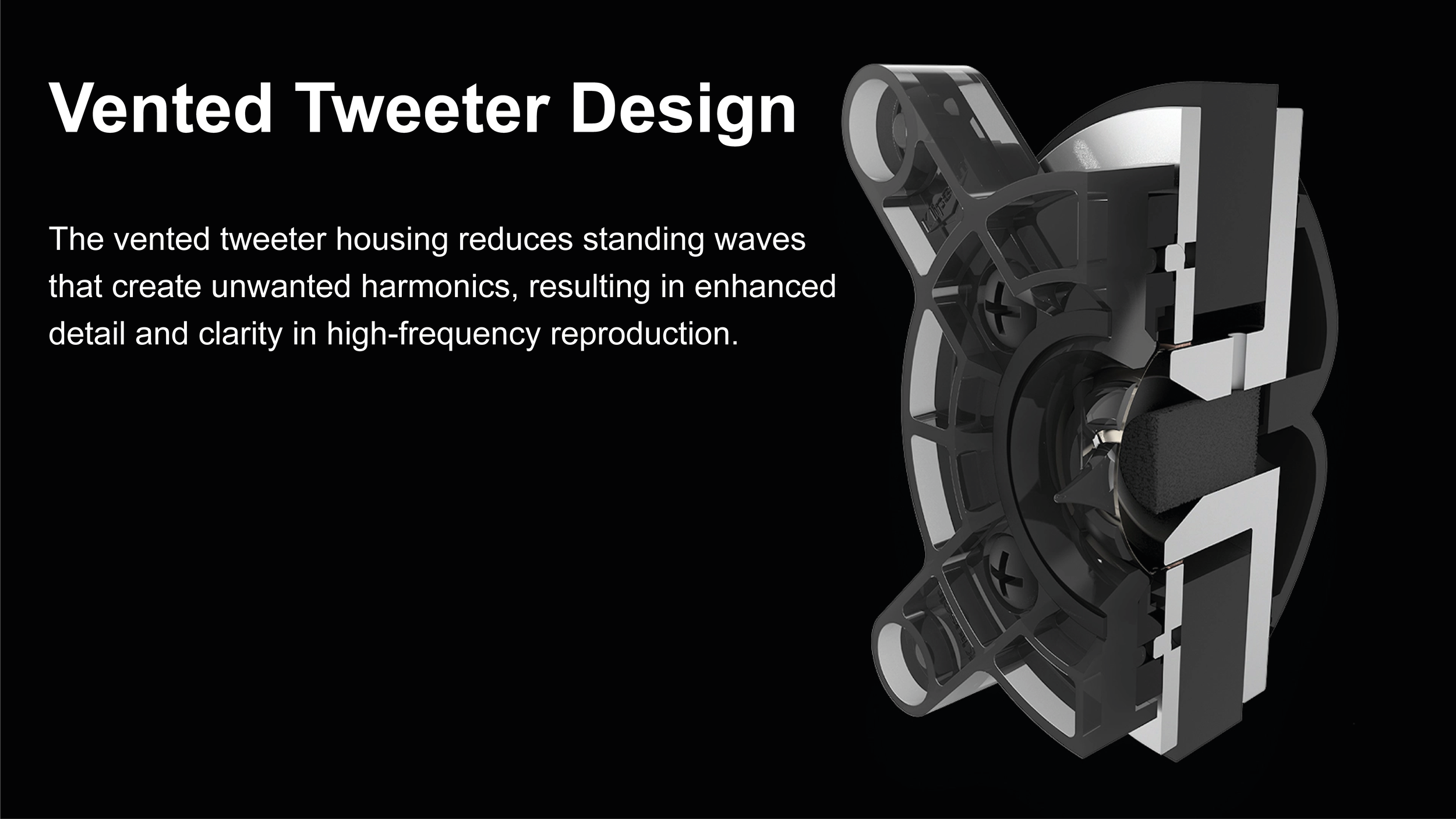

HIGH FREQUENCY DRIVER 1" Titanium LTS Vented Tweeter with Hybrid Cross-Section Expanded Tractrix® Horn

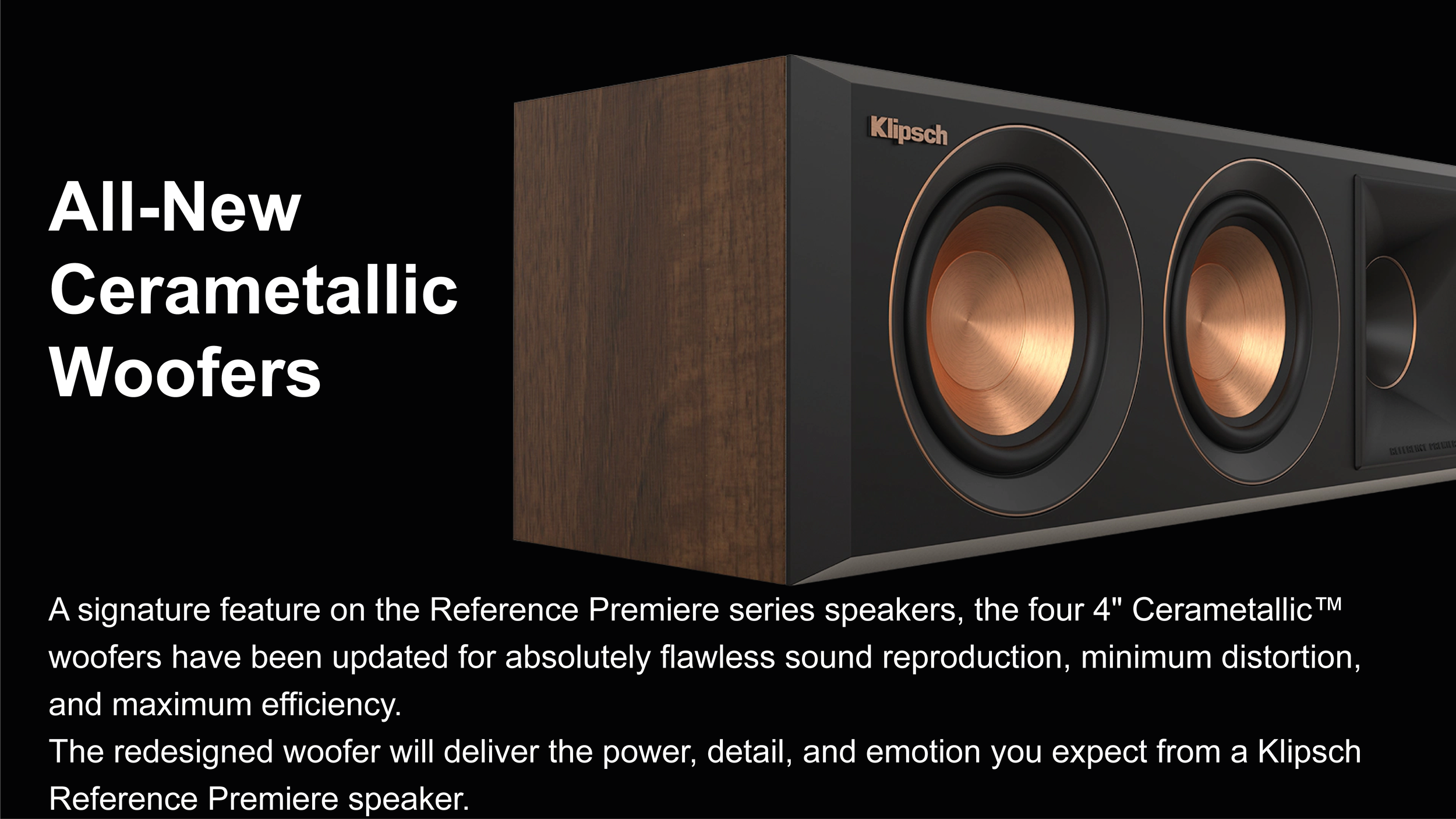

LOW FREQUENCY DRIVER Quad 4" Cerametallic™ Cone Woofers with Faraday rings

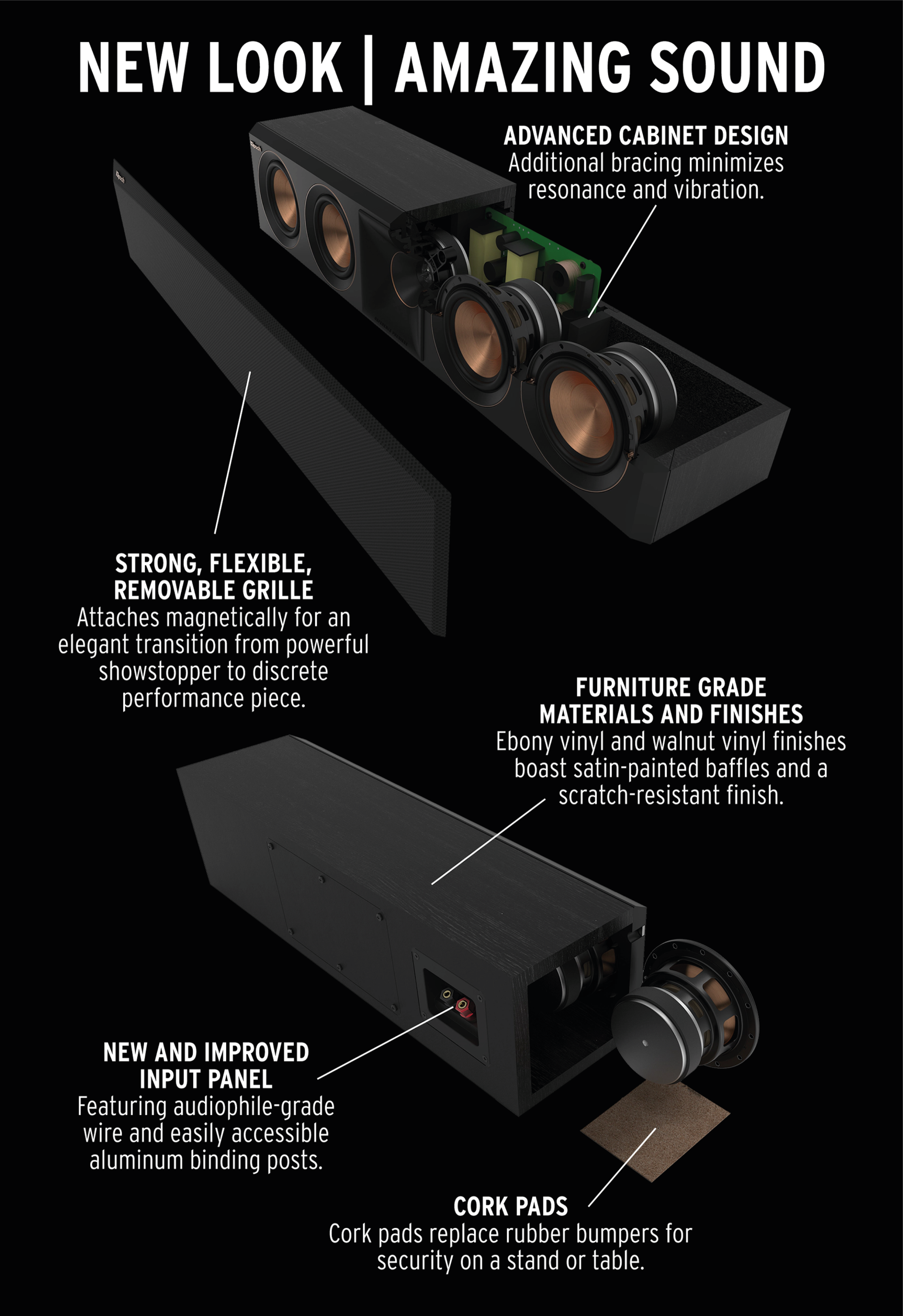

ENCLOSURE MATERIAL MDF (Internally Braced)

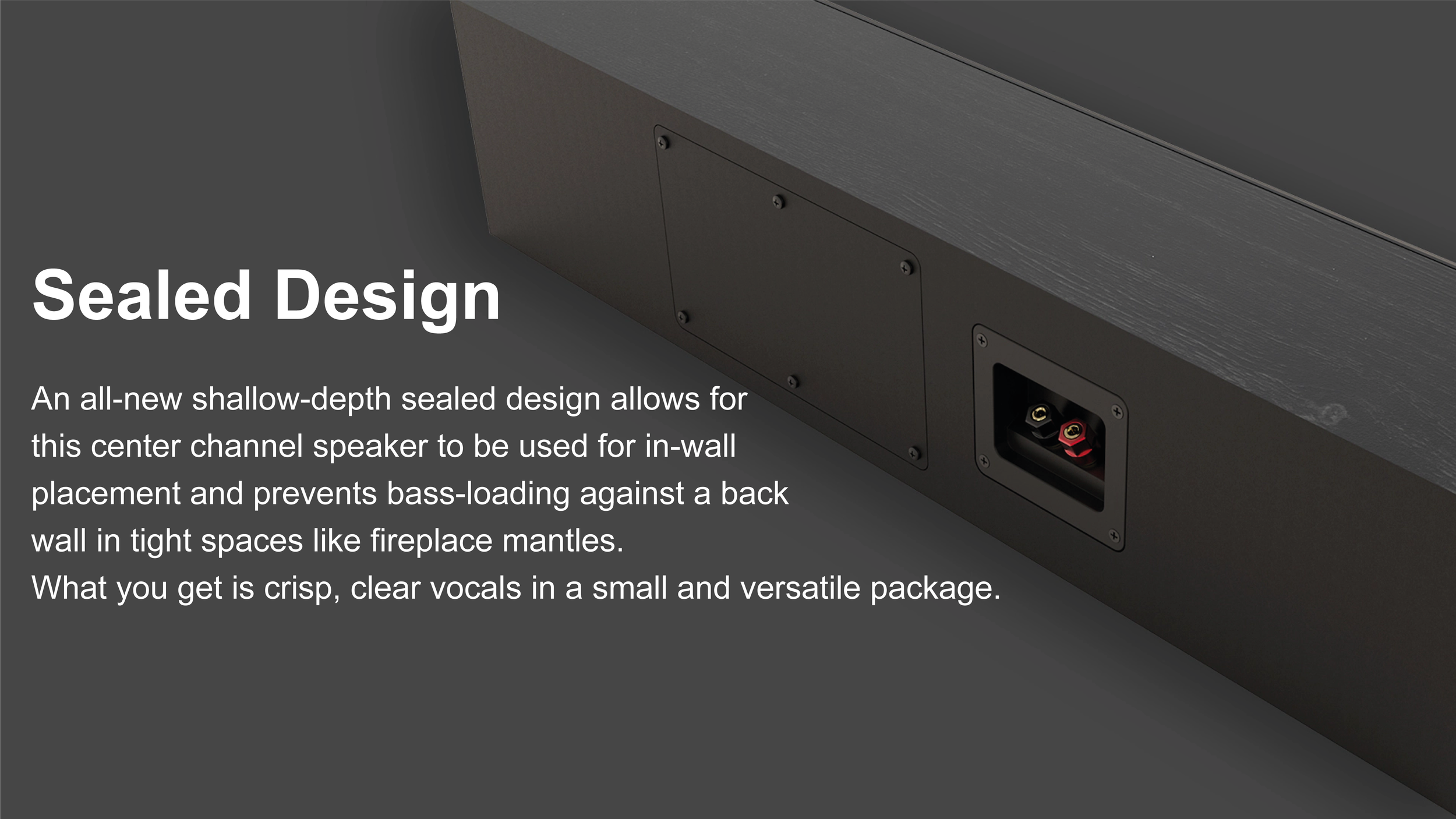

ENCLOSURE TYPE Sealed
INPUTS Single aluminum binding posts
HEIGHT INCHES (MM) 5.72" (14.5 cm)
WIDTH INCHES (MM) 26.85" (68.2 cm)
DEPTH INCHES (MM) 6.47" (16.4 cm)
PRODUCT WEIGHT LBS (KG) 20.3lb (9.25kg)
FINISH Ebony, Walnut
ACCESSORIES Angle screw
