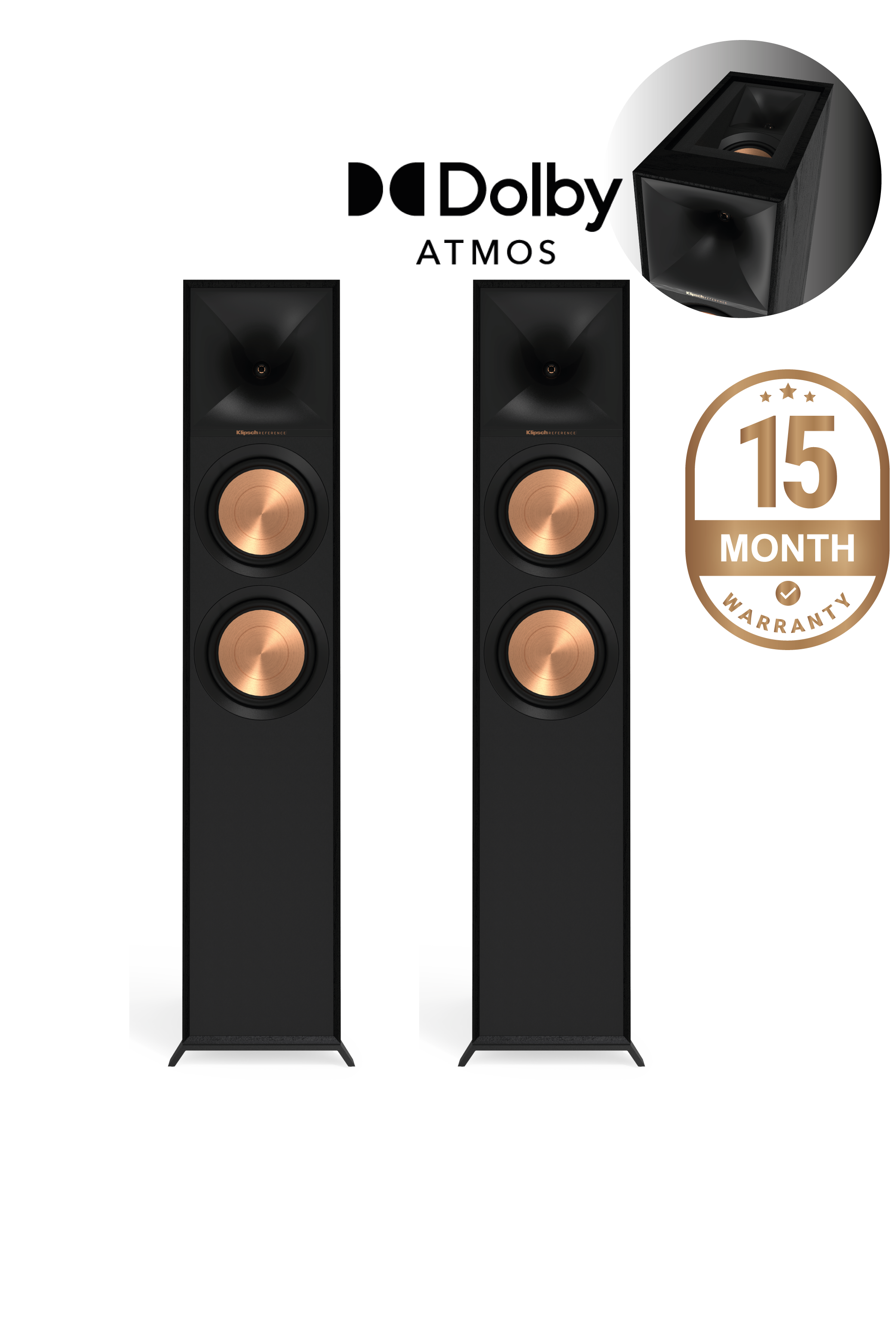

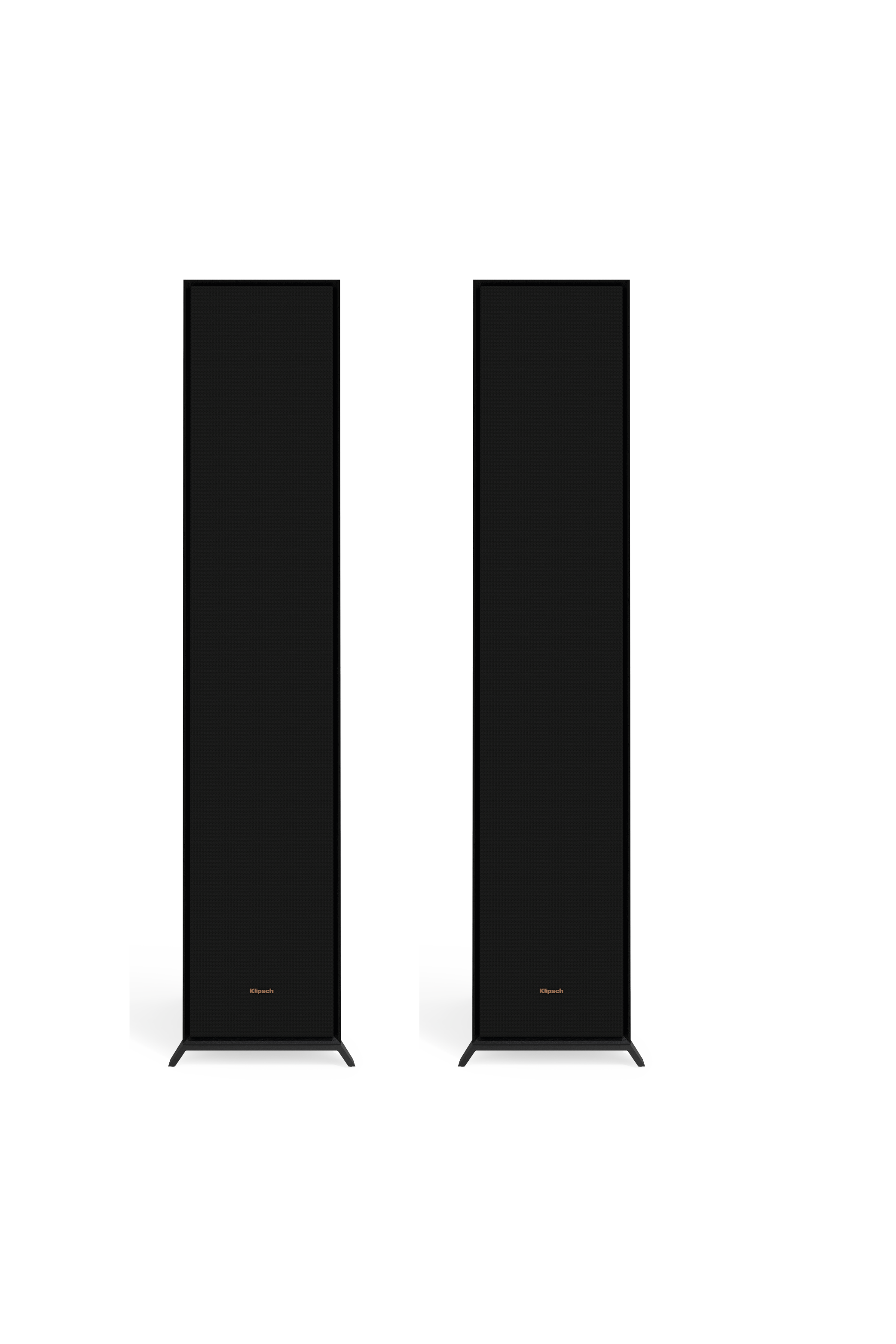

R-605FA Dolby Atmos Floorstanding Speaker

• FREQUENCY RESPONSE 38Hz - 21kHz +/- 3dB

• SENSITIVITY* 96 dB (In-Room)

• POWER HANDLING (CONT/PEAK) 100W/400W

• NOMINAL IMPEDANCE 8 ohms Compatible

• CROSSOVER FREQUENCY 1,440 Hz

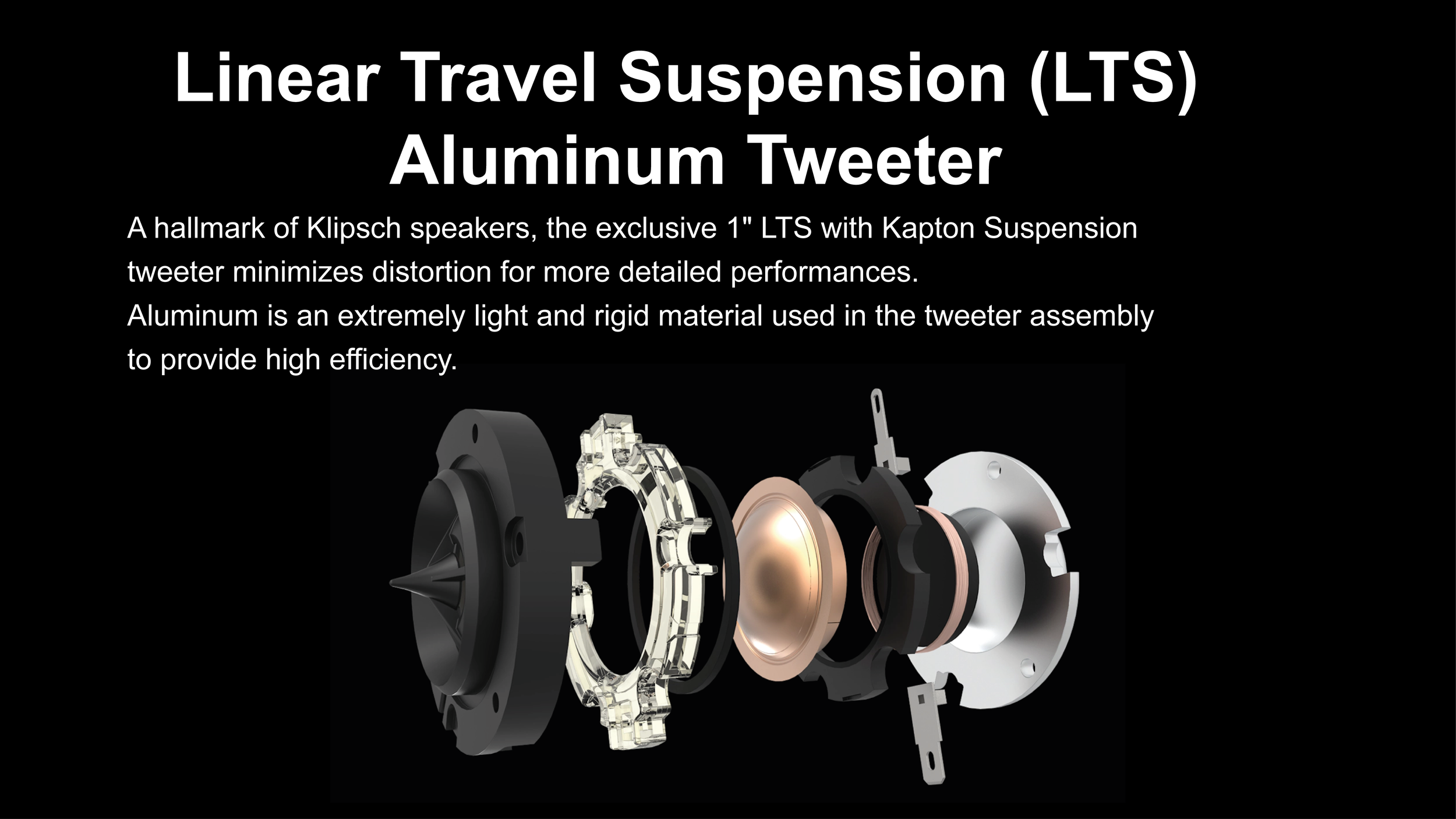

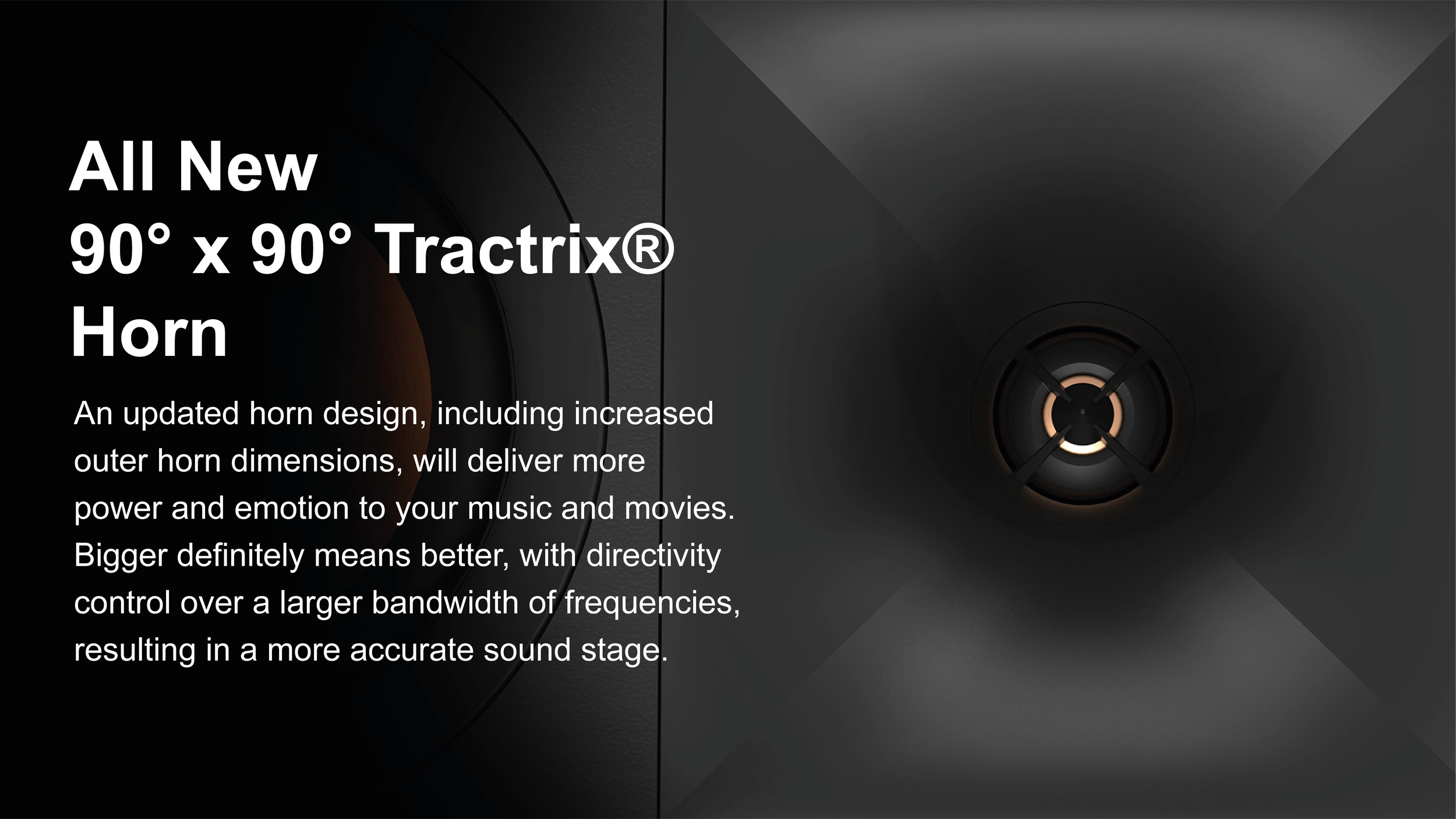

• HIGH FREQUENCY DRIVER 1" Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn

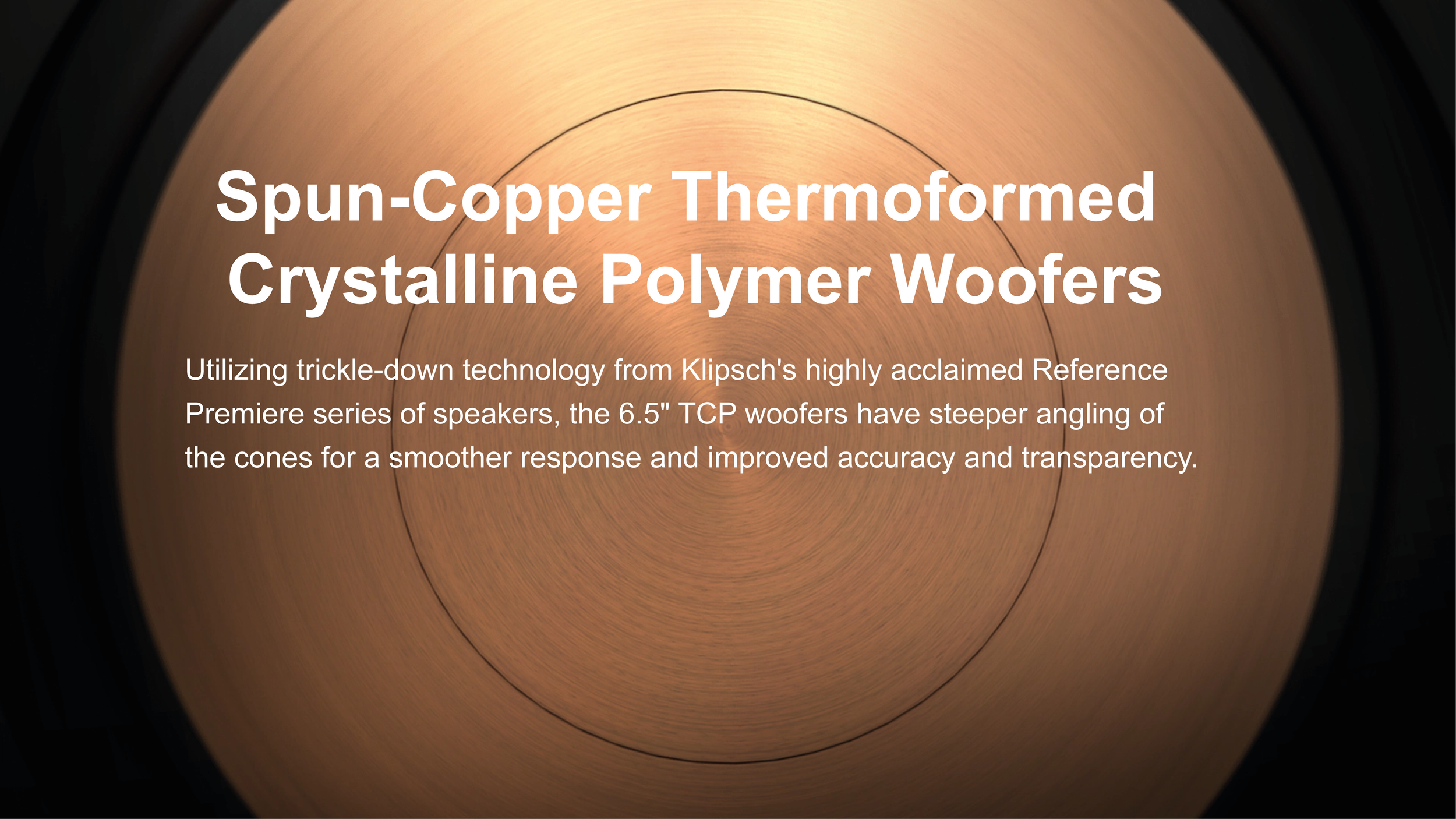

• LOW FREQUENCY DRIVER Dual 6.5" spun-copper TCP woofers

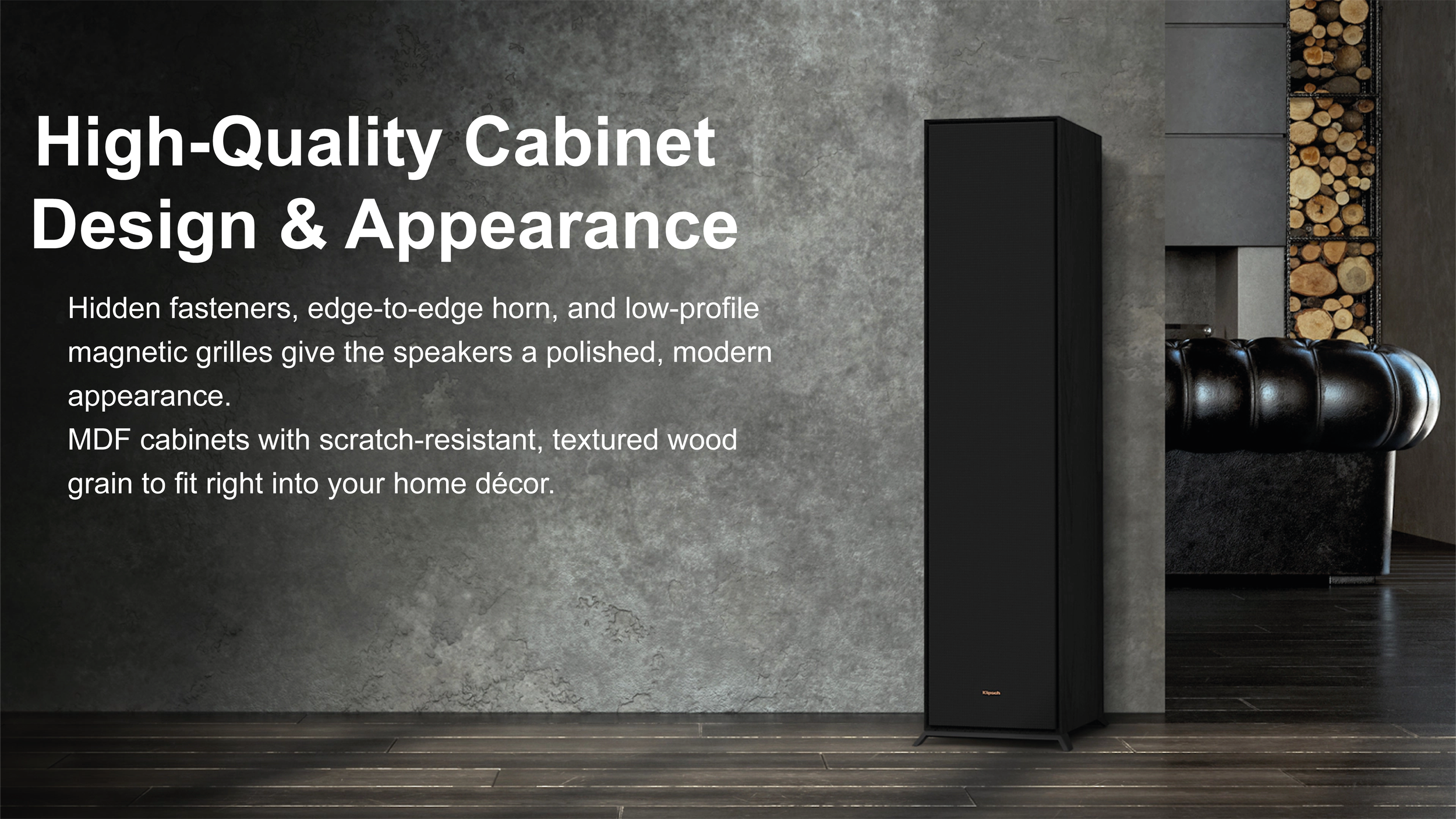

• ENCLOSURE MATERIAL MDF

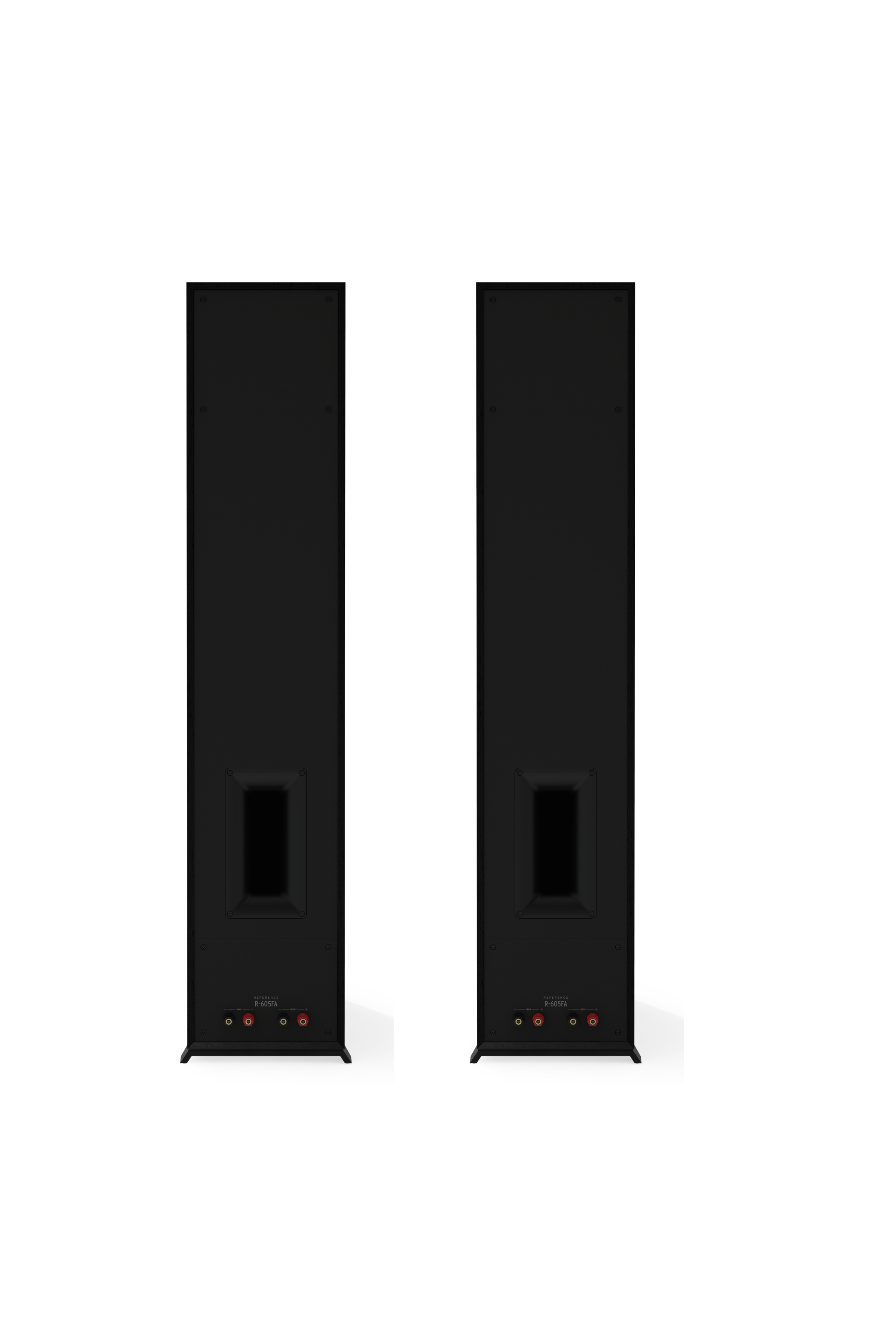

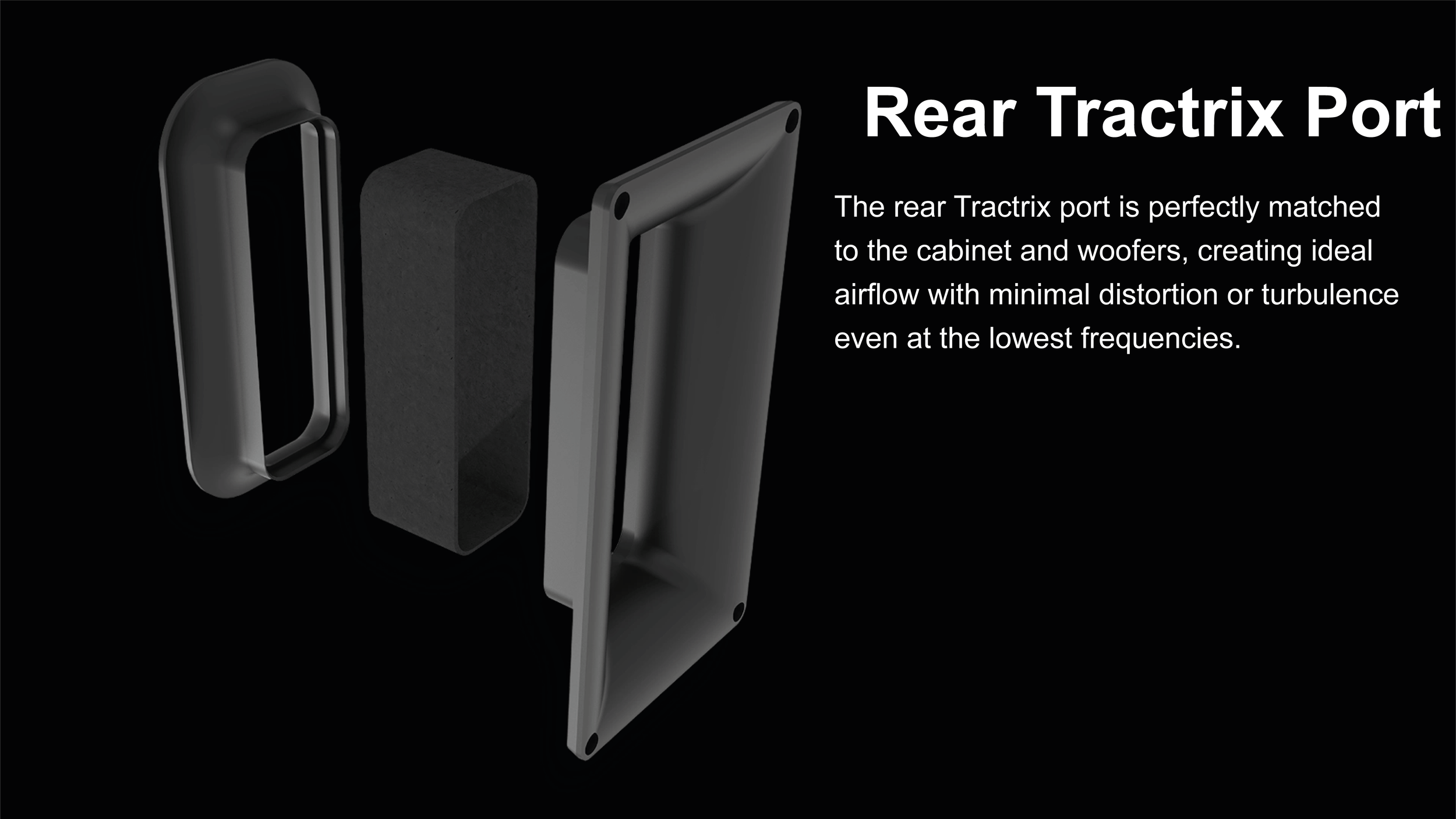

• ENCLOSURE TYPE Bass-Reflex via rear-firing Tractrix®ports

• INPUTS Single Gold Plated Binding Posts

• HEIGHT INCHES (MM) 40" (1017 mm)

• WIDTH INCHES (MM) 9.5" (240 mm)

• DEPTH INCHES (MM) 18.2" (463 mm)

• PRODUCT WEIGHT LBS (KG) 50 lbs (22.7 kg)

• FINISH Black Textured Wood Grain Vinyl

• INCLUDED ACCESSORIES Injection molded feet & screws

*SPL at 1M, half-space anechoic with 2.83V input

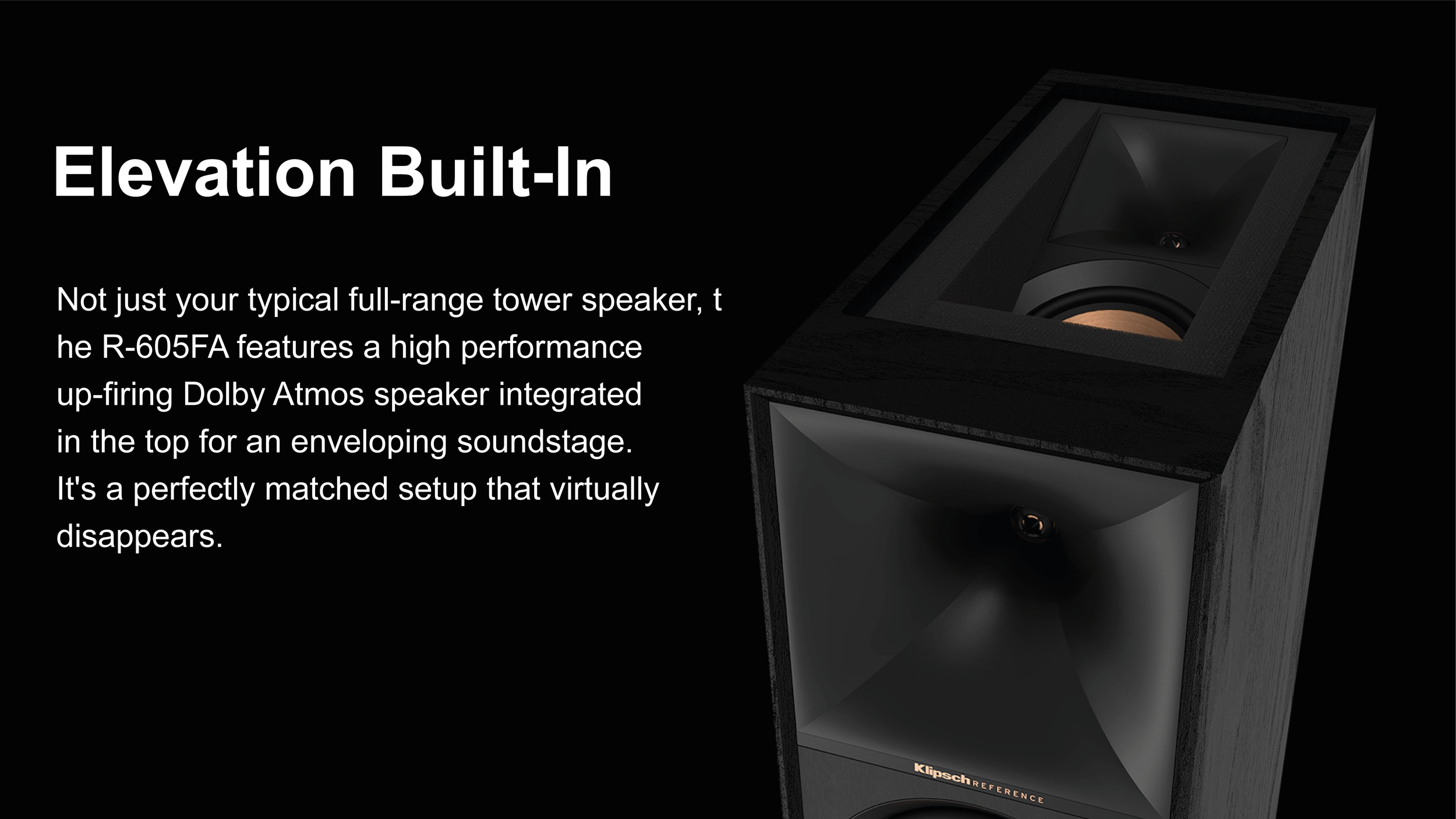

• FREQUENCY RESPONSE Conforms to Dolby Atmos Specifications

• SENSITIVITY Conforms to Dolby Atmos Specifications

• POWER HANDLING 75W/150W

• NOMINAL IMPEDANCE 8 ohms Compatible

• HIGH FREQUENCY DRIVER 1" Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn

• LOW FREQUENCY DRIVER 5.25" spun-copper IMG woofer

• ENCLOSURE TYPE Acoustic Suspension

• INPUTS Single Gold Plated Binding Posts
