FREQUENCY RESPONSE 71Hz - 21kHz +/- 3dB
SENSITIVITY* 91 dB (In-Room)
POWER HANDLING (CONT/PEAK) 50W/200W
NOMINAL IMPEDANCE 8 ohms Compatible
CROSSOVER FREQUENCY 1,770 Hz

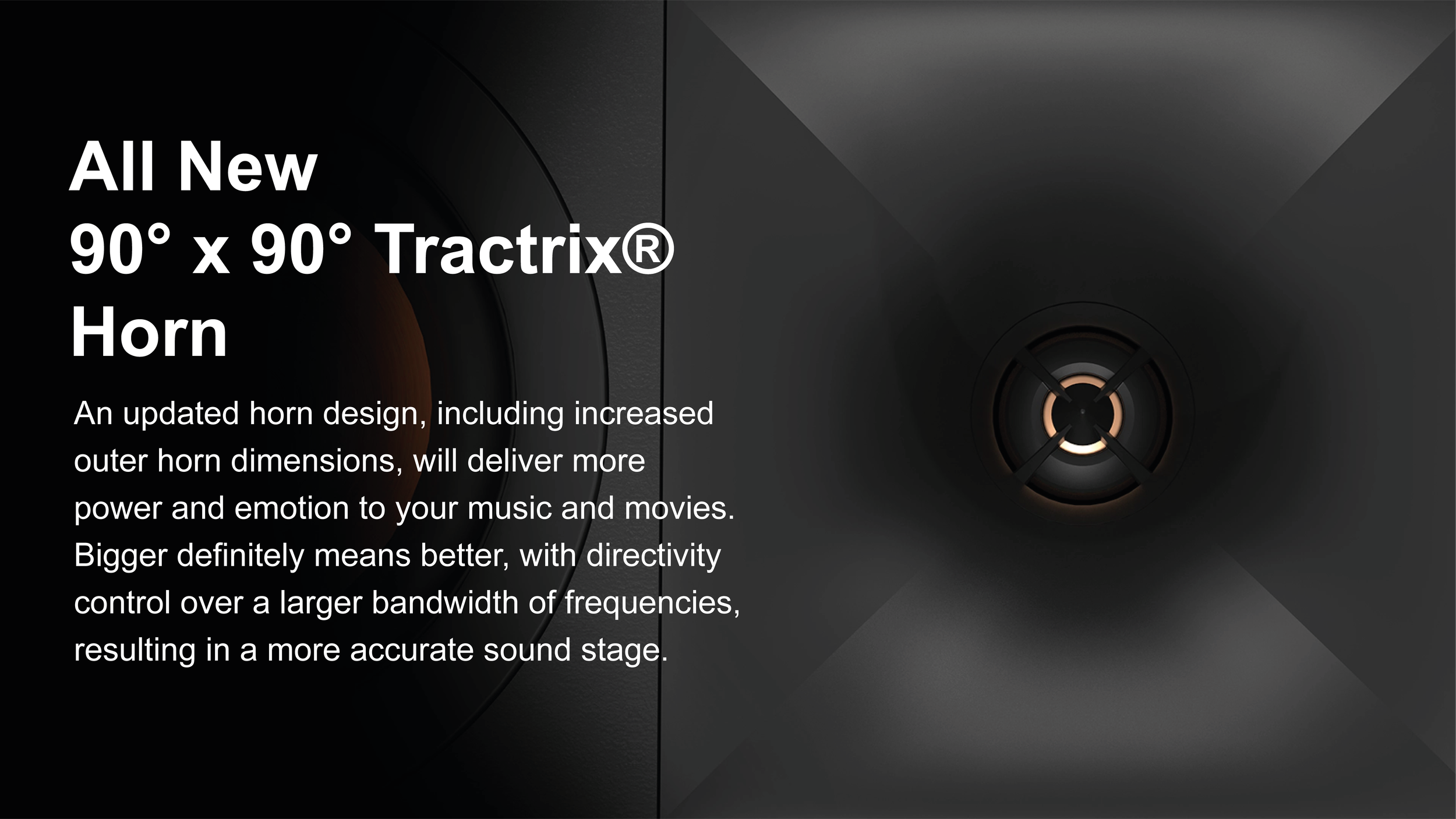

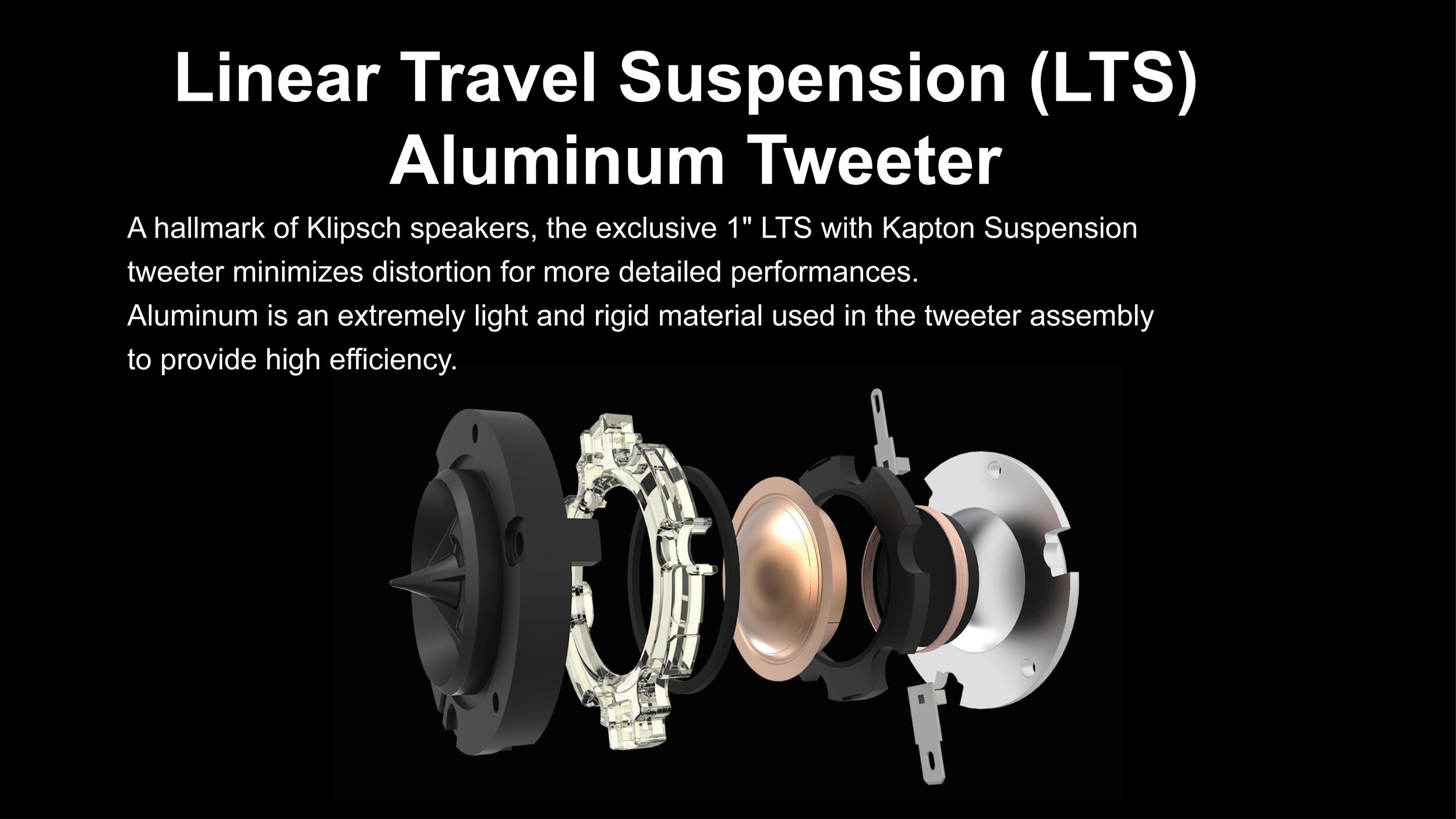

HIGH FREQUENCY DRIVER 1" Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn

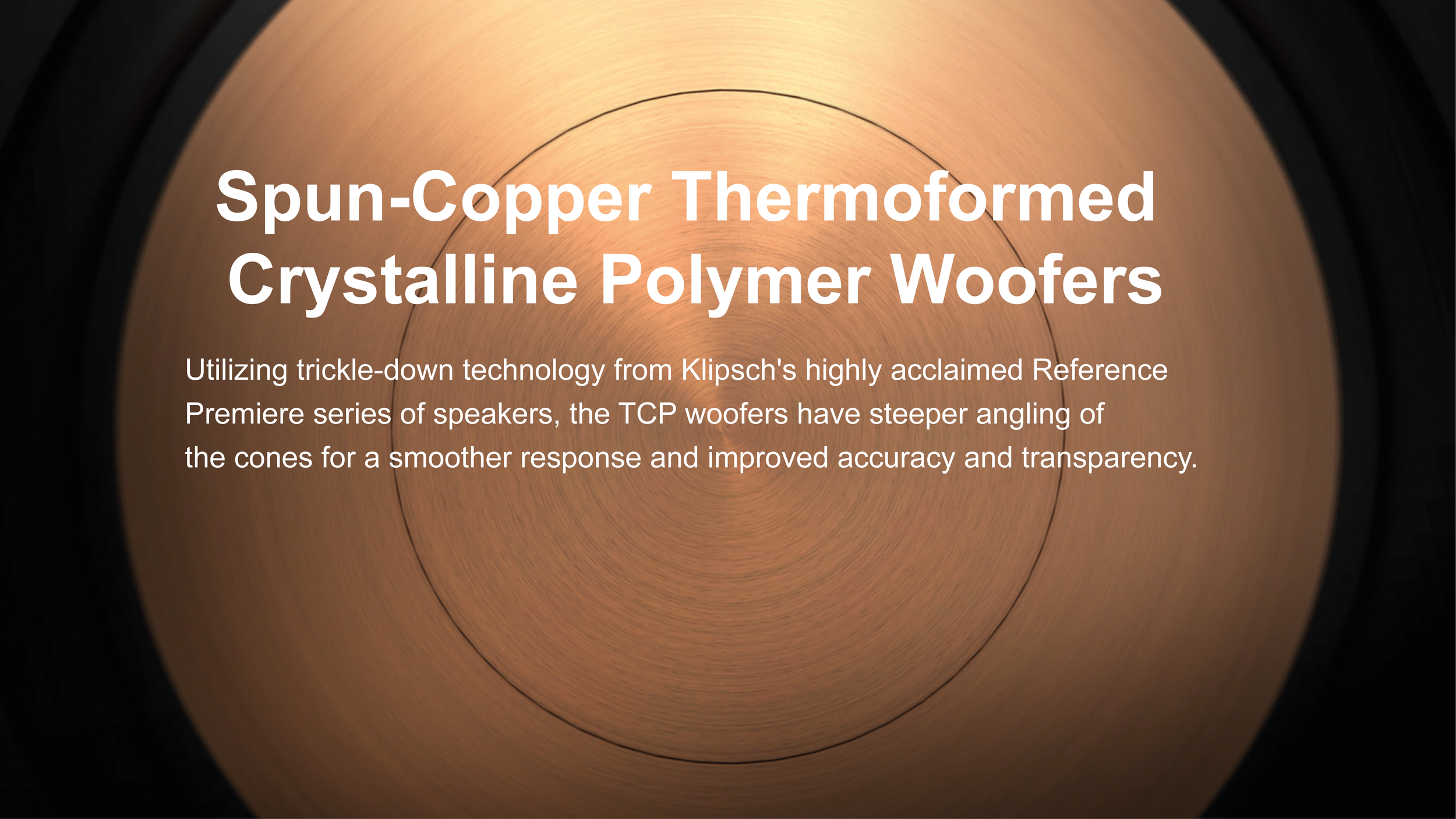

LOW FREQUENCY DRIVER Single 4" spun-copper TCP woofer
ENCLOSURE MATERIAL MDF
ENCLOSURE TYPE Bass-Reflex via rear-firing ports

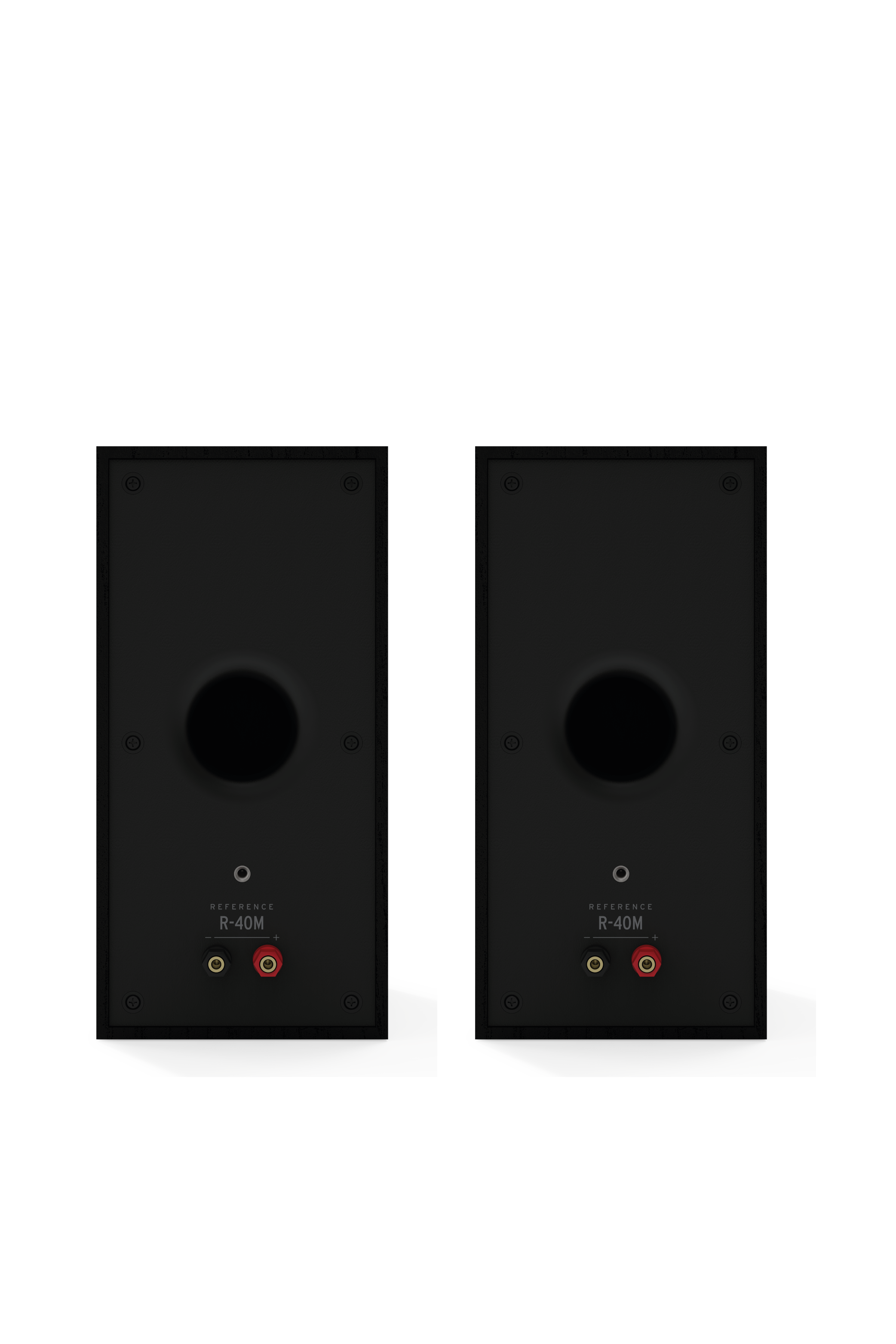

INPUTS Single Gold Plated Binding Posts
HEIGHT INCHES (MM) 11.7" (298 mm)
WIDTH INCHES (MM) 5.8" (146 mm)
DEPTH INCHES (MM) 8.5" (216 mm)
PRODUCT WEIGHT LBS (KG) 7 lbs (3.2 kg)
FINISH Black Textured Wood Grain Vinyl
