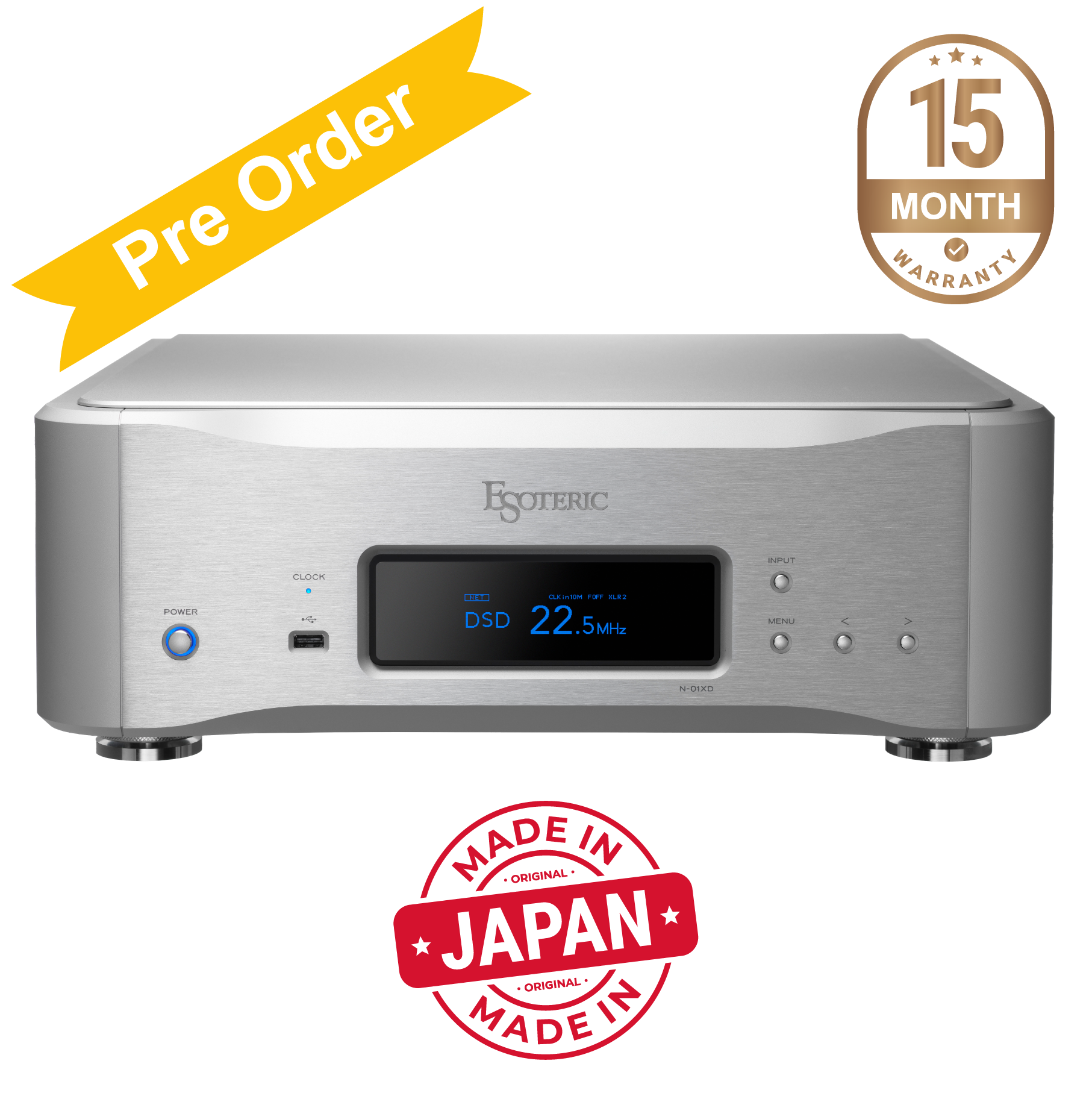

N-01XD Network DAC

Digital audio input

ES-LINK

1 (L/R)

Input signal formats

Linear PCM

44.1k to 768kHz, 48bit (ES-LINK5 format)

DSD

2.8MHz, 5.6MHz, 11.2MHz, 22.5

XLR

1

Input level

5.0Vp-p

Input impedance

110Ω

Input signal formats

Linear PCM

32k to 192kHz, 16bit / 24bit (AES/EBU format)

DSD

2.8MHz (ES-LINK1, ES-LINK2, DoP format)

RCA

1

Input level

0.5Vp-p

Input impedance

75Ω

Input signal formats

Linear PCM

32k to 192kHz, 16bit / 24bit (IEC60958 format)

DSD

2.8MHz (DoP format)

OPTICAL

1

Input level

–24.0 to –14.5dBm peak

Input signal formats

Linear PCM

32k to 192kHz, 16bit / 24bit (IEC60958 format)

DSD

2.8MHz (DoP format)

USB

1 (B type)

Input signal formats

Linear PCM

44.1k to 384kHz, 16bit / 24bit / 32bit

DSD

2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz

ETHERNET

1 (1000BASE-T)

Input signal formats

Linear PCM

44.1k to 384kHz, 16bit / 24bit / 32bit (stereo)

DSD

2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz (stereo)

Supported file formats

PCM lossless

FLAC, Apple Lossless (ALAC) , WAV, AIFF, MQA

DSD lossless

DSF, DSDIFF (DFF) , DoP

Compressed audio

MP3, AAC

USB DRIVE

2 (Front, Rear)

Supported file system

FAT32, exFAT, NTFS

Single partition

USB2.0 or later recommended

Maximum power supply

0.5A

Input signal formats

Linear PCM

44.1k to 384kHz, 16bit / 24bit / 32bit (stereo)

DSD

2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (stereo)

Supported file formats

PCM Lossless

FLAC, Apple Lossless (ALAC) , WAV, AIFF, MQA

DSD Lossless

DSF, DSDIFF (DFF) , DoP

Compressed audio

MP3, AAC

Analog audio outputs

XLR/ESL-A

1 pair (L/R)

Output level

5.0Vrms (1kHz, 10kΩ loaded)

Output impedance

40Ω

RCA

1 pair (L/R)

Output level

2.5Vrms (1kHz, 10kΩ loaded)

Output impedance

15Ω

Clock sync input

BNC

1

Input frequency

10MHz (±10ppm)

Input impedance

50Ω

Input level

Rectangle wave

equivalent to TTL level

Sine wave

0.5 to 1.0Vrms

Clock sync output

 BNC

1

Output level

TTL level equivalent (75Ω load)

Output frequency

44.1k / 48kHz

Output frequency accuracy

±0.5ppm

General

Power supply

 AC 230V, 50Hz

AC 120V, 60Hz

AC 220V, 60Hz

Power consumption

38W

External dimensions (W×H×D)

445 × 162 × 438mm
17-⅝" × 6-½" × 17-¼" (including protrusions)

Weight

26.3kg / 58 lb

Included accessories

Power cord × 1
HDMI cable × 1
Felt pads × 4
Owner's manual × 1
Warranty card × 1

Audio performance

Frequency response

5Hz to 70kHz (–3dB)

S/N ratio

113dB

Distortion

0.0007% (1kHz)

Design and specification are subject to change without notice.

Weight and dimensions are approximate.
