K-05XD Super Audio CD/ CD Player

MYR 61,999.00

Sold Out

Features

Newly designed VRDS-ATLAS "ATLAS 05" Super Audio CD Transport mechanism
“Master Sound Discrete DAC” – In-house developed FPGA, 64bit/512Fs Delta-Sigma modulator
“Master Sound Discrete Clock for Digital Player” – in-house discrete clock module
Our proprietary “ES-Link Analog” current signal transmission output
“Esoteric-HCLD” output buffer amplifier (slew rate: 2,000V/μs)
3 power supply transformers (two toroids for analog, digital and one EI for control)
Low-feedback DC regulator
10MHz external clock input
Equipped with MQA decoder
USB DAC function (DSD 22.5MHz / Asynchronous transmission capability)
Various in/out terminals;
- Digital inputs: coaxial, optical (192kHz & DoP)
- Digital outputs: XLR, coaxial
Selectable digital filter options for PCM, analog FIR filter on/off function for DSD
RS-232C port, trigger on/off control
RC-1333 remote controller that can also control Esoteric amplifiers.

Get notified by email when this product is in stock.

Features

Newly designed VRDS-ATLAS "ATLAS 05" Super Audio CD Transport mechanism
“Master Sound Discrete DAC” – In-house developed FPGA, 64bit/512Fs Delta-Sigma modulator
“Master Sound Discrete Clock for Digital Player” – in-house discrete clock module
Our proprietary “ES-Link Analog” current signal transmission output
“Esoteric-HCLD” output buffer amplifier (slew rate: 2,000V/μs)
3 power supply transformers (two toroids for analog, digital and one EI for control)
Low-feedback DC regulator
10MHz external clock input
Equipped with MQA decoder
USB DAC function (DSD 22.5MHz / Asynchronous transmission capability)
Various in/out terminals;
- Digital inputs: coaxial, optical (192kHz & DoP)
- Digital outputs: XLR, coaxial
Selectable digital filter options for PCM, analog FIR filter on/off function for DSD
RS-232C port, trigger on/off control
RC-1333 remote controller that can also control Esoteric amplifiers.

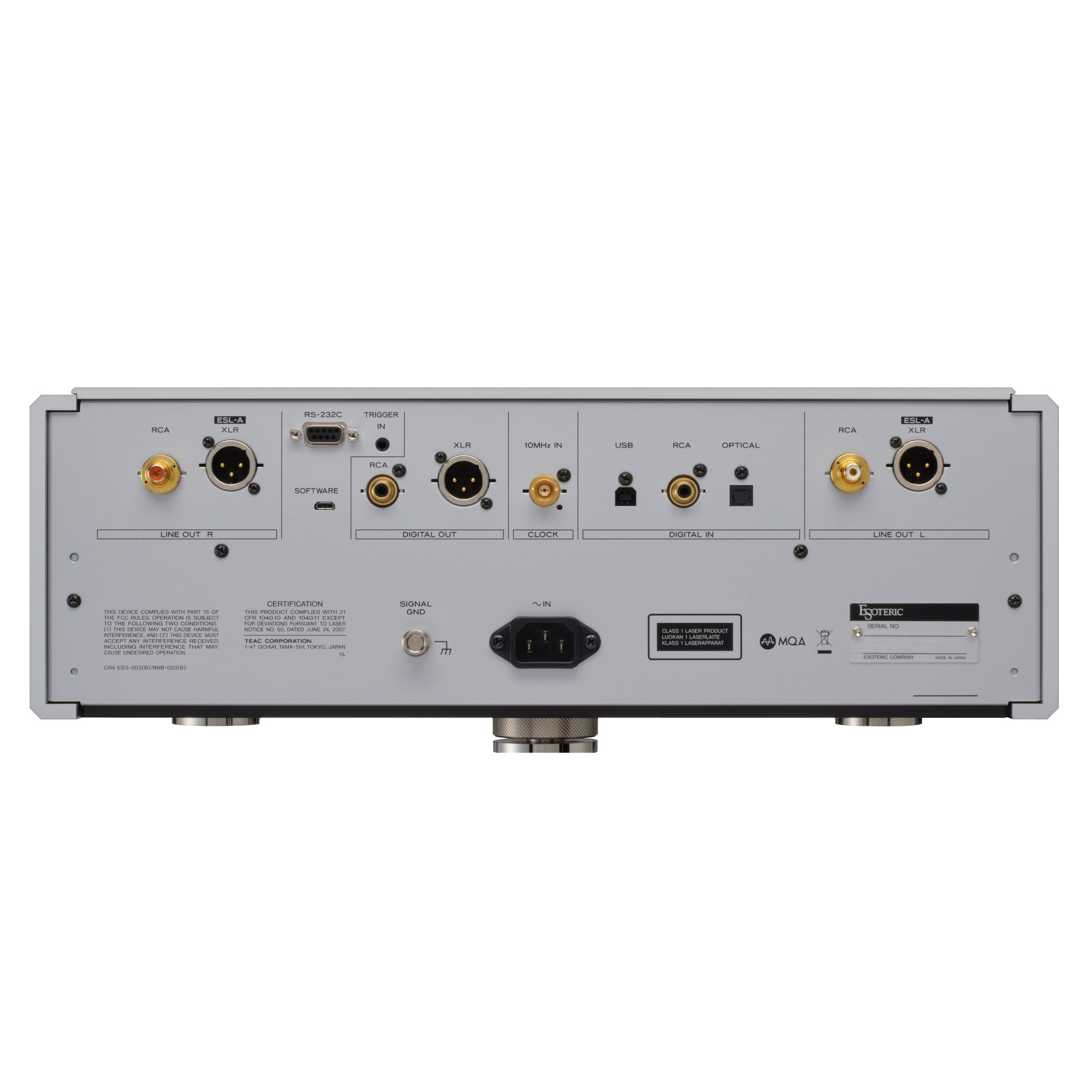

Analog Audio Outputs
XLR/ES-Link Analog
× 1 pair
RCA
× 1 pair
Digital Audio Outputs
XLR
× 1
Coaxial
× 1
Digital Audio Inputs
USB
× 1
Coaxial
× 1
Optical
× 1
10MHz Clock Input
BNC
× 1
External Control Section
RS-232C
× 1
Trigger In
⅛” (3.5mm) Monaural mini jack × 1
General
Power
AC 120V, 60Hz
AC 220-240V, 50Hz
Overall Dimensions (W×H×D)
445 × 161 × 357mm (including protrusions)
Weight
20.7kg
Included accessories
Power cord × 1
Remote control (RC-1333) × 1
AA batteries × 2
Felt pads × 3
Owner’s manual × 1
Warranty card × 1
Audio Performance
Frequency Response
5Hz to 70kHz (–3dB, SACD 0dB, DSDF: F2, XLR Output)
S/N Ratio
110dB (IHF-A, SACD 0dB, DSDF: F2, XLR Output)
Total Harmonic Distortion
0.0007% (1kHz, SACD 0dB, DSDF: F2, XLR Output)
* Design and specification are subject to change without notice.
