Playable disc types
Super Audio CD, CD (including CD-R and CD-RW)

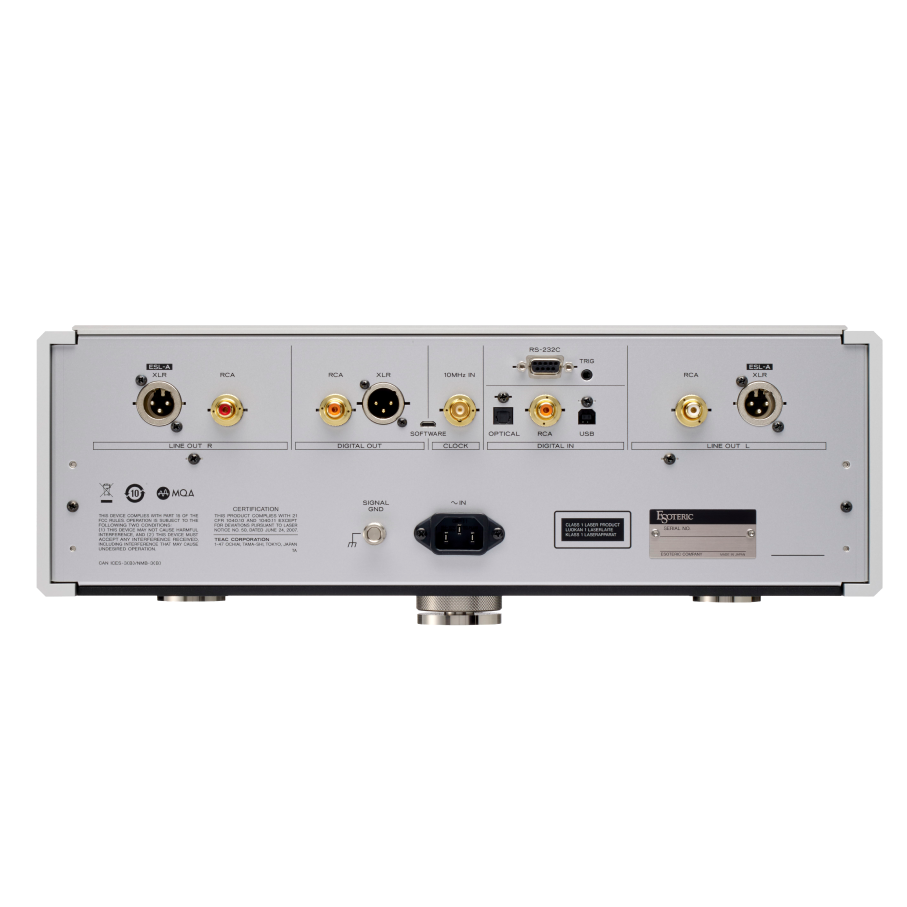

Analog audio outputs
XLR/ESL-A
1 pair (L/R)
Output impedance
114Ω
Maximum output level
5.0Vrms (1kHz, 10kΩ loaded)
RCA
1 pair (L/R)
Output impedance
34Ω
Maximum output level
2.5Vrms (1kHz, 10kHz loaded)
Digital audio outputs
XLR
1
Output impedance
3Vp-p (110Ω loaded)
Output signal formats
Linear PCM (AES/EBU) 44.1kHz,16-bit（CD）
RCA
1
Output impedance
0.5Vp-p (75Ω loaded)
Output signal formats
Linear PCM (IEC60958) 44.1kHz,16-bit（CD）
Digital audio inputs
RCA
1
Input signal formats
Linear PCM
32k to 192kHz, 16/24-bit (IEC60958)
DSD
2.8MHz (DoP)
OPTICAL
1
Input signal formats
Linear PCM
32k to 192kHz, 16/24-bit (IEC60958)
DSD
2.8MHz (DoP)
USB B
1 (USB2.0 supported)
Input signal formats
Linear PCM
44.1k to 384kHz, 16/24/32-bit (IEC60958)
DSD
2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz
Clock input
BNC
1
Input impedance
50Ω
Frequencies that can be input (±10ppm)
10MHz
Input level
0.5 to 1.0Vrms (Sine wave)
External control interface
RS-232C
1
Trigger
1 (3.5mm Monaural mini jack)
General
Power supply
Model for Europe
AC 220 to 240V, 50/60Hz
Model for US/Canada
AC 120V, 60Hz
Model for Korea
AC 220V, 60Hz
Model for Hong Kong
AC 230V, 50Hz
Power consumption
26W
External dimensions (W×H×D)
445 × 162 × 438mm
17-⅝" × 6-½" × 17-¼" (including protrusions)Weight
31kg / 68-⅜ lb
Included accessories
Power cord set × 1
Remote control (RC-1333) × 1
AA batteries × 2
Felt pads × 3
Owner's manual × 1
Warranty card × 1 Audio performance
Frequency response
5Hz to 70kHz (–3dB, Super Audio CD, 0dB, DSDF=F2, XLR output)
S/N ratio
113dB (A-weight, Super Audio CD, 0dB, DSDF=F2, XLR output)
Distortions
0.0007% (1kHz, Super Audio CD, 0dB, DSDF=F2, XLR output)
*Design and specification subject to change without notice.
