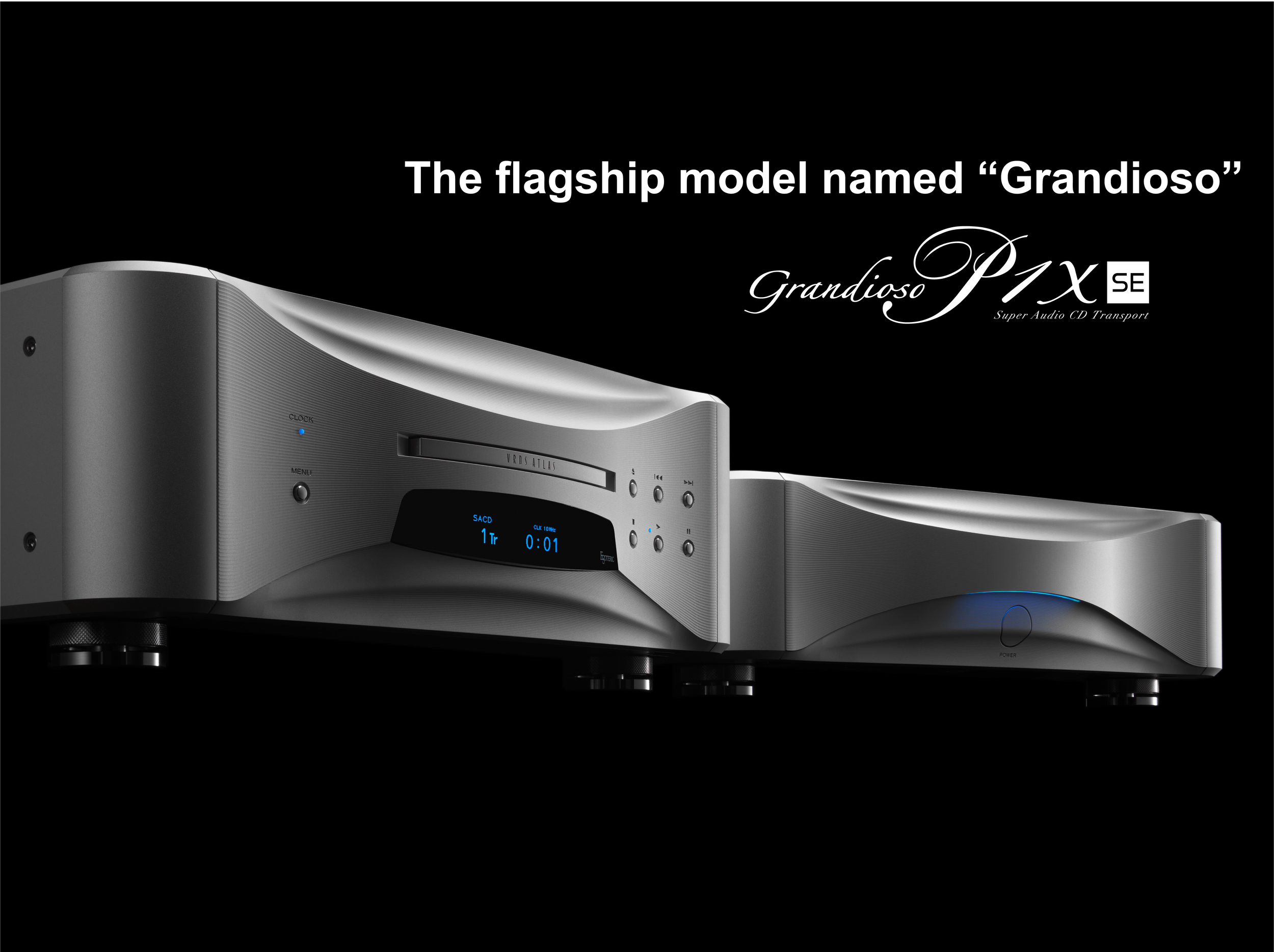

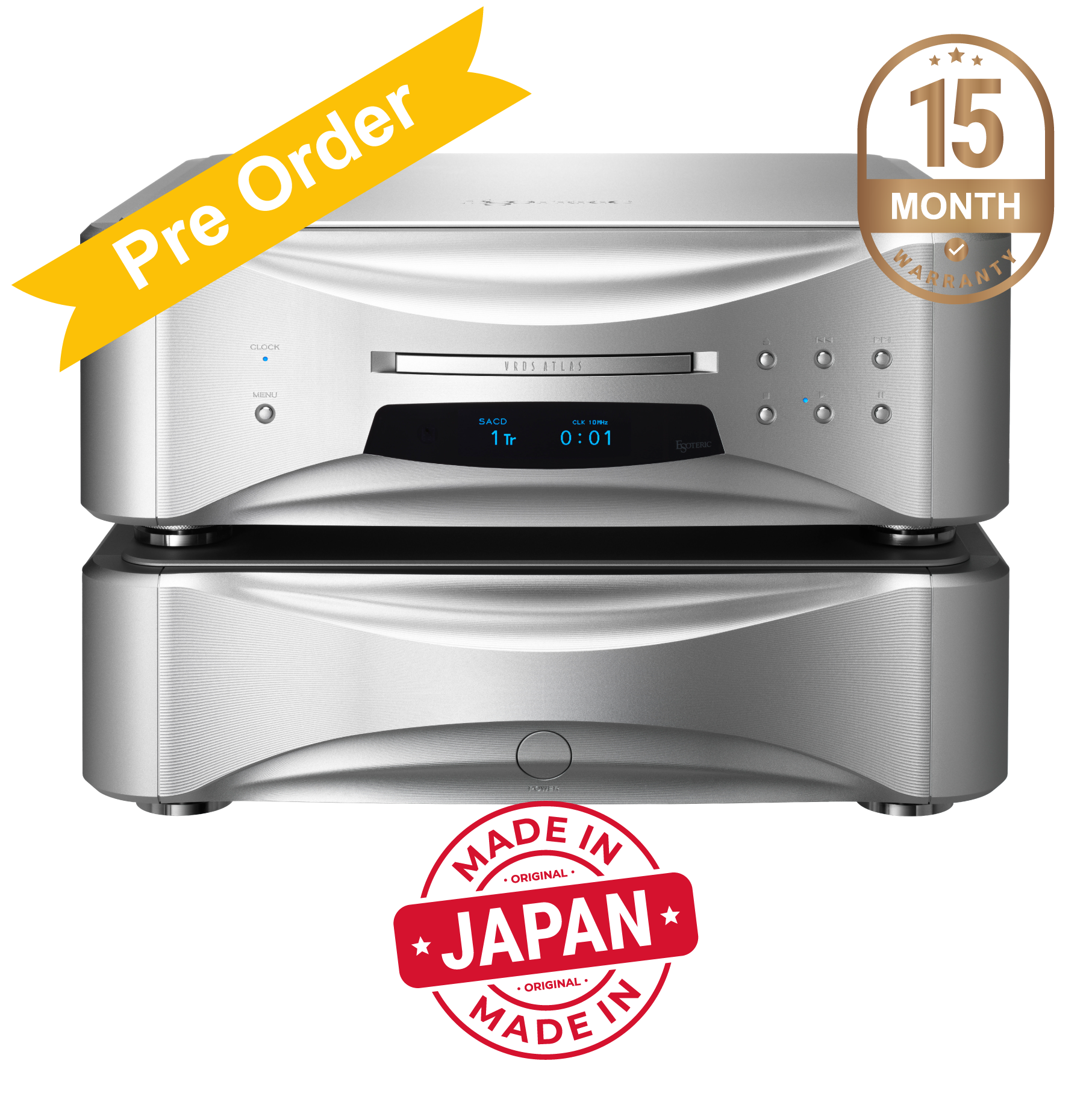

Grandioso P1X SE Super Audio CD Transport

MYR 247,999.00
Sold Out

Features

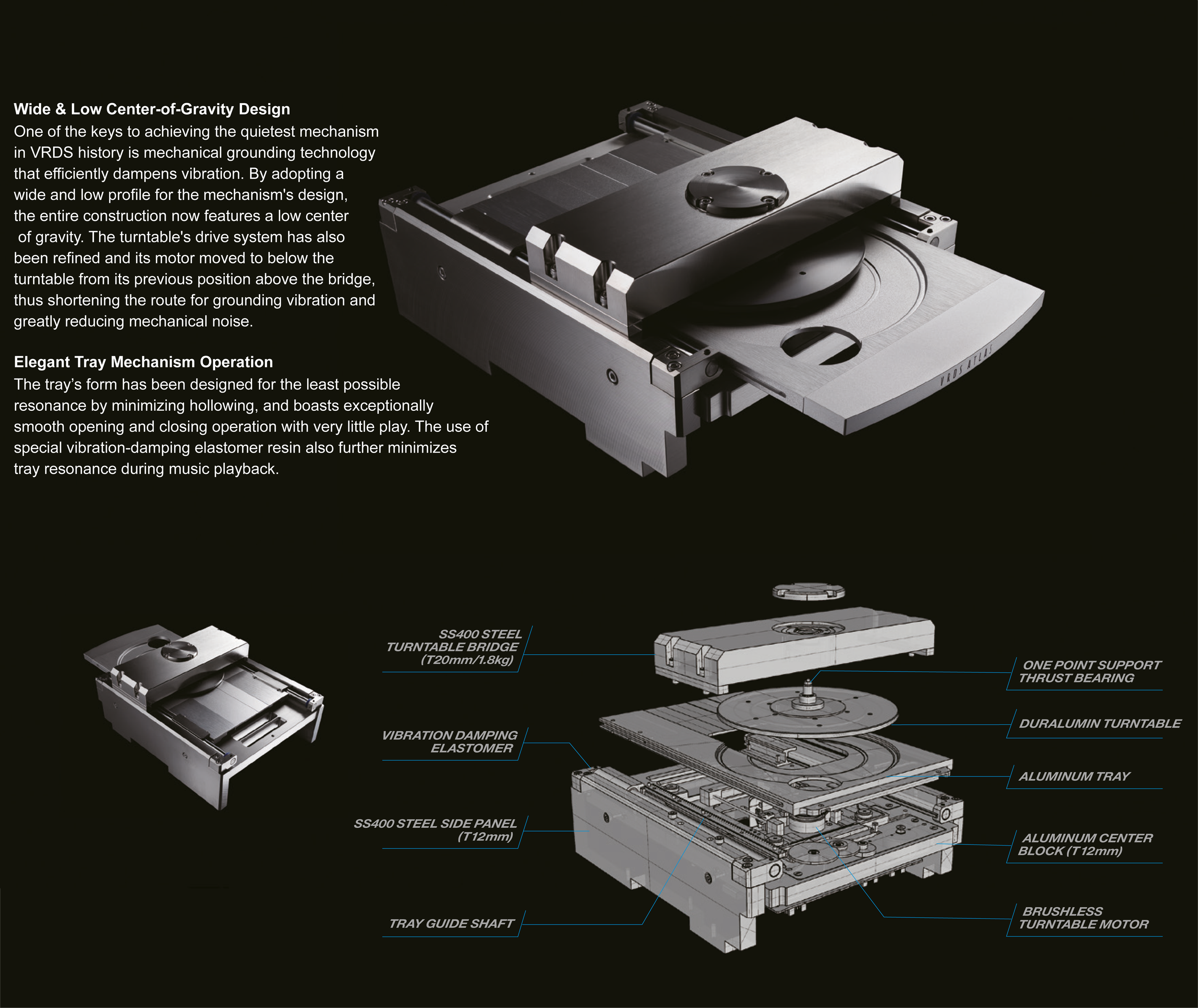

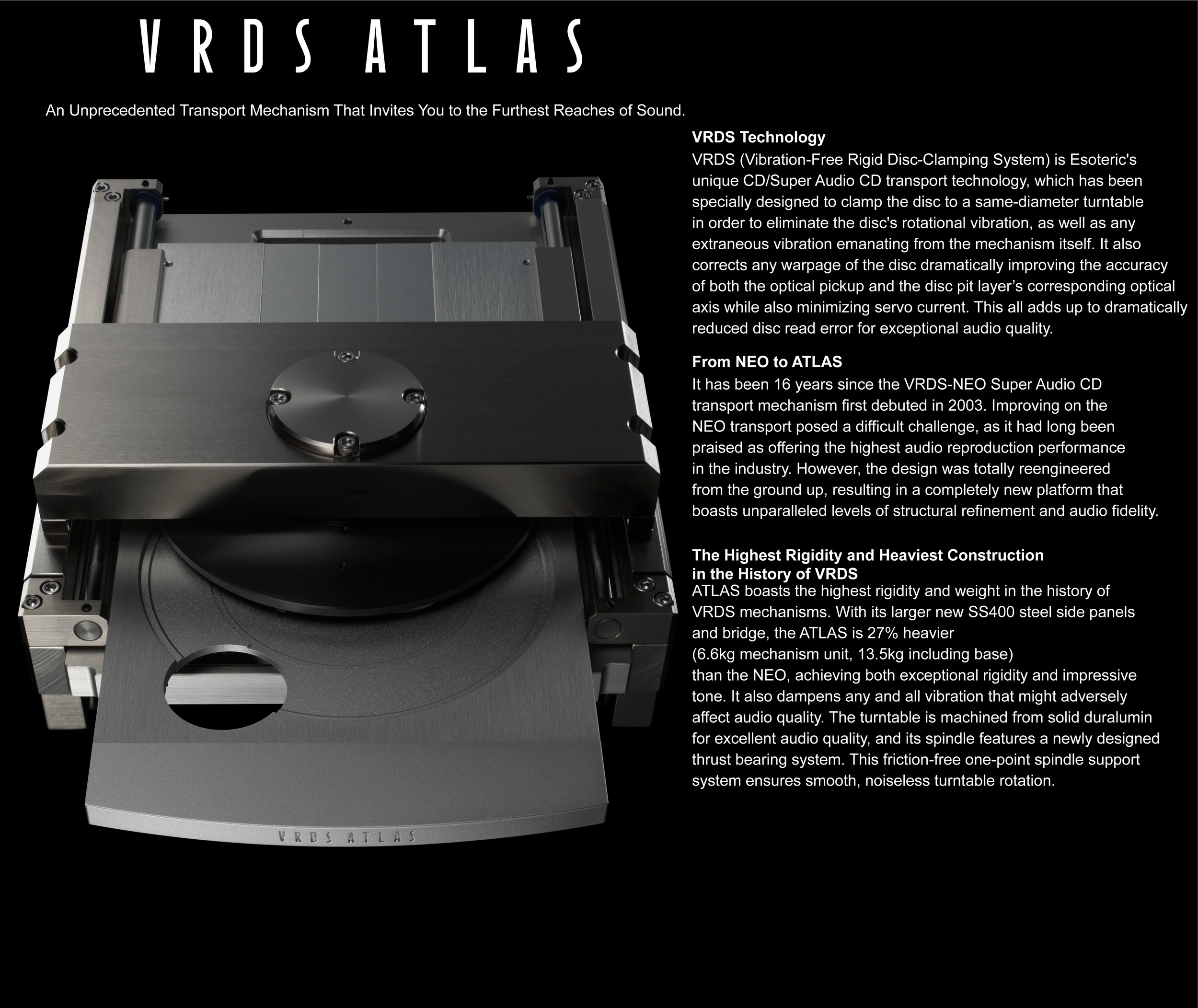

  • ‍ ‍“VRDS-ATLAS” Super Audio CD transport mechanism

  • “ES-Link5” ultra-wide range digital transmission

  • Two chassis configuration (main unit + power supply unit)

  • “Master Sound Discrete Clock for Digital Player” – in-house developed discrete clock module

  • Clock sync function

  • Low-feedback discrete DC regulators*

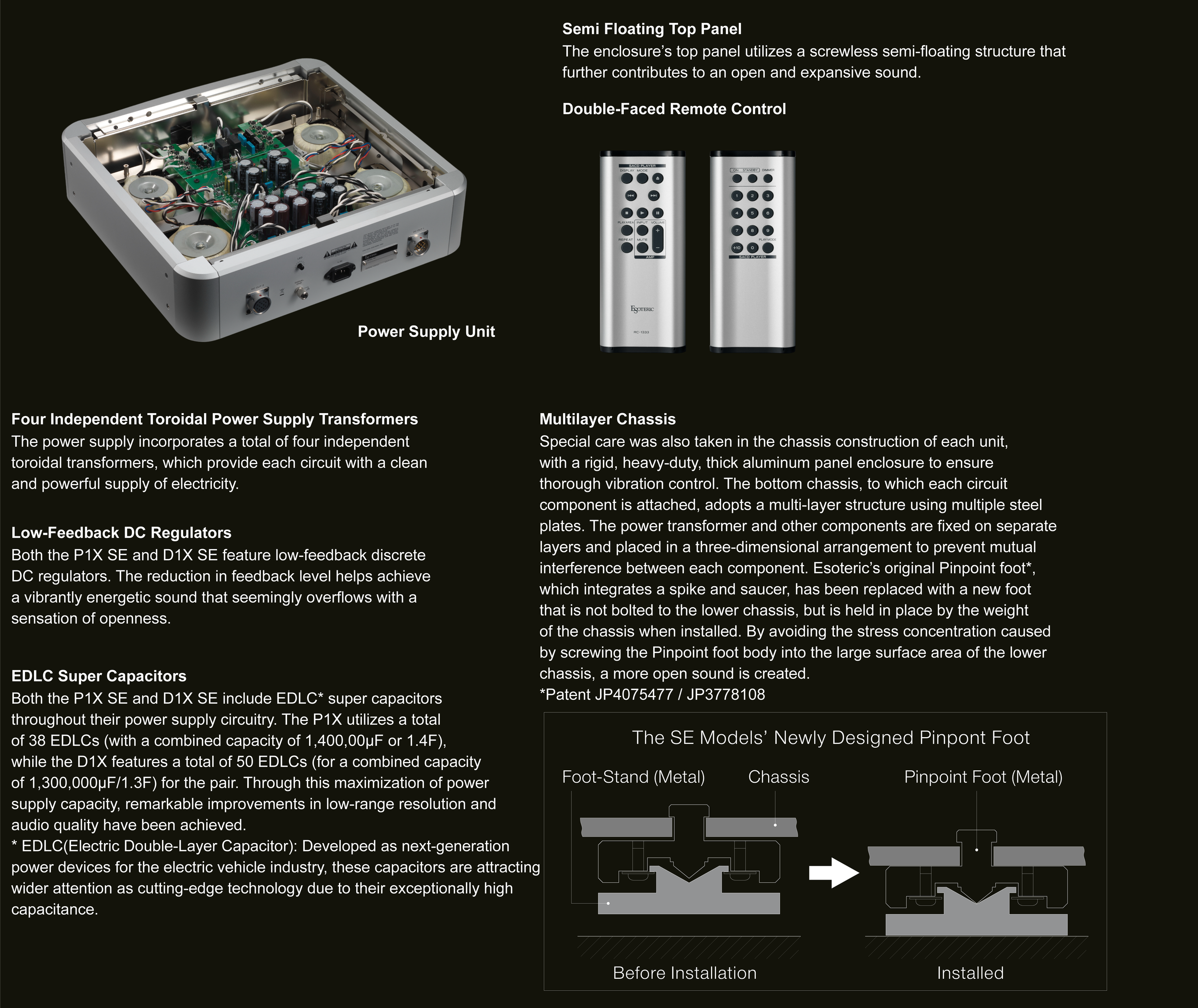

  • Four independent toroidal power supply transformers

  • Semi-floating top panel

  • Redesigned pinpoint foot

  • Double-faced Remote Control With thick aluminum fascia (RC-1333)

* A discrete designed power regulator circuit that minimizes an amount of feedback while stbilizing supplying the power, reaalizes open and wide-spreading sound.

Get notified by email when this product is in stock.

Features

  • ‍ ‍“VRDS-ATLAS” Super Audio CD transport mechanism

  • “ES-Link5” ultra-wide range digital transmission

  • Two chassis configuration (main unit + power supply unit)

  • “Master Sound Discrete Clock for Digital Player” – in-house developed discrete clock module

  • Clock sync function

  • Low-feedback discrete DC regulators*

  • Four independent toroidal power supply transformers

  • Semi-floating top panel

  • Redesigned pinpoint foot

  • Double-faced Remote Control With thick aluminum fascia (RC-1333)

* A discrete designed power regulator circuit that minimizes an amount of feedback while stbilizing supplying the power, reaalizes open and wide-spreading sound.



  • Playable disc types

    Super Audio CD, CD (including CD-R and CD-RW)

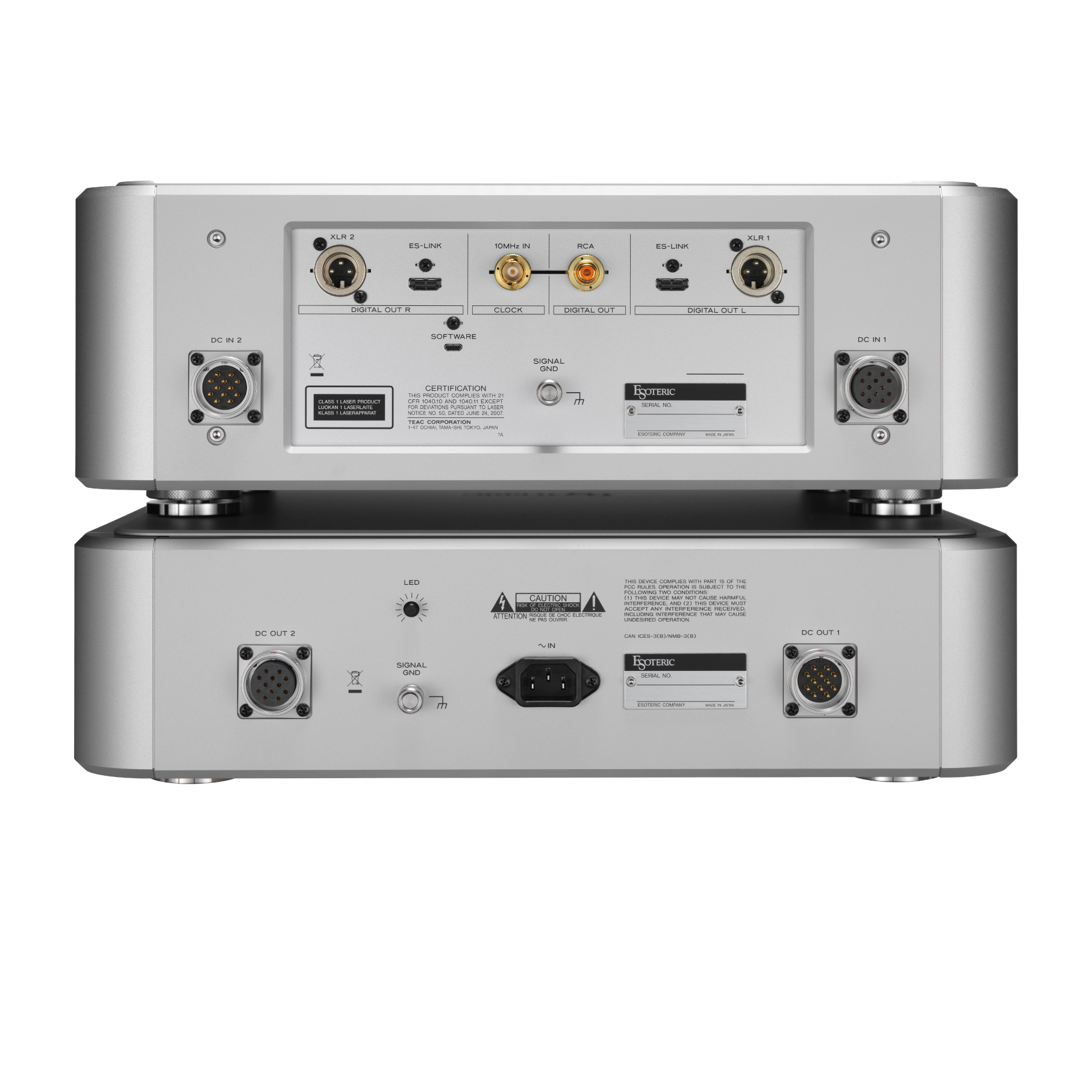

    Digital audio outputs

    ES-LINK

    1

    XLR

    2 pairs(During Dual AES output, one connector each for left and right channels of a stereo pair)

    RCA

    1 pair

    Clock input

    BNC

    1

    Input imepedance

    50Ω

    Input level

    Sine wave 0.5 to 1.0Vrms

    Input frequency

    10MHz (±10ppm)

    General

     Power supply

     AC 220 - 240V, 50/60Hz

    AC 120V, 60Hz

    AC 220V, 60Hz

    Power consumption

    20W

    External dimensions (W×H×D)

    Main unit

    445 × 162 × 449mm
    17-⅝" × 6-½" × 17-¾" (including protrusions)

    Power supply unit

    445 × 132 × 452mm
    17-⅝" × 5-¼" × 17-⅞" (including protrusions)

    Weight

    Main unit

    29kg / 64 lb

    Power supply unit

    24kg / 53 lb

    Included accessories
    Power cord set × 1
    DC power connection cord × 2
    HDMI cable × 1
    Remote control (RC-1333) × 1
    AA batteries × 2
    Felt pads × 8
    Owner's manual × 1
    Warranty card × 1


📥 Catalogue Download
