Network section
Supported file formats
PCM Lossless
FLAC, ALAC, WAV, AIFF, MQA
DSD Lossless
DSF, DSDIFF (DFF) , DoP
Compressed audio
MP3, AAC
ETHERNET port
1 (1000BASE-T)
SFP port
1 (1000BASE-T/-LX (single mode)/-SX (multi mode))
USB DRIVE port USB2.0 or higher recommended
1 (TYPE-A) , 1 (TYPE-C)
Supported file system
FAT32, exFAT, NTFS, Single partation
Maximum current supply
0.5A each
Supported sampling frequencies
PCM
44.1 to 768kHz, 16 / 24 / 32bit
(In addition to 32-bit integer format, files that use 32-bit floating format can also be played)DSD
2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz

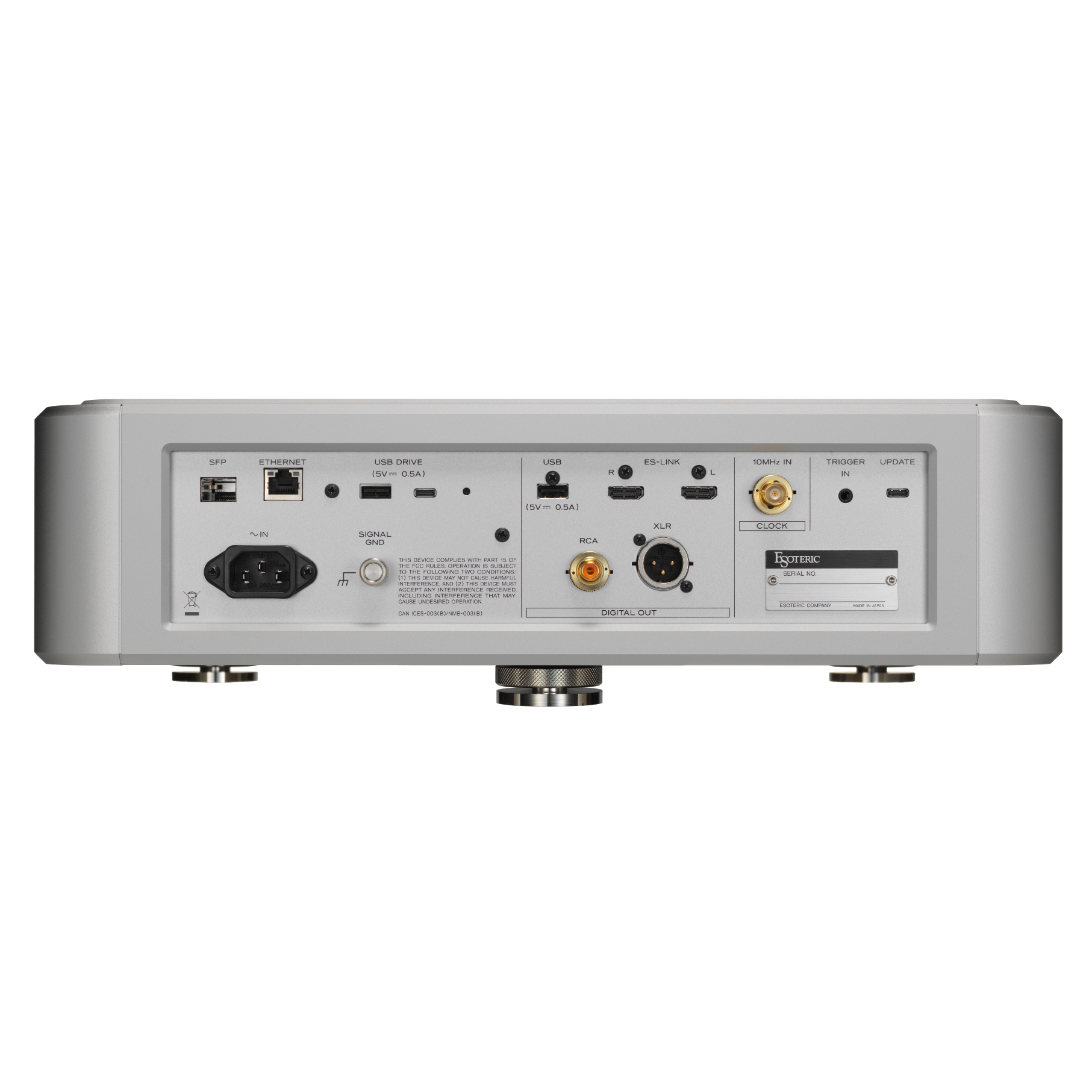

Digital outputs
ES-LINK
× 1(L/R)
USB port (USB2.0)
TYPE-A × 1 (maximum current supply: 0.5A)
XLR (110Ω)
× 1 (PCM 44.1k〜192kHz 16/24bit、DSD 2.8MHz(DoP))
RCA (75Ω)
× 1 (PCM 44.1k〜192kHz 16/24bit、DSD 2.8MHz(DoP))
Clock input
Connector
BNC × 1
Input impedance
50Ω
Frequencies that can be input
10MHz (±10ppm)
Input level
Sine wave
0.5-1.0Vrms
Rectangle wave
TTL levels
External control
Trigger input (TRIGGER IN)
3.5mm mono mini jack × 1
Input level:
12V, 1mA
General
Power supply
AC220–240V,50/60Hz (Europe), AC120V,60Hz (USA/Canada), AC220V,60Hz (Korea)
Power consumption
37 W
Standby power
EU 0.35W, US 0.3W
External dimensions (W×H×D, including protrusions
445 × 132 × 448mm / 17 ⅝” × 5 ¼” × 17 ¾”
Weight
23.1 kg / 50 ⅞ lb
Included accessories
Power cord × 1
HDMI cable × 2
Owner’s manual × 1
Warranty card × 1Specifications and appearance are subject to change without notice.
