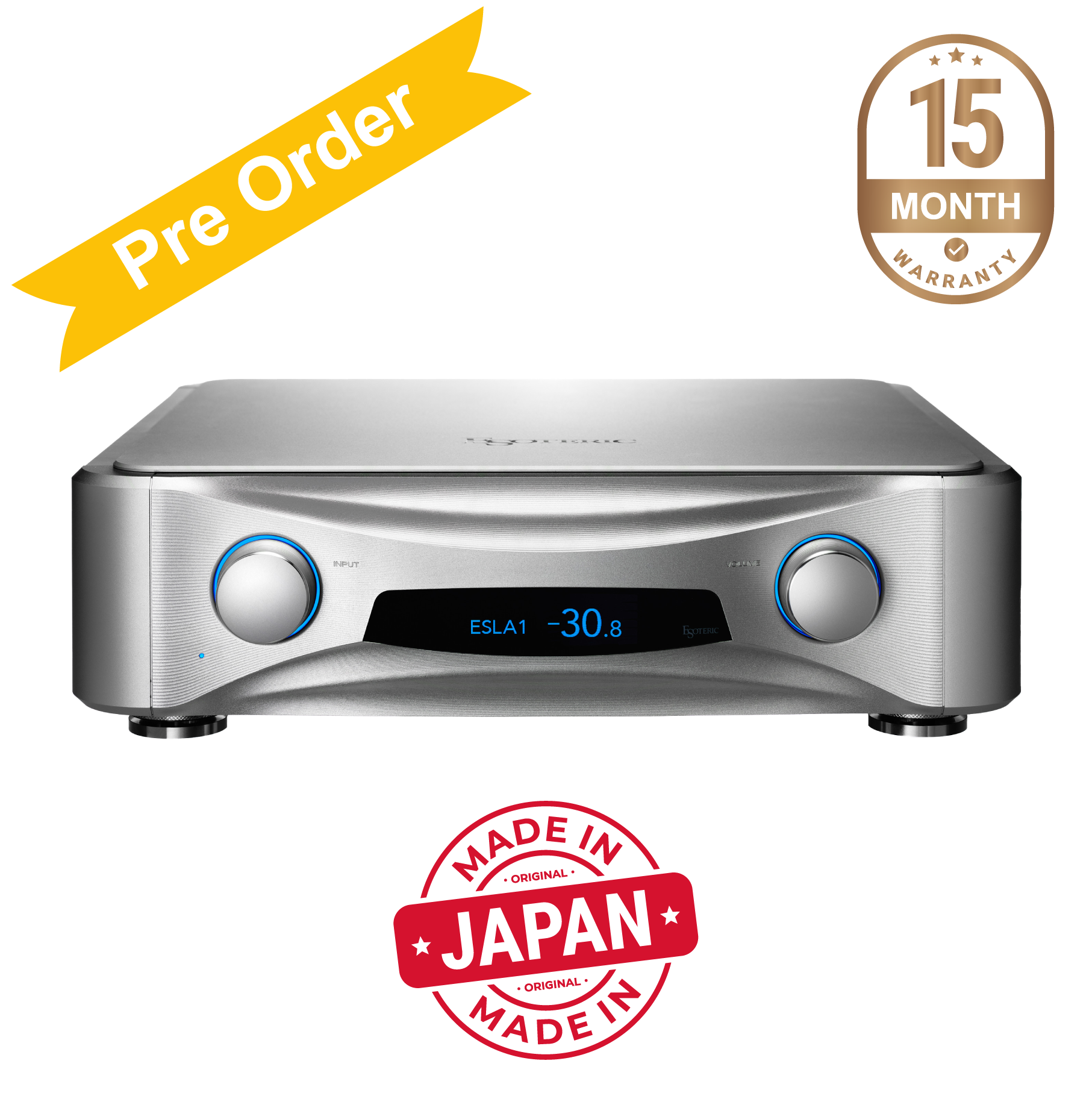

Grandioso C1X Solo Linestage Preamplifier

MYR 126,999.00
Sold Out

Overview

The most important role of the preamplifier is to act as the command center of the audio system, drawing out the performance of each device that makes up the system to the highest level, and providing the listener with an exceptional listening experience that makes them forget the existence of audio system.

The C1X is the flagship model of Esoteric’s preamplifiers. It bears the proud Esoteric trademark “Grandioso”. The Grandioso C1X is a reference standard for the next generation, featuring a carefully designed dual balanced circuit, a complete dual mono configuration, a powerful buffer amplifier and power supply circuit to drive the power amplifiers, and ES-Link Analog current transmission that challenges the limits of fidelity. It is a flagship preamplifier that incorporates all of Esoteric’s wisdom and numerous technological innovations.

The Grandioso C1X “solo” edition is housed in an integrated chassis without changing the internal circuit configuration of the original C1X, as well as its five independent power transformer configurations for each circuit block, achieving an elegant and beautiful size form factor while maintaining the C1X’s signature sound.

Features

  • Full dual monoblock configuration in a one-piece chassis

  • Dual-balanced configuration with 4 circuits per channel for thorough low noise

  • “Ultra-Fidelity Attenuator System” with 1,120 steps @ 0.1dB intervals

  • Discrete amplifier module “IDM-01”

  • 3 inputs and 2 outputs of ES-Link Analog, a unique and proprietary current transmission system

  • 2,000V/µs slew rate current transmission enhanced output buffer circuit

  • Esoteric-HCLD (High Current Line Driver)

  • 2 XLR outputs and 2 ES-Link Analog outputs for a multi-power amplifier system

  • 5 transformers: 4 large toroidal transformers for audio system and 1 R-core transformer for control system

  • Input switching circuit with FET elements ensure great sound and long life

  • Smooth feeling control knob with high precision ball bearings

  • Gain adjustment per input: ±18dB (0.1dB step), and L/R balance adjustment: ±6dB (0.1dB step)

  • AV-thru function that allows the coexistence of AV surround and pure 2-channel (selectable input terminals)

  • Editable source device names on the readout

  • Various functions such as dimmer function, mute function, automatic display off setting, etc.

  • Large volume font for better visibility

  • RS-232C terminal for external control

  • DC trigger input/output for system power on/off

  • Double-face remote control to operate Esoteric source devices (RC-1334)

Get notified by email when this product is in stock.

Overview

The most important role of the preamplifier is to act as the command center of the audio system, drawing out the performance of each device that makes up the system to the highest level, and providing the listener with an exceptional listening experience that makes them forget the existence of audio system.

The C1X is the flagship model of Esoteric’s preamplifiers. It bears the proud Esoteric trademark “Grandioso”. The Grandioso C1X is a reference standard for the next generation, featuring a carefully designed dual balanced circuit, a complete dual mono configuration, a powerful buffer amplifier and power supply circuit to drive the power amplifiers, and ES-Link Analog current transmission that challenges the limits of fidelity. It is a flagship preamplifier that incorporates all of Esoteric’s wisdom and numerous technological innovations.

The Grandioso C1X “solo” edition is housed in an integrated chassis without changing the internal circuit configuration of the original C1X, as well as its five independent power transformer configurations for each circuit block, achieving an elegant and beautiful size form factor while maintaining the C1X’s signature sound.

Features

  • Full dual monoblock configuration in a one-piece chassis

  • Dual-balanced configuration with 4 circuits per channel for thorough low noise

  • “Ultra-Fidelity Attenuator System” with 1,120 steps @ 0.1dB intervals

  • Discrete amplifier module “IDM-01”

  • 3 inputs and 2 outputs of ES-Link Analog, a unique and proprietary current transmission system

  • 2,000V/µs slew rate current transmission enhanced output buffer circuit

  • Esoteric-HCLD (High Current Line Driver)

  • 2 XLR outputs and 2 ES-Link Analog outputs for a multi-power amplifier system

  • 5 transformers: 4 large toroidal transformers for audio system and 1 R-core transformer for control system

  • Input switching circuit with FET elements ensure great sound and long life

  • Smooth feeling control knob with high precision ball bearings

  • Gain adjustment per input: ±18dB (0.1dB step), and L/R balance adjustment: ±6dB (0.1dB step)

  • AV-thru function that allows the coexistence of AV surround and pure 2-channel (selectable input terminals)

  • Editable source device names on the readout

  • Various functions such as dimmer function, mute function, automatic display off setting, etc.

  • Large volume font for better visibility

  • RS-232C terminal for external control

  • DC trigger input/output for system power on/off

  • Double-face remote control to operate Esoteric source devices (RC-1334)



  • Input Impedance

    500kΩ

    Input Sensitvity

    500mV (at rated output)

    Analog Audio Outputs

    XLR

    × 2 pairs

    Output Inpedance

    30Ω

    Rated Output

    2V

    Maximum Output level

    17V (1kHz, 0.003%)

    ES-Link Analog

    × 2 pairs

    Output Impedance

    30Ω

    Extrenal Control

    RS-232C

    Connector

    S-sub 9pin × 1

    Trigger Input

    Connector

    3.5mm Monaural mini jack × 1

    Input Level

    12V, 2mA

    Trigger Output

    Connector

    3.5mm Monaural mini jack × 2

    Output Level

    12V, Total 100mA maximum

    General

    Power

    AC 120V, 60Hz

    AC 220-240V, 50Hz

    Power Consumption

    22W

    Standby Power

    0.3W when RS-232C Remote control is disabled, 1.0W when enabled

    Overall Dimensions (W×H×D)

    445 × 132 × 449mm (including protrusions)

    Weight

    27.5kg

    Included Accessories

    Power cord × 1
    Remote control (RC-1334) × 1
    AA batteries × 2
    Felt pads × 4
    Owner's manual × 1
    Warranty card × 1

    Audio performance

    Frequency Response

    1Hz to 150kHz (–3dB, XLR)

    S/N Ratio

    120dB (2V input, IHF-A, XLR)

    Total Harmonic Distortion

    0.00035%

    Gain

    +12dB

    * Design and specification are subject to change without notice.

    Analog audio inputs

    XLR/ESL-A

    3 pairs

    Input impedance

    50kΩ

    Input sensitivity

    500mV (at reted output)

    Maximum input level

    12V

    RCA

    2 pairs

    Input impedance

    68kΩ

    Input sensitvity

    500mV (at rate output)

    Maximum input level

    12V

    Analog audio outputs

    XLR

    2 pairs

    Output impedance

    30Ω

    Rate output

    2V

    Maximum output level

    17V

    ESL-A

    2 pairs * Option: Changing the ESL-A terminals with RCA terminals.

    Output impedance

    30Ω

    External Control

    RS-232C

    Terminal

    D-sub 9-pin × 1

    TRIGGER IN

    Terminal

    3.5mm Monaural Mini jack × 1

    Input Level

    12V, 2mA

    TRIGGER OUT

    Terminal

    3.5mm Monaural Mini jack × 2

    Output Level

    12V, 100mA (total)

    General

    Power supply

    AC 120V, 60Hz

    AC 220-240V, 50/60Hz

    Power consumption

    15W (L), 15W (R)

    External dimensions (W×H×D)

    Main unit

    445 × 132 × 449mm
    17-⅝" × 5-¼" × 17-⅝" (including protrusions)

    Power unit

    445 × 132 × 452mm
    17-⅝" × 5-¼" × 17-⅞" (including protrusions)

    Weight

    Main unit

    20.2kg / 44.6 lb

    Power unit

    29.0kg / 64 lb

    Included accessories

    Power cords × 2
    DC power connection cords × 2
    Remote control (RC-1334) × 1
    AA batteries × 2
    Felt pads × 8
    Owner's manual × 1
    Warranty card × 1

    Audio performance

    Frequency response

    1Hz to 150kHz (–3dB, XLR IN, XLR OUT)

    S/N ratio

    120dB (2V input, A weight, XLR IN, XLR OUT)

    Total harmonic distortion

    0.00035% (XLR IN, XLR OUT)

    Gain

    +12dB (XLR IN, XLR OUT)

    • This product is available in three different power supply variations, as shown in the chart above. Make sure that the voltage shown on the rear panel matches the AC line voltage in your area.

    • The shape of the AC inlet and plug of the supplied power cord depends on the voltage rating and destination country.

    • Design and specification are subject to change without notice.

    • Weight and dimensions are approximate.
