Grandioso C1X Linestage Preamplifier

MYR 228,999.00
Sold Out

Overview

The Preamplifier Revolution


For the control center of Esoteric’s flagship Grandioso X edition, our engineers looked ahead to what lies beyond what a preamplifier should be.
In order to surpass the Grandioso C1, winner of countless awards following its 2014 introduction, we set out to thoroughly reimagine the volume control system – often considered to be the fundamental core of a preamplifier – thereby dramatically improving its precision and clarity of sound to become the standard for a new era.
Esoteric’s accumulated engineering knowledge and expertise was focused on the creation of a new preamplifier that meets the desires of the consummate audiophile.
– The new Grandioso C1X

Get notified by email when this product is in stock.

Overview

The Preamplifier Revolution


For the control center of Esoteric’s flagship Grandioso X edition, our engineers looked ahead to what lies beyond what a preamplifier should be.
In order to surpass the Grandioso C1, winner of countless awards following its 2014 introduction, we set out to thoroughly reimagine the volume control system – often considered to be the fundamental core of a preamplifier – thereby dramatically improving its precision and clarity of sound to become the standard for a new era.
Esoteric’s accumulated engineering knowledge and expertise was focused on the creation of a new preamplifier that meets the desires of the consummate audiophile.
– The new Grandioso C1X



  • Analog audio inputs

    XLR/ESL-A

    3 pairs

    Input impedance

    50kΩ

    Input sensitivity

    500mV (at reted output)

    Maximum input level

    12V

    RCA

    2 pairs

    Input impedance

    68kΩ

    Input sensitivity

    500mV (at rate output)

    Maximum input level

    12V

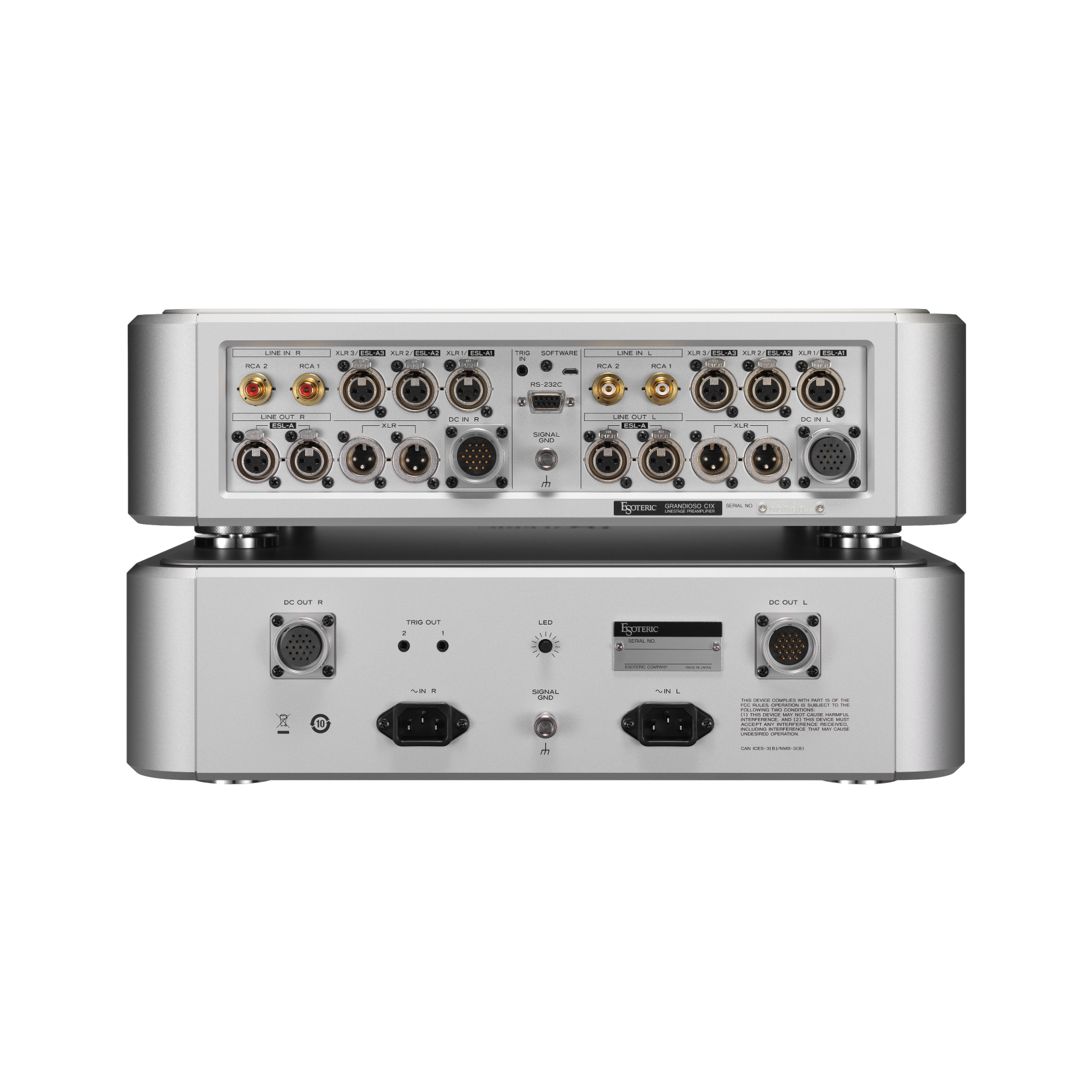

    Analog audio outputs

    XLR

    2 pairs

    Output impedance
    30Ω

    Rate output
    2V

    Maximum output level
    17V

    ESL-A
    2 pairs * Option: Changing the ESL-A terminals with RCA terminals.

    Output impedance
    30Ω


    External Control
    RS-232C


    Terminal
    D-sub 9-pin × 1

    TRIGGER IN
    Terminal
    3.5mm Monaural Mini jack × 1

    Input Level
    12V, 2mA

    TRIGGER OUT

    Terminal
    3.5mm Monaural Mini jack × 2

    Output Level
    12V, 100mA (total)

    General
    Power supply
    AC 120V, 60Hz
    AC 220-240V, 50/60Hz

    Power consumption
    15W (L), 15W (R)

    External dimensions (W×H×D)
    Main unit
    445 × 132 × 449mm
    17-⅝" × 5-¼" × 17-⅝" (including protrusions)

    Power unit
    445 × 132 × 452mm
    17-⅝" × 5-¼" × 17-⅞" (including protrusions)

    Weight
    Main unit
    20.2kg / 44.6 lb

    Power unit
    29.0kg / 64 lb

    Included accessories
    Power cords × 2
    DC power connection cords × 2
    Remote control (RC-1334) × 1
    AA batteries × 2
    Felt pads × 8
    Owner's manual × 1
    Warranty card × 1


📥 Catalogue Download
