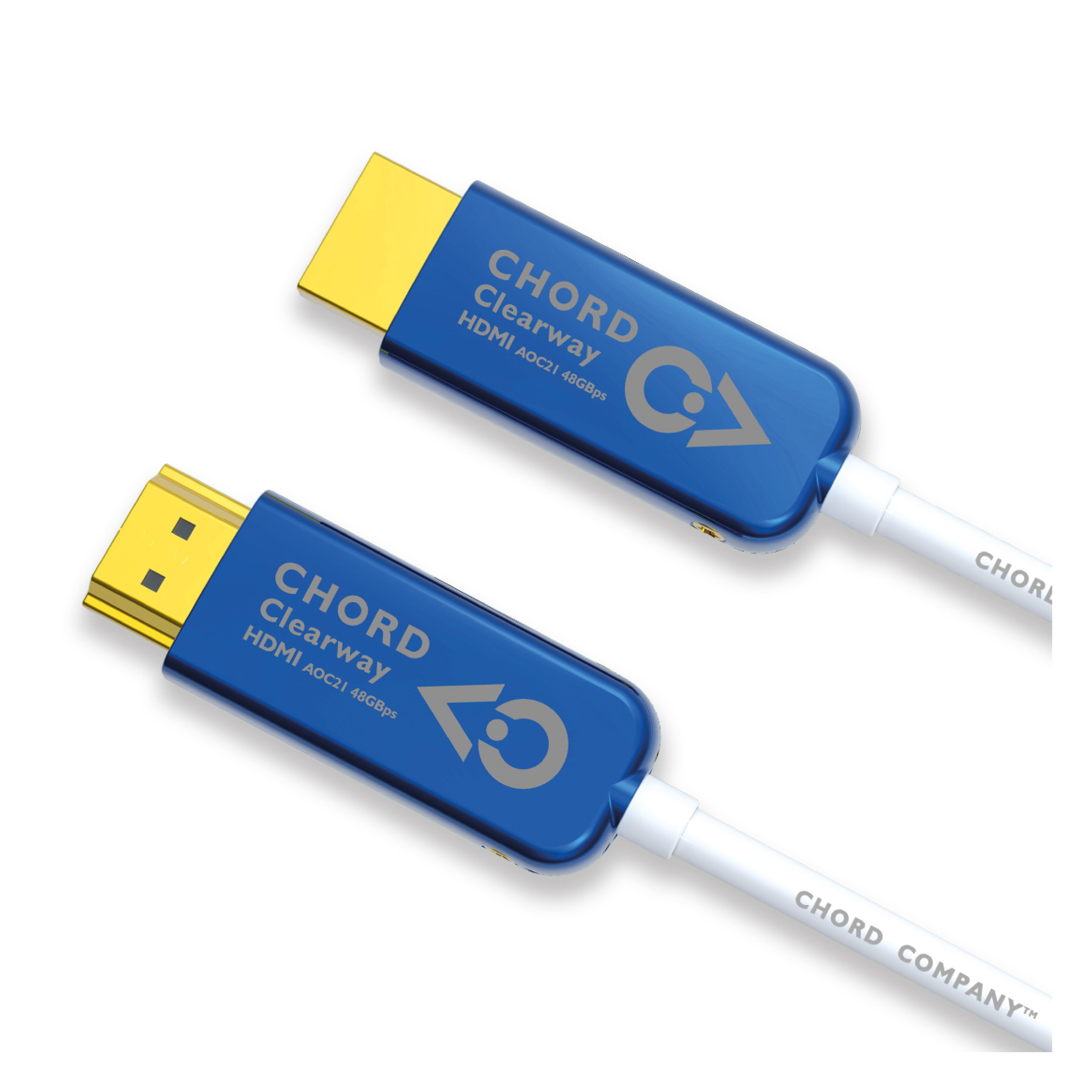

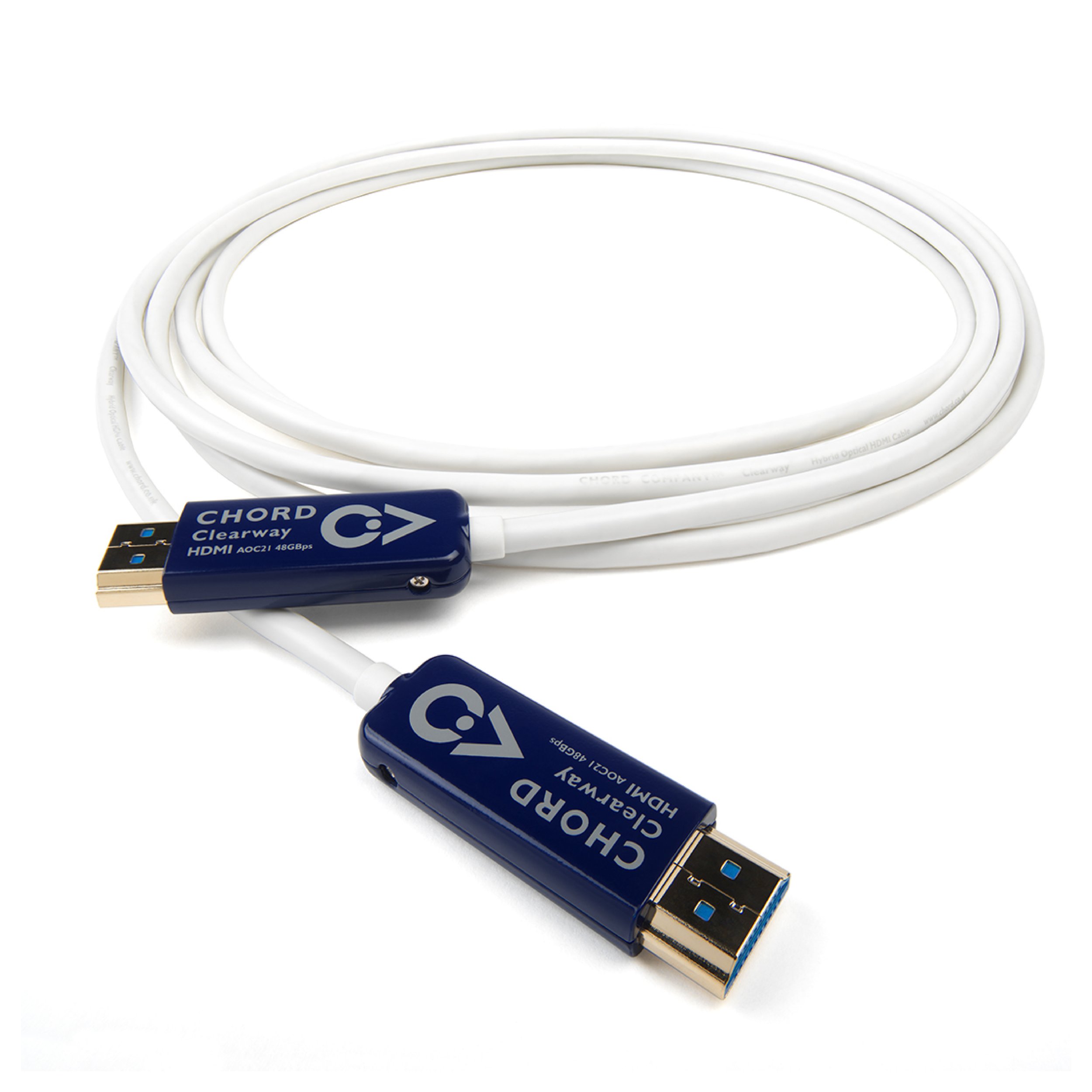

Clearway HDMI AOC uses a high-quality chipset at both ends of the cable and the highest OM3 grade (over 10 Gigabit bandwidth) glass fibres rather than the typical OM2 (up to 1 Gigabit bandwidth).
Alongside the full 4K/8K HDR picture quality, this ultra high-speed cable benefits from improved audio performance and is heavily shielded against HF noise.
Clearway HDMI AOC benefits from a 48GBps bandwidth with a resolution of 10K AT 30Hz, 8k at 60hz or 4k at 120hz. It supports Dynamic HDR, HDCP2.3, eARC, 3D and all HDMI audio formats.
Clearway HDMI AOC supports:
Source-based Tone Mapping (SBTM)
Variable Refresh Rate (VRR)
Auto Low Latency Mode (ALLM)
Quick Frame Transport (QFT)
Quick Media Switching (QMS)
Technical Specifications
Bandwidth UHS 48GBps+
Resolution 8K/60Hz or 4K/120Hz
Dynamic range Dynamic HDR
Operating distance 20m
Primary conductors 4 fibre+7 wire
Insulation Foam PE
Shielding Dual AL foil
Cable Jacket PVC
HDMI connector shell Gold-plated copper
HDMI connector pins 19-pin gold-plated copper
Termination Hand soldering and fabrication
HDMI connector backshell Zinc alloy
Cable diameter 4.8mm
