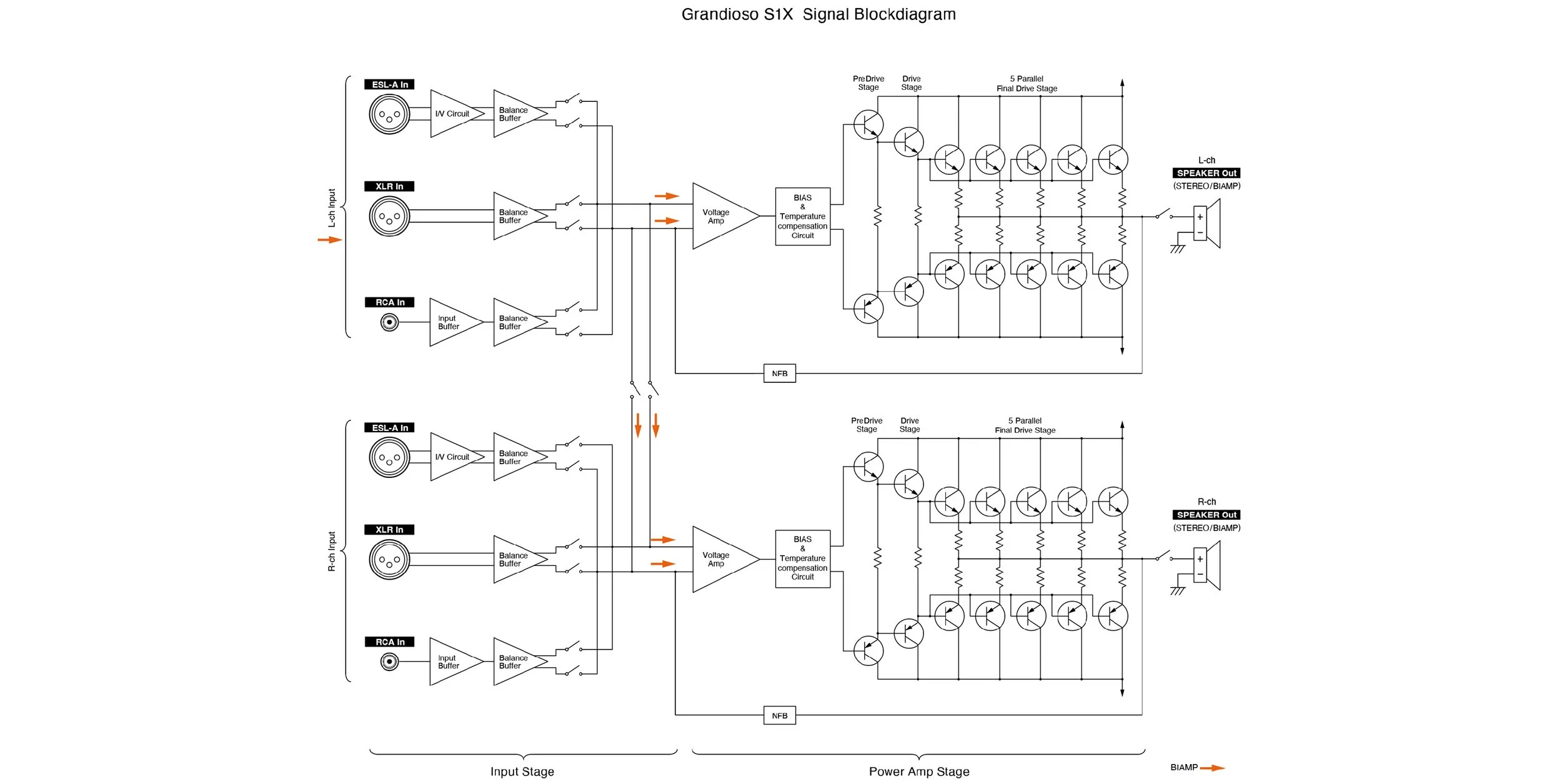

Newly designed drive stage with 5-parallel push-pull drive by large bipolar transistors
Pure Class-A operating range of 50W/8ohm provides a full musical expression that combines precision and dynamism
“ES-Link Analog” transmission pushes the limits of fidelity between preamp and amplifier
Superior power linearity for unparalleled dynamics (50W/8Ω to 100W/4Ω)
Large toroidal-core power transformer that is extremely responsive to dynamic current supply changes
3-transformer configuration with independent power transformers for the pre-drive stage, main drive stage, and control system
Channel independent high-capacitance Grandioso custom capacitors (10,000μF × 6/ch)
Pure copper busbars, ultra-thick wiring, and shortest pattern connections significantly reduce internal impedance
Balanced audio connections in each circuit block to ensure low noise
High quality parts such as FET switch for input switching, discrete amplifier module IDM-01, etc.
Stereo mode and bi-amp mode for further system upgradability with multiple units
Enlarged chassis to M1X size with newly designed Class-A construction

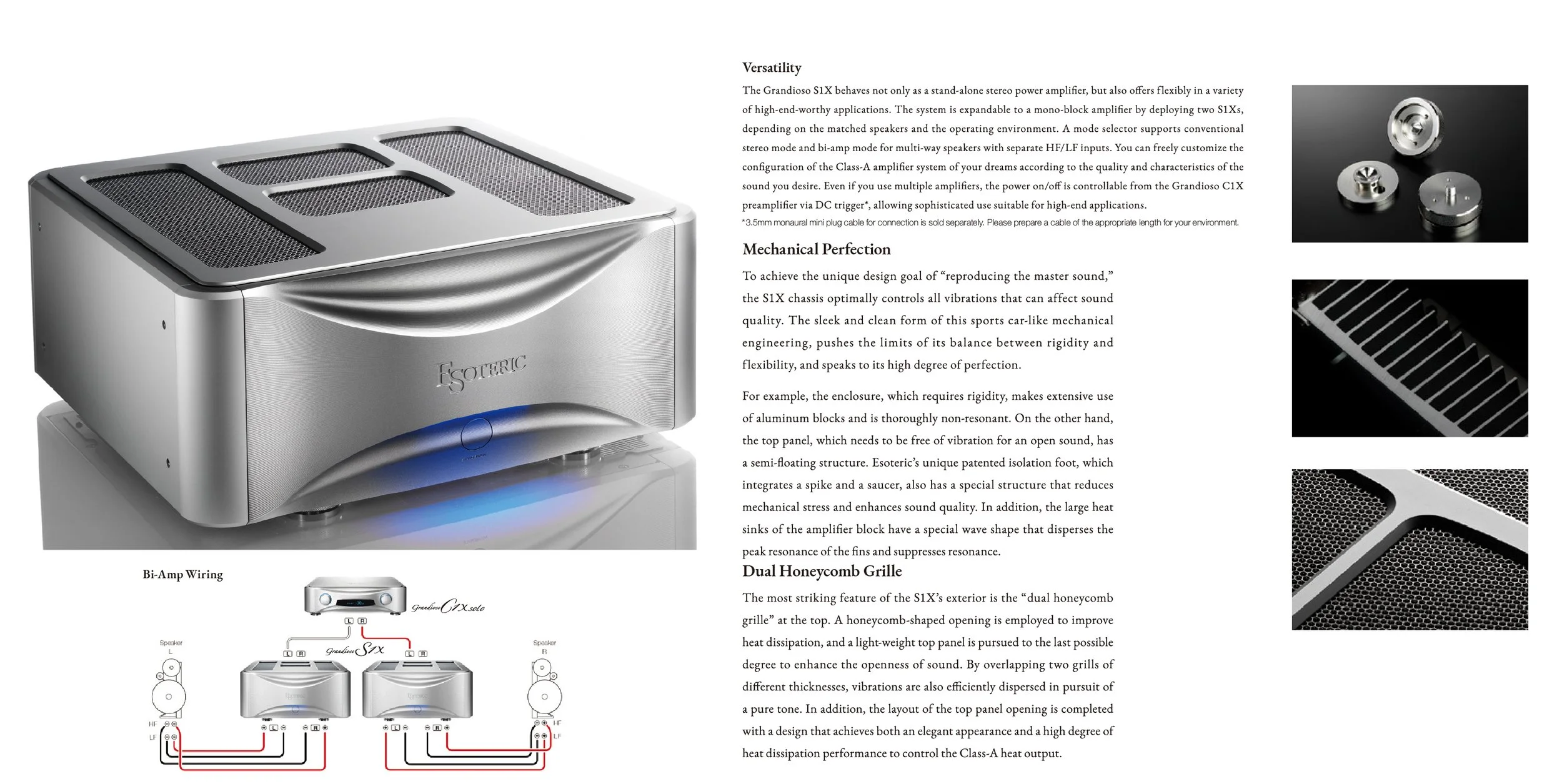

Chassis design optimizes internal vibration control by thoroughly pursuing a balance between “rigidity” and “flexibility”
Dual honeycomb grille and semi-floating top panel for heat dissipation and open sound characteristics
Pinpoint isolation foot with unique structure to reduce mechanical stress
Unique wave-shaped heat sink to reduce peak resonance
DC trigger input for power on/off
